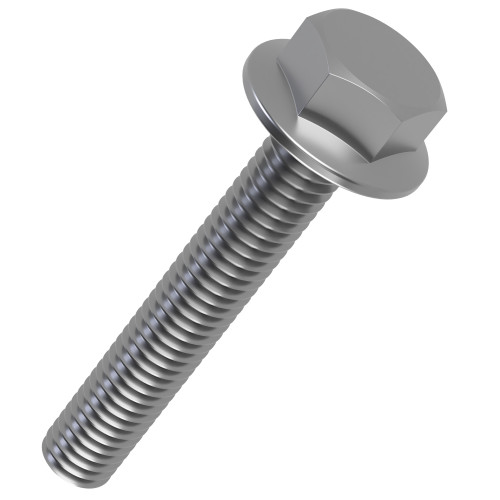

M5 x 20mm Hex (Non Serrated) Flange Bolt (DIN 6921) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.40 | £0.48 |
| 10 - 24 | £0.33 | £0.39 |
| 25 - 49 | £0.24 | £0.29 |
| 50 - 99 | £0.20 | £0.24 |
| 100 - 499 | £0.18 | £0.22 |
| 500 - 999 | £0.16 | £0.19 |
| 1000 + | £0.12 | £0.15 |

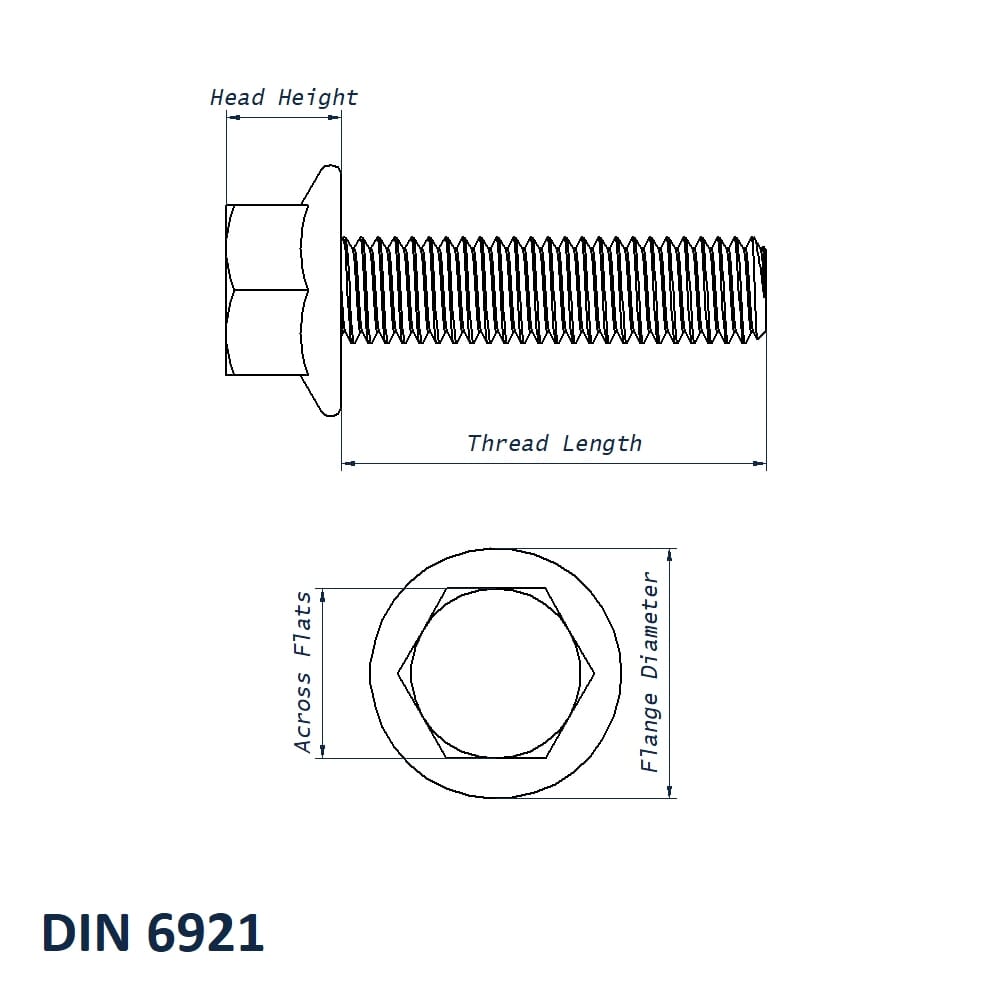

Product Specification
| Thread Size | M5 |
| Thread Length | 20mm |
| Pitch | 0.8mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 8mm |
| Head Height | 5.4mm |
| Flange Diameter | 11.8mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M5 x 20mm Flanged Hex Head Bolt (DIN 6921) | A2-70 Stainless Steel
This M5 x 20mm DIN 6921 flanged hex head bolt offers a compact fixing for mounting internal brackets, rails and panels inside equipment cabinets. The A2-70 Stainless Steel body, 0.8mm pitch and 11.8mm flange diameter make it suitable for plant equipment, workshop builds and stainless steel assemblies.
The flange beneath the hex head increases the bearing area, making the fixing useful for equipment that sees vibration, routine servicing or repeated adjustment. The A2-70 Stainless Steel finish should be matched to the working environment before installation.
Common Applications
- Electrical Cabinets: mounting internal brackets, rails and panels inside equipment cabinets.
- Panel Mounting: reducing the need for loose washers on flat surfaces.
- Workshop Use: keeps hardware compact where access is limited around a fixing point.
- Trade Maintenance: supporting quick specification from thread size and length.
M5 x 20mm Flanged Hex Head Bolt Dimensions
- Thread Size: M5
- Thread Length: 20mm
- Pitch: 0.8mm
- Across Flats: 8mm
- Head Height: 5.4mm
- Flange Diameter: 11.8mm
- Material: A2-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Flanged Hex Head
Specification Notes
For vibration-prone assemblies, confirm the mating nut and joint design are suitable for the working load. The flange helps spread pressure but the correct mating component is still important for safe installation.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
