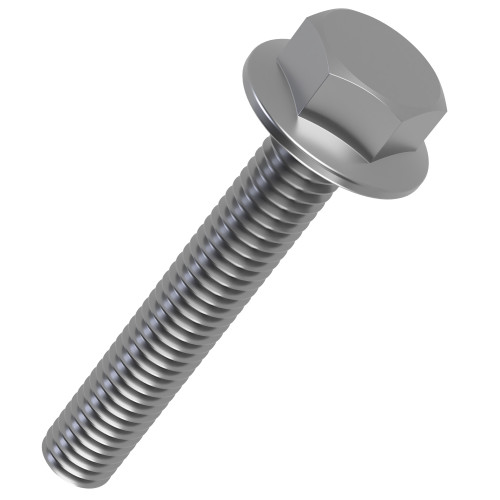

M5 x 12mm Hex (Non Serrated) Flange Bolt (DIN 6921) | Marine Grade A4-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.51 | £0.61 |
| 10 - 24 | £0.41 | £0.49 |
| 25 - 49 | £0.30 | £0.36 |
| 50 - 99 | £0.25 | £0.30 |
| 100 - 499 | £0.23 | £0.27 |
| 500 - 999 | £0.20 | £0.24 |
| 1000 + | £0.15 | £0.18 |
£0.61 / each
.png)
Product Specification
| Thread Size | M5 |
| Thread Length | 12mm |
| Pitch | 0.8mm |
| Material | A4-70 Stainless Steel |
| Across Flats | 8mm |
| Head Height | 5.4mm |
| Flange Diameter | 11.8mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M5 x 12mm Flanged Hex Head Bolt (DIN 6921) | A4-70 Stainless Steel
The M5 x 12mm A4-70 Stainless Steel flanged hex head bolt fits applications involving inspection stations where a standard hex bolt would need extra load spreading. Its 12mm thread length, 0.8mm pitch and 5.4mm head height make it easy to match with existing DIN 6921 fastener specifications.
The hex head and flange combination makes installation straightforward so the fastener can seat cleanly against flat or slotted components. Its 5.4mm head height and 11.8mm flange diameter should be checked against the available clearance before final selection.
Common Applications
- Inspection Stations: assembling inspection benches, camera mounts and measuring station frames.
- Frame Assembly: supports stable fastening while keeping the joint face tidy.
- Service Panels: creating a neat fixing for removable covers.
- General Engineering: standardising parts around the DIN 6921 format.
M5 x 12mm Flanged Hex Head Bolt Dimensions
- Thread Size: M5
- Thread Length: 12mm
- Pitch: 0.8mm
- Across Flats: 8mm
- Head Height: 5.4mm
- Flange Diameter: 11.8mm
- Material: A4-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Flanged Hex Head
Specification Notes
Use the across flats value to confirm spanner or socket access before installing inside frames or enclosed machinery. The flange helps spread pressure but the correct mating component is still important for safe installation.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
