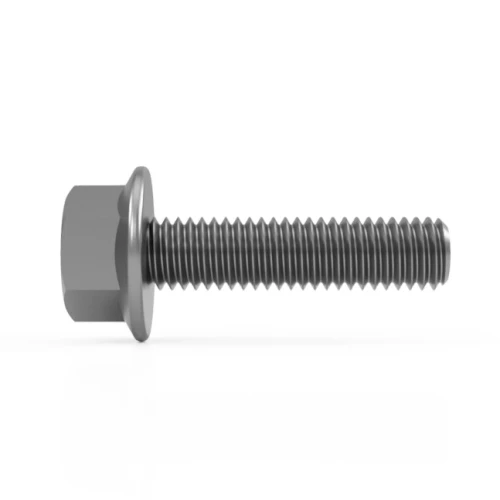

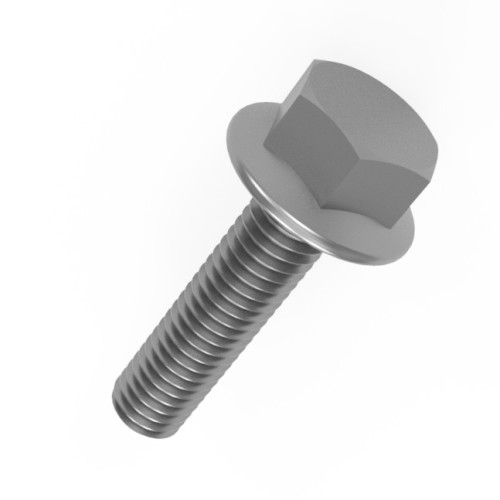

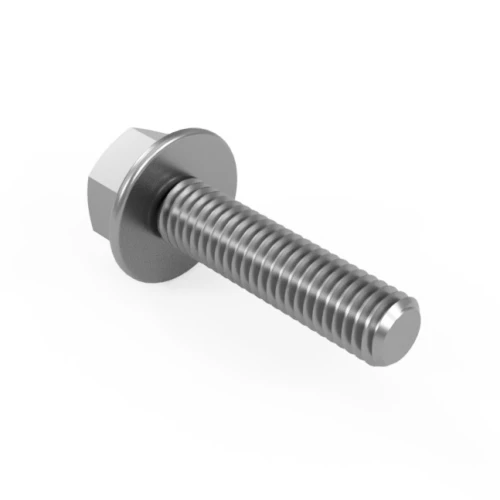

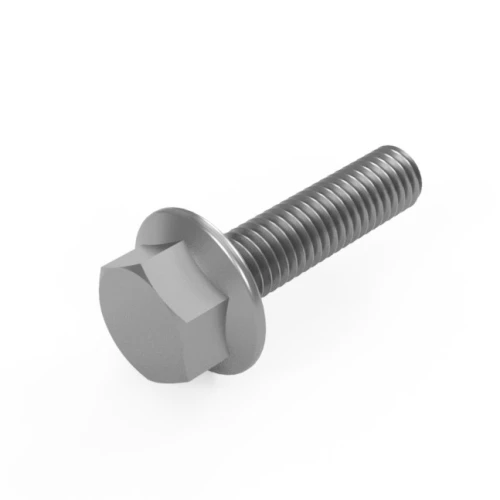

M6 x 12mm Hex (Non Serrated) Flange Bolt (DIN 6921) | Marine Grade A4-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.80 | £0.96 |
| 10 - 24 | £0.64 | £0.77 |
| 25 - 49 | £0.48 | £0.58 |
| 50 - 99 | £0.40 | £0.48 |
| 100 - 499 | £0.36 | £0.43 |
| 500 - 999 | £0.33 | £0.39 |
| 1000 + | £0.24 | £0.29 |
Product Specification
| Thread Size | M6 |
| Thread Length | 12mm |
| Pitch | 1mm |
| Material | A4-70 Stainless Steel |
| Across Flats | 10mm |
| Head Height | 6.6mm |
| Flange Diameter | 14.2mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M6 x 12mm Flanged Hex Head Bolt (DIN 6921) | A4-70 Stainless Steel
For automotive fixtures, this M6 x 12mm flanged hex head bolt gives a tidy DIN 6921 fixing with a broad 14.2mm flange under the head. The A4-70 Stainless Steel construction offers marine grade corrosion resistance for exterior, coastal and washdown environments.
The DIN 6921 form combines a hex drive with a wider seating face, helping to spread clamp load and reduce surface marking on brackets, plates or fabricated parts. The A4-70 stainless steel material gives 70 grade stainless performance while the DIN 6921 specification keeps the fastener compatible with standard metric assemblies.
Common Applications
- Automotive Fixtures: fixing brackets, housings and non-critical automotive equipment.
- Machinery Builds: keeps assemblies compact by combining a hex head with a broad flange face.
- Maintenance Work: replacing worn fixings during planned servicing.
- Fabrication: creating repeatable DIN 6921 joints across metal assemblies.

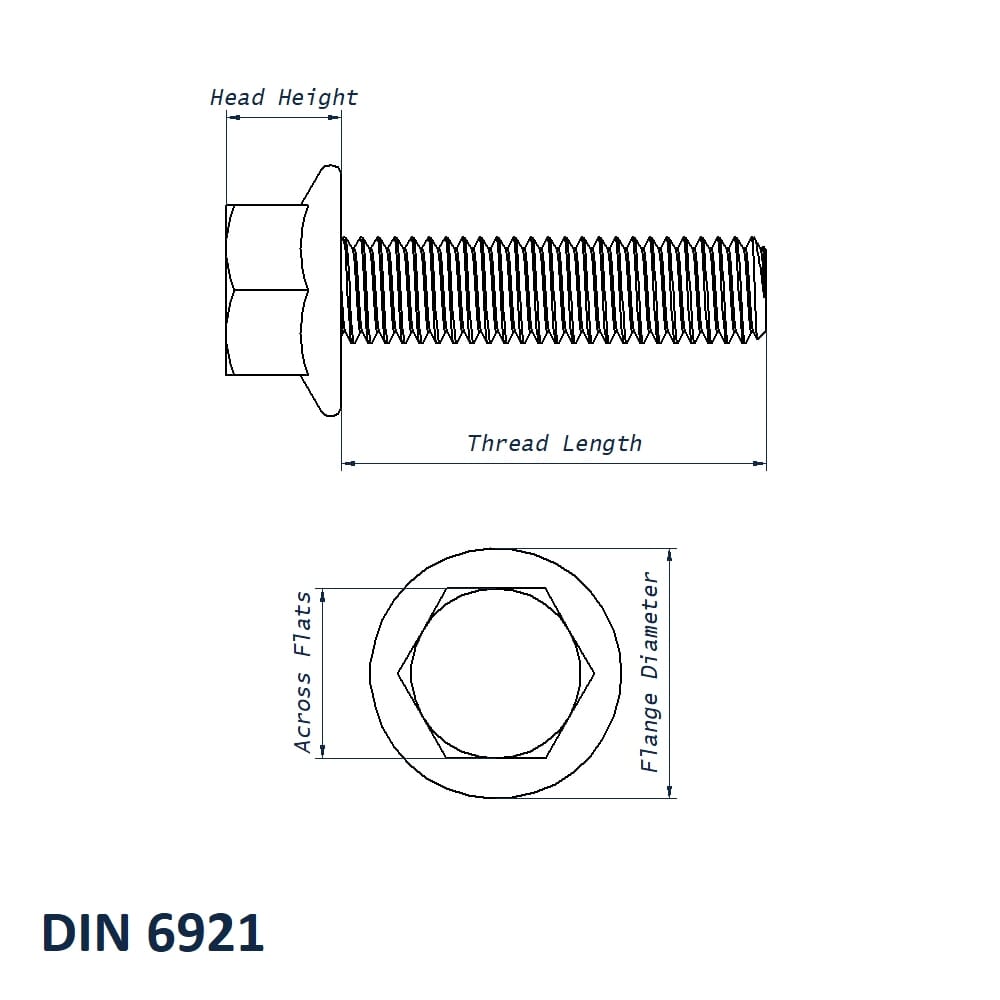

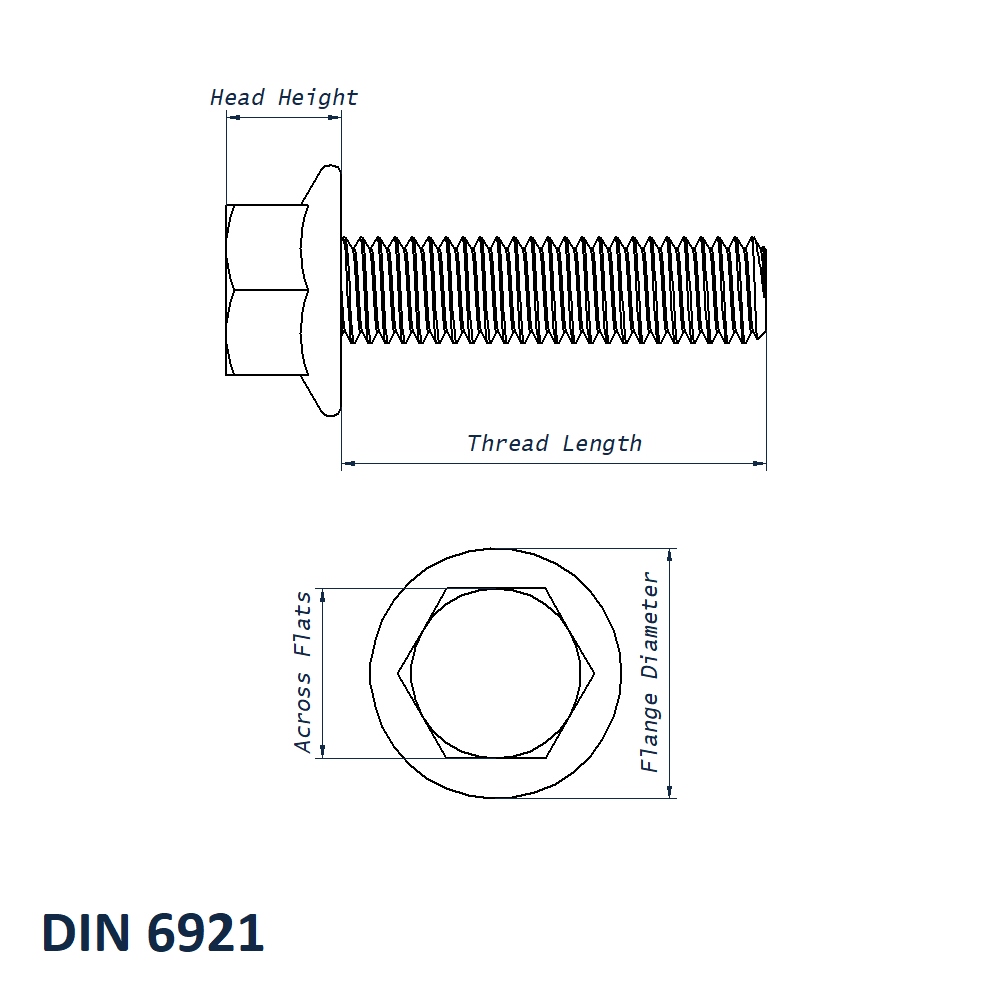

M6 x 12mm Flanged Hex Head Bolt Dimensions
- Thread Size: M6
- Thread Length: 12mm
- Pitch: 1mm
- Across Flats: 10mm
- Head Height: 6.6mm
- Flange Diameter: 14.2mm
- Material: A4-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Flanged Hex Head
Specification Notes
Use the across flats value to confirm spanner or socket access before installing inside frames or enclosed machinery. The flange helps spread pressure but the correct mating component is still important for safe installation.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
