M6 x 12mm Hex (Non Serrated) Flange Bolt (DIN 6921) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.51 | £0.61 |
| 10 - 24 | £0.41 | £0.49 |
| 25 - 49 | £0.31 | £0.37 |
| 50 - 99 | £0.26 | £0.31 |
| 100 - 499 | £0.23 | £0.27 |
| 500 - 999 | £0.20 | £0.24 |
| 1000 + | £0.15 | £0.18 |
Product Specification
| Thread Size | M6 |
| Thread Length | 12mm |
| Pitch | 1mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 10mm |
| Head Height | 6.6mm |
| Flange Diameter | 14.2mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M6 x 12mm Flanged Hex Head Bolt (DIN 6921) | A2-70 Stainless Steel
The M6 x 12mm A2-70 Stainless Steel flanged hex head bolt provides a strong fastening option for conveyor frames where a standard hex bolt would need extra load spreading. Its 12mm thread length, 1mm pitch and 6.6mm head height make it easy to match with existing DIN 6921 fastener specifications.
This one-piece flange design reduces loose hardware so the fastener can seat cleanly against flat or slotted components. Its 6.6mm head height and 14.2mm flange diameter should be checked against the available clearance before final selection.
Common Applications
- Conveyor Frames: joining brackets on conveyor frames and handling systems.
- Frame Assembly: supports firm alignment where vibration or movement can affect standard fasteners.
- Service Panels: creating a neat fixing for removable covers.
- General Engineering: standardising parts around the DIN 6921 format.

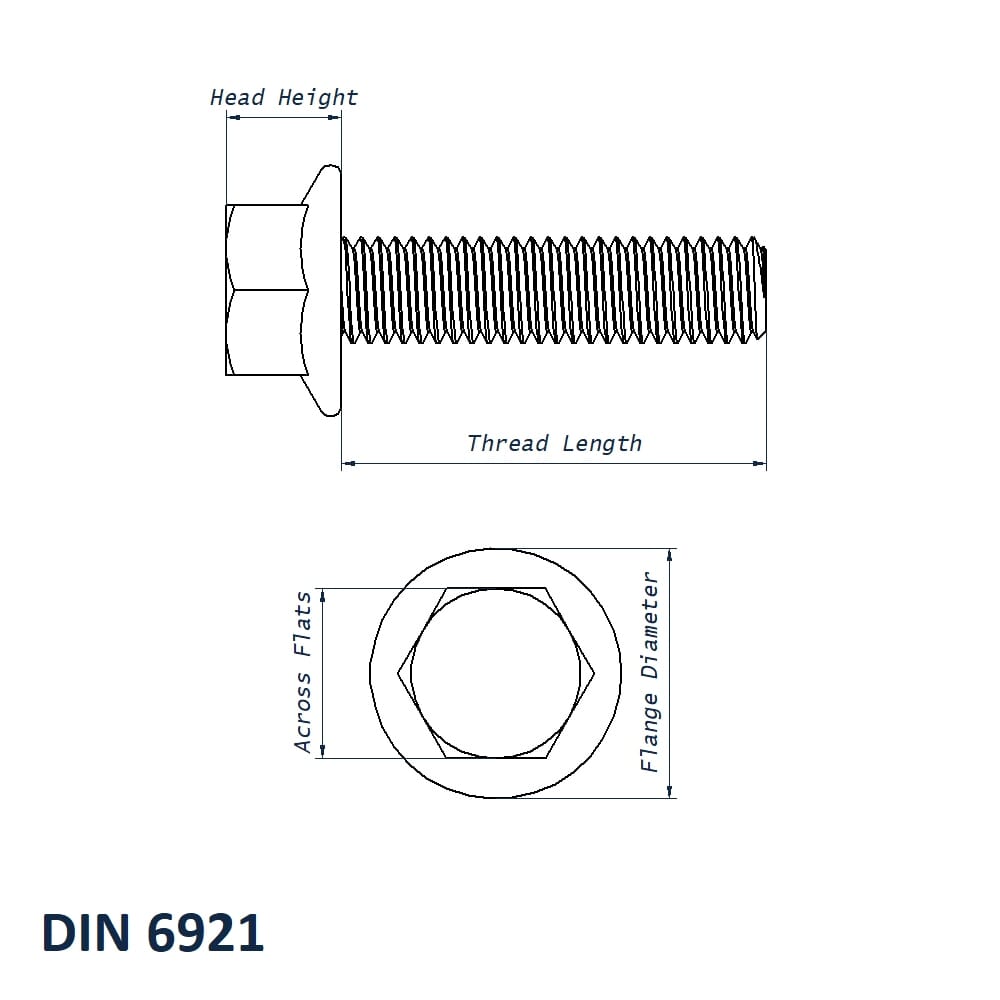

M6 x 12mm Flanged Hex Head Bolt Dimensions
- Thread Size: M6
- Thread Length: 12mm
- Pitch: 1mm
- Across Flats: 10mm
- Head Height: 6.6mm
- Flange Diameter: 14.2mm
- Material: A2-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Flanged Hex Head
Buying Guidance
Confirm the flange diameter if the fixing surface is narrow, slotted or close to an edge. For matched fastening assemblies, also check the washer and nut material so the joint performs consistently in service.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
