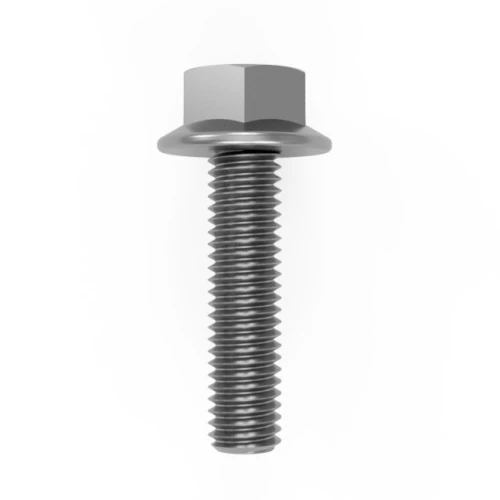

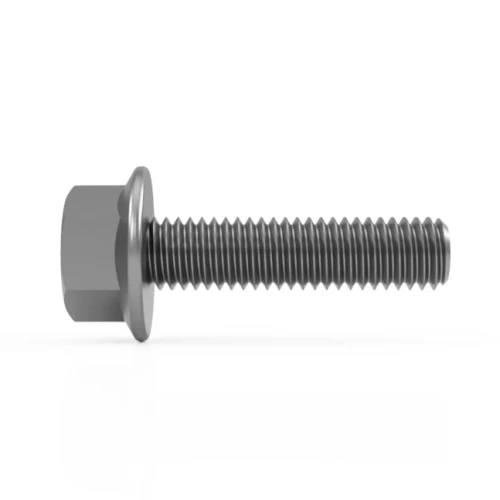

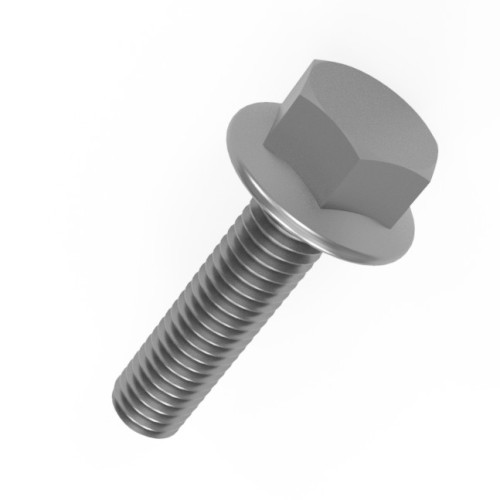

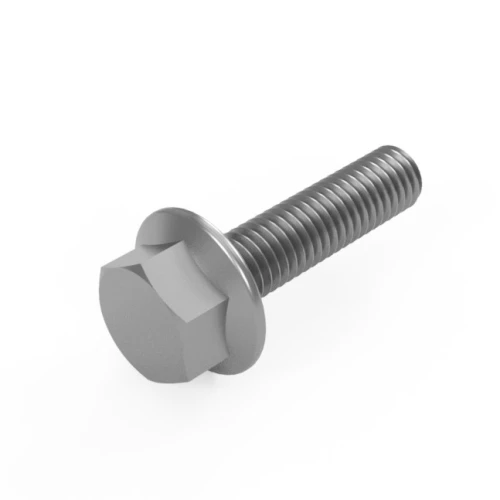

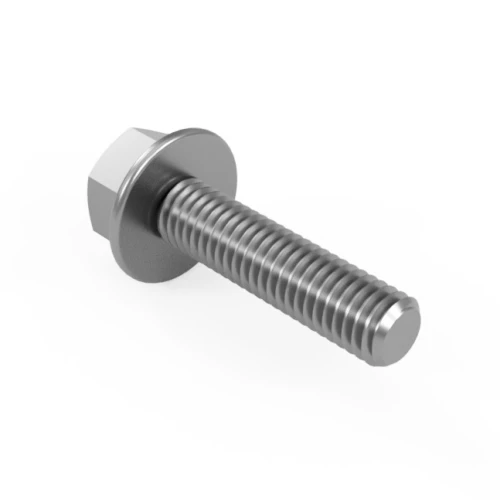

M6 x 30mm Hex (Non Serrated) Flange Bolt (DIN 6921) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.67 | £0.80 |
| 10 - 24 | £0.53 | £0.64 |
| 25 - 49 | £0.40 | £0.48 |
| 50 - 99 | £0.33 | £0.40 |
| 100 - 499 | £0.30 | £0.36 |
| 500 - 999 | £0.27 | £0.32 |
| 1000 + | £0.20 | £0.24 |
Product Specification
| Thread Size | M6 |
| Thread Length | 30mm |
| Pitch | 1mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 10mm |
| Head Height | 6.6mm |
| Flange Diameter | 14.2mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M6 x 30mm Flanged Hex Head Bolt (DIN 6921) | A2-70 Stainless Steel
Use this M6 x 30mm A2-70 Stainless Steel flanged hex head bolt when fixing brackets, frames and supports on industrial racking require a hex head fastener with an integral bearing face. The 10mm across flats drive size supports installation with standard tooling.
The flange beneath the hex head increases the bearing area, making the fixing useful for equipment that sees vibration, routine servicing or repeated adjustment. The A2-70 Stainless Steel finish should be matched to the working environment before installation.
Common Applications
- Industrial Racking: fixing brackets, frames and supports on industrial racking.
- Panel Mounting: reducing the need for loose washers on flat surfaces.
- Workshop Use: spreads pressure across the joint to help reduce local marking.
- Trade Maintenance: supporting quick specification from thread size and length.

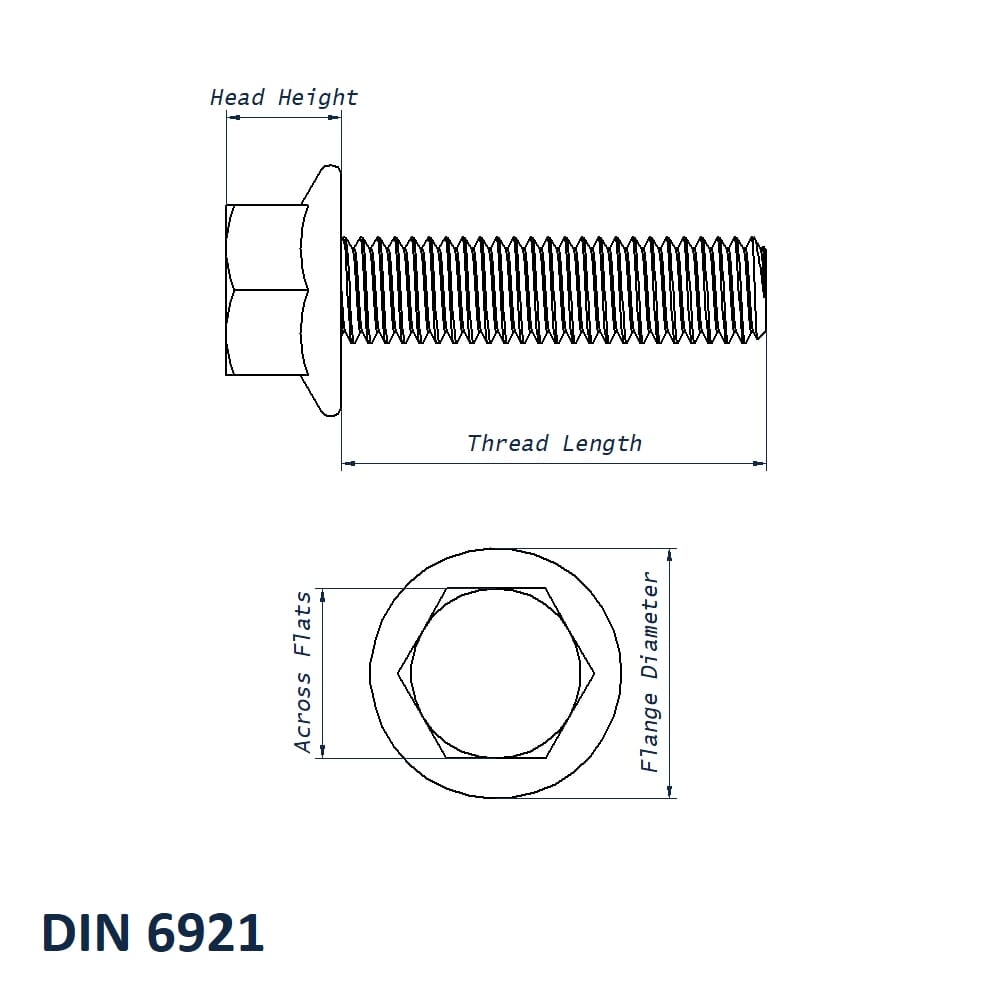

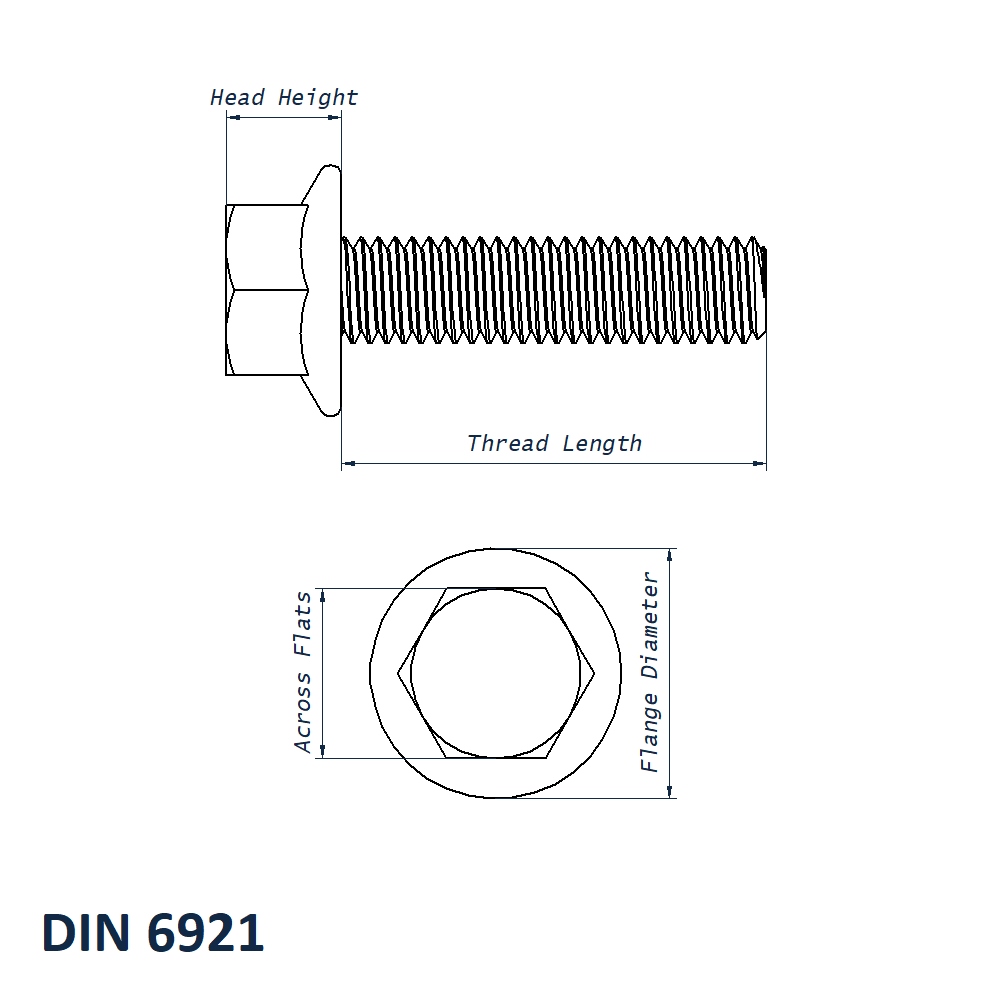

M6 x 30mm Flanged Hex Head Bolt Dimensions
- Thread Size: M6
- Thread Length: 30mm
- Pitch: 1mm
- Across Flats: 10mm
- Head Height: 6.6mm
- Flange Diameter: 14.2mm
- Material: A2-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Flanged Hex Head
Specification Notes
Confirm the flange diameter if the fixing surface is narrow, slotted or close to an edge. The flange helps spread pressure but the correct mating component is still important for safe installation.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
