M6 x 20mm Hex (Non Serrated) Flange Bolt (DIN 6921) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.56 | £0.67 |
| 10 - 24 | £0.45 | £0.54 |
| 25 - 49 | £0.33 | £0.40 |
| 50 - 99 | £0.28 | £0.34 |
| 100 - 499 | £0.25 | £0.30 |
| 500 - 999 | £0.23 | £0.27 |
| 1000 + | £0.17 | £0.20 |
Product Specification
| Thread Size | M6 |
| Thread Length | 20mm |
| Pitch | 1mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 10mm |
| Head Height | 6.6mm |
| Flange Diameter | 14.2mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M6 x 20mm Flanged Hex Head Bolt (DIN 6921) | A2-70 Stainless Steel
This M6 x 20mm flanged hex head bolt in A2-70 Stainless Steel is made for building workshop jigs, clamps and prototype fixtures. Manufactured to DIN 6921, it uses a 14.2mm flange diameter and 10mm across flats to give a practical hex driven fixing for workshop jigs.
The hex head and flange combination makes installation straightforward so the fastener can seat cleanly against flat or slotted components. Its 6.6mm head height and 14.2mm flange diameter should be checked against the available clearance before final selection.
Common Applications
- Workshop Jigs: building workshop jigs, clamps and prototype fixtures.
- Frame Assembly: gives installers a stronger bearing face when tightening onto slotted parts.
- Service Panels: creating a neat fixing for removable covers.
- General Engineering: standardising parts around the DIN 6921 format.

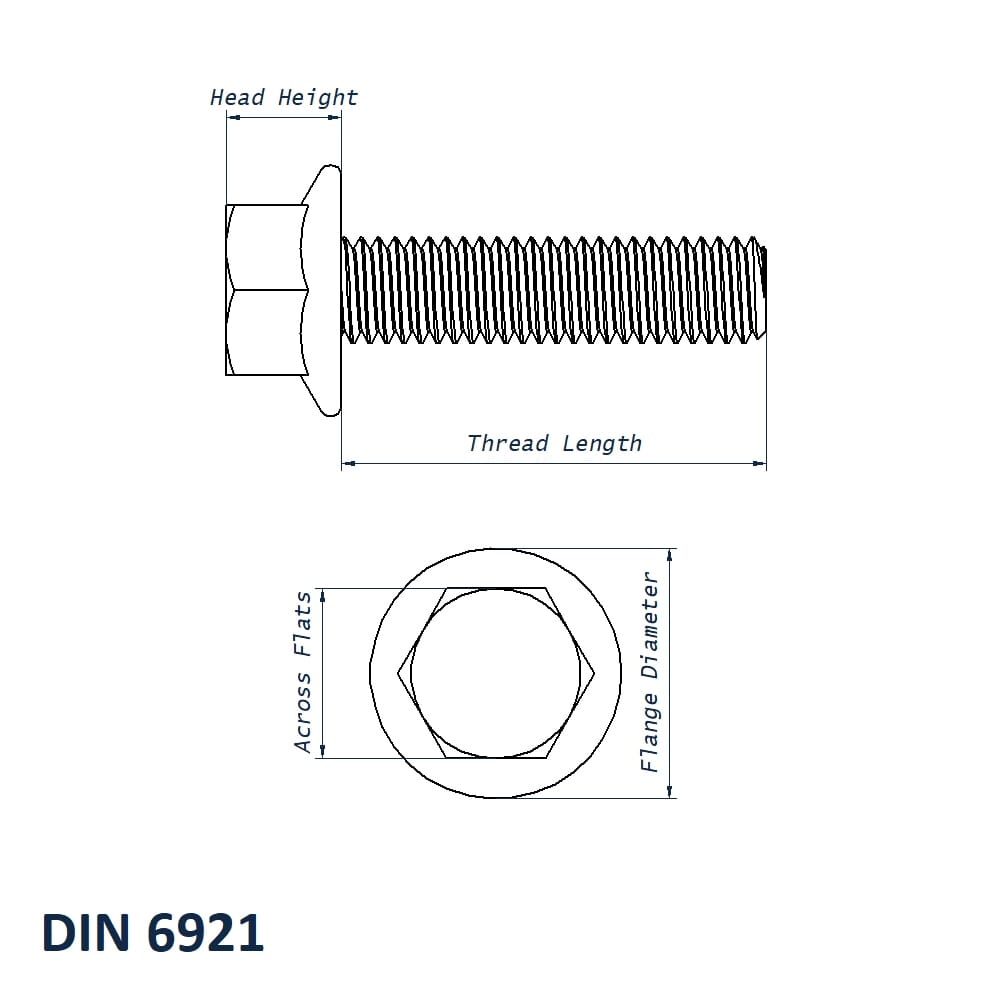

M6 x 20mm Flanged Hex Head Bolt Dimensions
- Thread Size: M6
- Thread Length: 20mm
- Pitch: 1mm
- Across Flats: 10mm
- Head Height: 6.6mm
- Flange Diameter: 14.2mm
- Material: A2-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Flanged Hex Head
Specification Notes
For vibration-prone assemblies, confirm the mating nut and joint design are suitable for the working load. The flange helps spread pressure but the correct mating component is still important for safe installation.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
