M6 x 10mm Hex (Non Serrated) Flange Bolt (DIN 6921) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.49 | £0.59 |
| 10 - 24 | £0.39 | £0.47 |
| 25 - 49 | £0.29 | £0.35 |
| 50 - 99 | £0.24 | £0.29 |
| 100 - 499 | £0.22 | £0.26 |
| 500 - 999 | £0.19 | £0.23 |
| 1000 + | £0.15 | £0.18 |
Product Specification
| Thread Size | M6 |
| Thread Length | 10mm |
| Pitch | 1mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 10mm |
| Head Height | 6.6mm |
| Flange Diameter | 14.2mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M6 x 10mm Flanged Hex Head Bolt (DIN 6921) | A2-70 Stainless Steel
This M6 x 10mm DIN 6921 flanged hex head bolt is suited to fastening plates, brackets and interface parts to aluminium structures. The A2-70 Stainless Steel body, 1mm pitch and 14.2mm flange diameter make it suitable for plant equipment, workshop builds and stainless steel assemblies. Where an M6 bolt is needed with an integral washer face, this flanged hex design keeps the joint simpler and cleaner.
Its broad under-head flange helps distribute pressure and can reduce assembly time where a loose washer is not required by the design. With 1mm pitch and 10mm across flats, this bolt is suited to buyers who need clear technical matching for procurement or maintenance work.
Common Applications
- Aluminium Profiles: fastening plates, brackets and interface parts to aluminium structures.
- Assembly Lines: keeping fastening work efficient with standard hex tooling.
- Bracket Fixing: helps spread compression over a larger contact area than a standard hex head.
- Equipment Repairs: matching existing flange bolt dimensions during replacement.

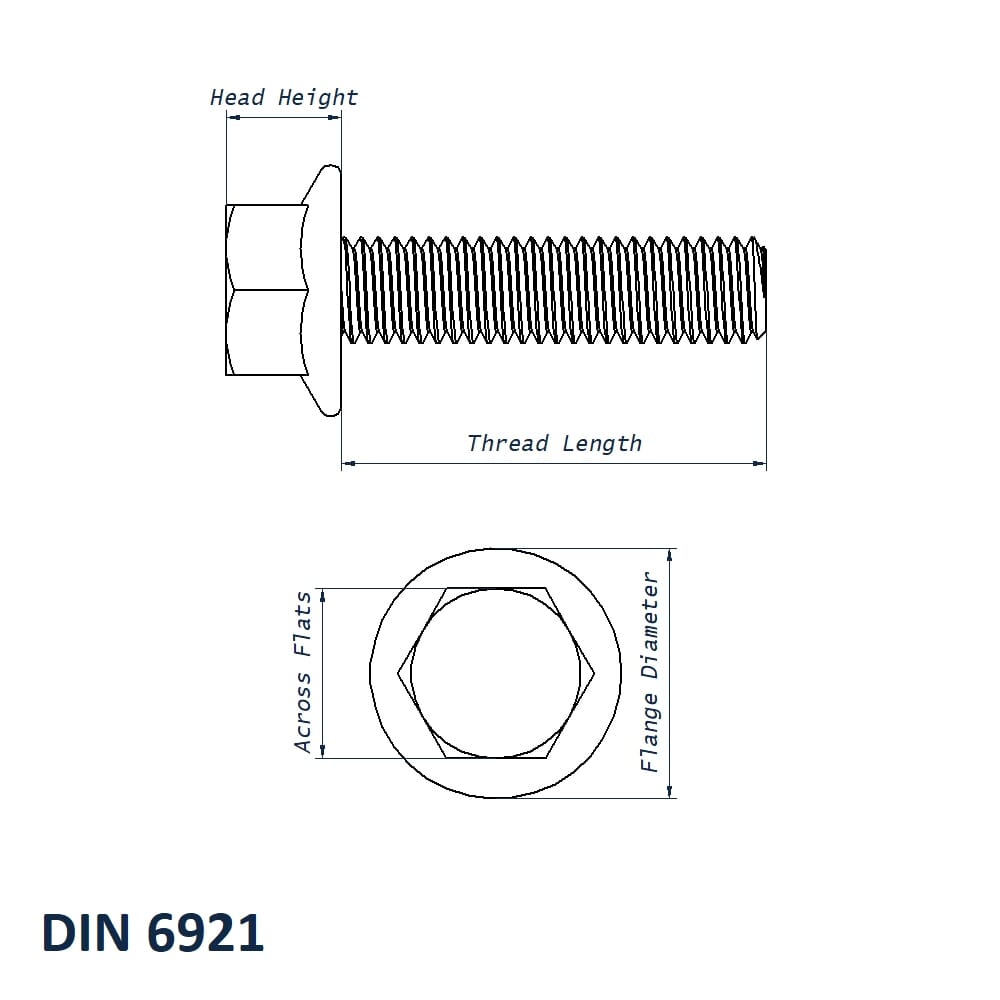

M6 x 10mm Flanged Hex Head Bolt Dimensions
- Thread Size: M6
- Thread Length: 10mm
- Pitch: 1mm
- Across Flats: 10mm
- Head Height: 6.6mm
- Flange Diameter: 14.2mm
- Material: A2-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Flanged Hex Head
Specification Notes
Check the thread size, thread length and pitch before ordering to ensure the bolt matches the mating nut or threaded hole. The flange helps spread pressure but the correct mating component is still important for safe installation.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
