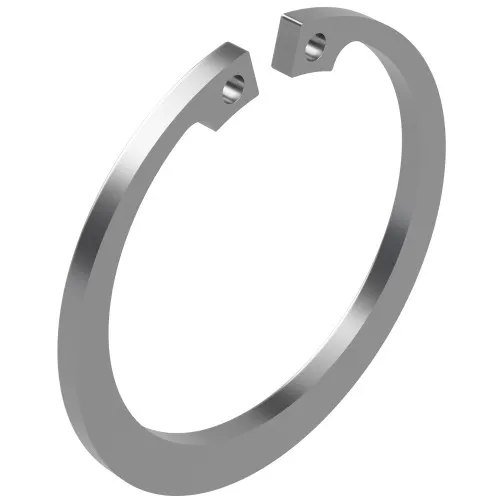

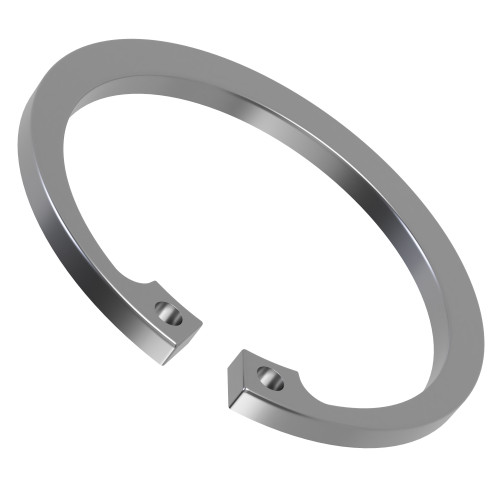

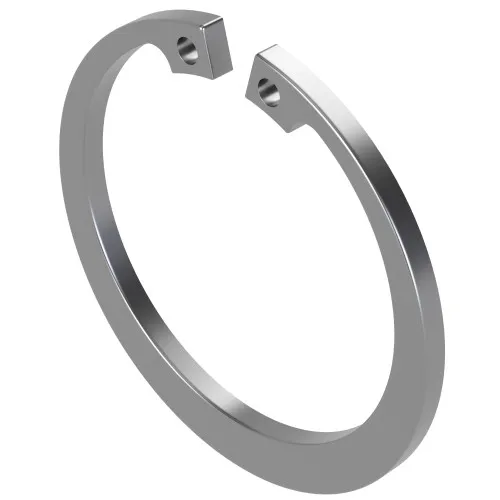

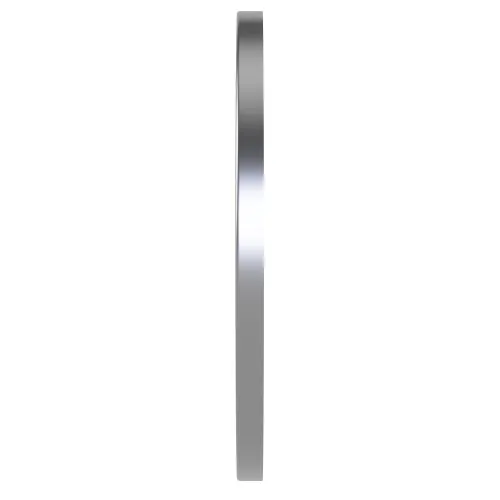

45mm Internal Circlip DIN 472 | 1.4122 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £6.33 | £7.60 |
| 10 - 24 | £4.22 | £5.07 |
| 25 - 49 | £3.17 | £3.80 |
| 50 - 99 | £2.96 | £3.55 |
| 100 + | £2.64 | £3.17 |
£7.60 / each
.png)
Product Specification
| For Bore Diameter | 45mm |
| Tang Height | 6.2mm |
| Outside Diameter | 48.5mm |
| Thickness | 1.75mm |
| Material | 1.4122 Stainless Steel |
| Standard | DIN 472 |
Frequently Bought Together
Total Price: £0.00
45mm Internal Circlip, 48.5mm OD, DIN 472, A2 Stainless
Designed for industrial fan and pulley assemblies, this 45mm Stainless Steel Circlip suits a 45mm bore and has a 48.5mm outside diameter for accurate seating inside a machined groove.
Its self-colour A2 stainless steel construction helps maintain a clean finish while resisting corrosion better than plain carbon steel alternatives. Engineers may refer to this part as a C clip, retaining ring for bores or internal snap ring.
Fitting and Use
Internal retaining rings are often preferred where a compact housing design needs a positive stop without adding a cover plate or threaded retaining part.
Common Applications
- Trailer manufacture and repair work
- Rotating shaft support housings
- Holding spacers within gearbox assemblies
- Automotive gearbox and brake assemblies
45mm Internal Circlip DIN 472 Dimensions
- For Bore Diameter: 45mm
- Tang Height: 6.2mm
- Outside Diameter: 48.5mm
- Thickness: 1.75mm
- Material: A2 Stainless Steel
- Standard: DIN 472
View our full Internal Circlips DIN 472 range.
Need help or buying in bulk? Call 01233 713581.
