95mm Internal Circlip DIN 472 A2 Stainless Steel
Product code:
CCLIP472-95-A2
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £19.64 | £23.57 |
| 10 - 24 | £14.72 | £17.67 |
| 25 - 49 | £12.77 | £15.32 |
| 50 - 99 | £11.78 | £14.14 |
| 100 + | £10.80 | £12.96 |
£23.57
/ each
Quantity:
Product Specification
| For Bore Diameter | 95mm |
| Tang Height | 8.8mm |
| Outside Diameter | 100.5mm |
| Thickness | 3.00mm |
| Material | A2 Stainless Steel |
| Standard | DIN 472 |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00

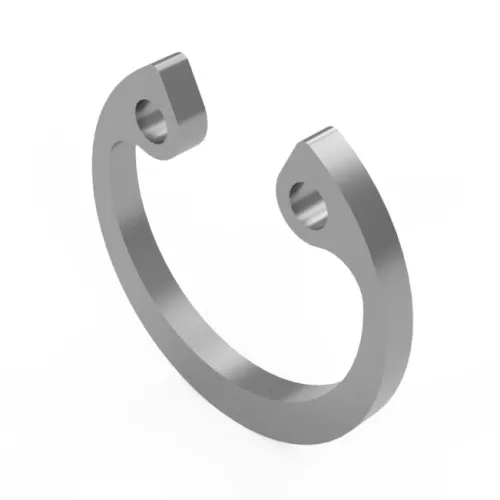

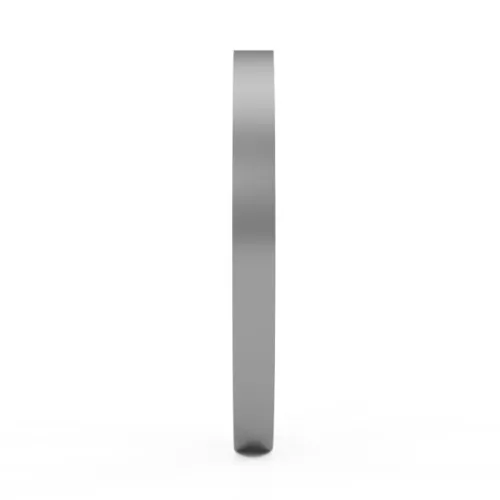

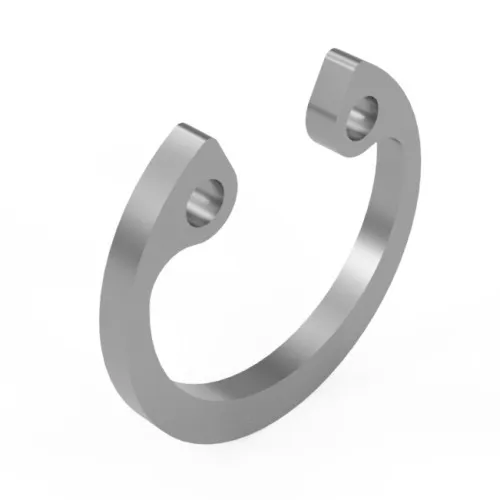

95mm Internal Circlip, 100.5mm OD, DIN 472, A2 Stainless
Engineered for bore-mounted retention, this 95mm Internal C Clip uses the DIN 472 form to secure components within retaining internal components in control equipment.
A raised tang profile gives circlip pliers a clear contact point, making fitting and removal more controlled during servicing. It offers a removable alternative to shoulder plates, pins and other secondary retention methods.
Fitting and Use
The ring should sit squarely in the groove with no twisting. A correctly installed circlip helps distribute retaining load evenly around the bore.
Common Applications
- Precision engineering component location
- Gear case component retention
- Locating bushes in machined housings
- Agricultural machinery maintenance
95mm Internal Circlip DIN 472 Dimensions
- For Bore Diameter: 95mm
- Tang Height: 8.8mm
- Outside Diameter: 100.5mm
- Thickness: 3mm
- Material: A2 Stainless Steel
- Standard: DIN 472
View our full Internal Circlips DIN 472 range.
