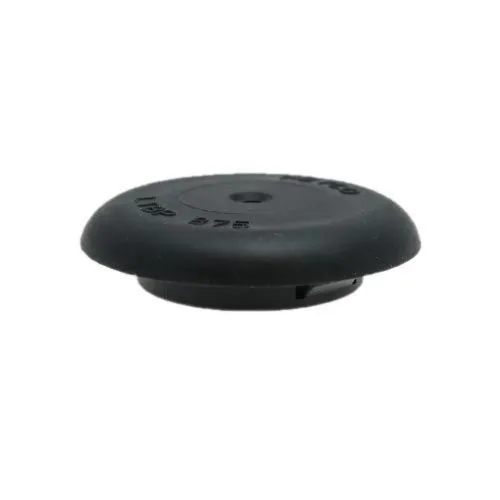

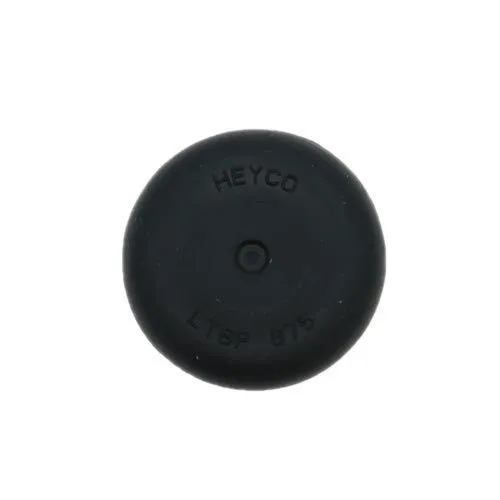

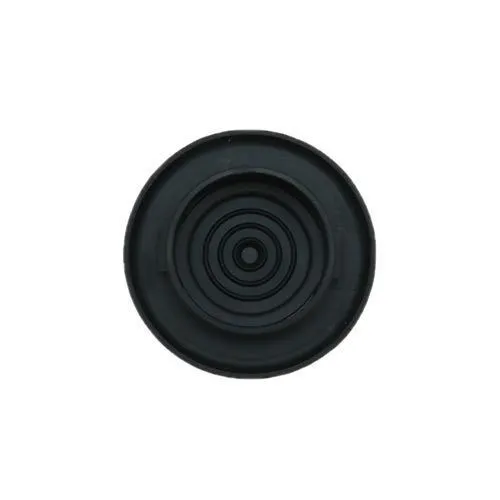

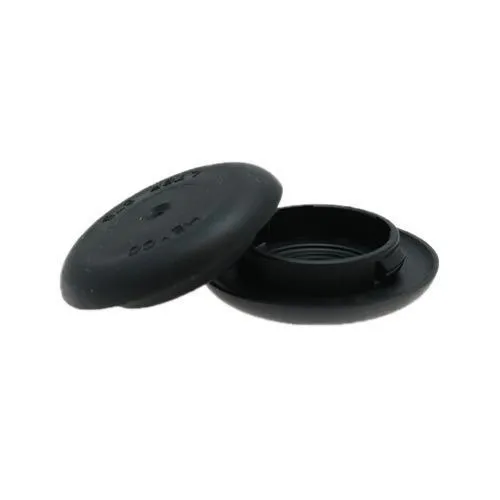

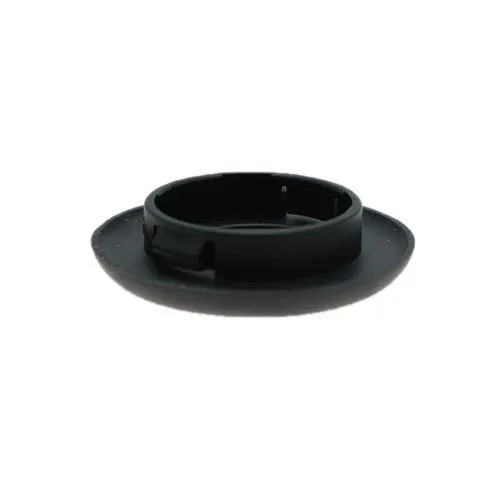

12.7mm Liquid Tight Hole Plug (Break Through) - 1.6mm Panel | Nylon & TPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.93 | £1.12 |
| 250 - 499 | £0.89 | £1.07 |
| 500 - 999 | £0.77 | £0.92 |
| 1000 - 2499 | £0.66 | £0.79 |
| 2500 - 4999 | £0.59 | £0.71 |
| 5000 + | £0.40 | £0.48 |
Product Specification
| Mounting Hole Diameter | 12.7mm |
| Panel Thickness | 1.6mm |
| Material | Nylon & TPE |
| Cable Diameter Range | 2mm-5.1mm |
| Head Diameter | 23.4mm |
| Overall Height | 8.1mm |
| Thickness At Locking Finger Steps | 0.5mm/ 0.8mm/ 1mm/ 1.2mm/ 1.6mm |
Frequently Bought Together
Total Price: £0.00
12.7mm Liquid Tight Break Through Plug | 2mm-5.1mm Cable Range | Nylon & TPE
Designed for electrical panel sealing and future cable routing, this liquid tight break through plug fits a 12.7mm mounting hole and accepts cable diameters from 2mm-5.1mm. The 23.4mm head diameter gives a clean cover over the panel face while the Nylon & TPE construction supports liquid tight protection in demanding installations.
The plug is made from co-moulded Nylon 6/6 and TPE rubber, combining a rigid locating body with a flexible sealing membrane. This helps achieve IP67 and IP68 rated protection when correctly fitted while keeping installation straightforward for panel builders. This version is suited to 1.6mm panels, with locking finger steps listed below to support accurate selection against the panel detail.
What Are Liquid Tight Break Through Plugs?
Liquid tight break through plugs are co-moulded sealing parts used to close panel holes while retaining the option for cable entry. The centre membrane can remain intact as a closed seal or be pierced by a cable to form a protected pass-through, helping electrical enclosures resist water, dust and contamination.
Common Applications
- Sealing unused entries on electrical control panels
- Creating future cable pass-through points in junction boxes
- Protecting enclosure holes during staged wiring work
- Supporting moisture control in automation cabinets
12.7mm x 8.1mm Liquid Tight Break Through Plug Dimensions
- Mounting Hole Diameter: 12.7mm
- Cable Diameter Range: 2mm-5.1mm
- Head Diameter: 23.4mm
- Overall Height: 8.1mm
- Panel Thickness: 1.6mm
- Thickness At Locking Finger Steps: 0.5mm/ 0.8mm/ 1mm/ 1.2mm/ 1.6mm
- Material: Nylon & TPE
Sealing Performance
- IP67 and IP68 rated protection when correctly fitted
- Break-through membrane for closed-hole or cable-through use
- Temperature resistance from -40°C to +100°C
- HB flammability rating
- UL 635 and UL File E15331 recognised under the Component Program
View our full Liquid Tight Break Through Plugs range.
Product Support and Trade Orders
For help matching liquid tight break through plugs to panel thickness, cable diameter or enclosure protection requirements, speak with the Vital Parts team on 01233 713581. We can support sizing checks, samples where available and repeat trade orders for electrical, engineering and OEM projects.
