27.8mm Liquid Tight Hole Plug (Break Through) - 1.6mm Panel | Nylon & TPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £1.12 | £1.35 |
| 250 - 499 | £1.07 | £1.28 |
| 500 - 999 | £0.92 | £1.10 |
| 1000 - 2499 | £0.79 | £0.95 |
| 2500 - 4999 | £0.71 | £0.85 |
| 5000 + | £0.49 | £0.59 |
Product Specification
| Mounting Hole Diameter | 27.8mm |
| Panel Thickness | 1.6mm |
| Material | Nylon & TPE |
| Cable Diameter Range | 6.4mm-19.4mm |
| Head Diameter | 38.9mm |
| Overall Height | 8.1mm |
| Thickness At Locking Finger Steps | 0.5mm/ 0.8mm/ 1mm/ 1.2mm/ 1.6mm |
Frequently Bought Together
Total Price: £0.00
27.8mm Liquid Tight Break Through Plug | 6.4mm-19.4mm Cable Range | Nylon & TPE

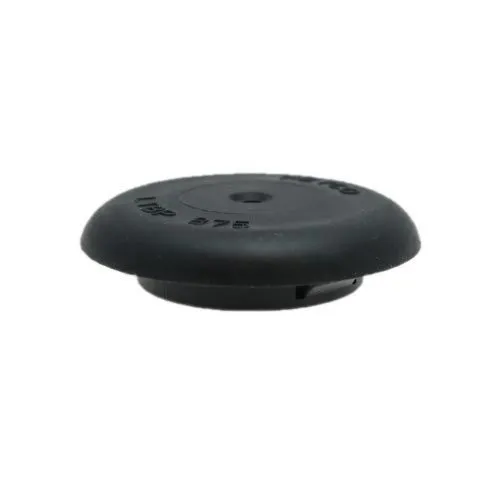

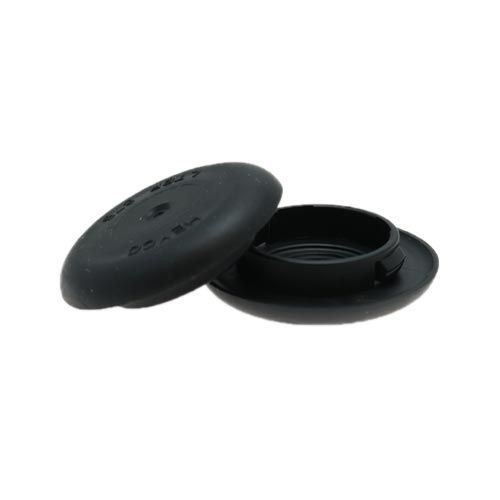

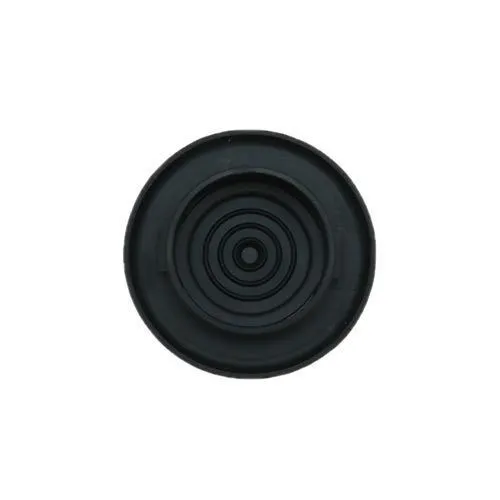

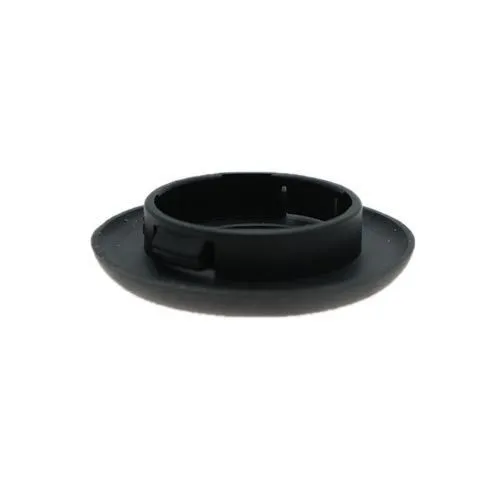

Developed for machine builders specifying a co-moulded closure with flexible sealing, this Nylon and TPE sealing plug protects panel holes from water, dust and dirt until a cable is pushed through the centre membrane. With a 38.9mm head diameter, it gives a neat finish on enclosure faces and machine panels.
Installation is push-fit and does not require specialist tools, making the plug suitable for workshop assembly and field replacement. The liquid tight design helps protect internal components against splashes, dust and light washdown exposure. This version is suited to 1.6mm panels, with locking finger steps listed below to support accurate selection against the panel detail.
What Are Liquid Tight Break Through Plugs?
Liquid tight break through plugs are co-moulded sealing parts used to close panel holes while retaining the option for cable entry. The centre membrane can remain intact as a closed seal or be pierced by a cable to form a protected pass-through, helping electrical enclosures resist water, dust and contamination.
Common Applications
- Fitting to painted or powder coated cabinet panels
- Protecting enclosure interiors during storage
- Converting unused holes into cable pass-throughs
- Supporting control box builds in electrical workshops
27.8mm x 8.1mm Liquid Tight Break Through Plug Dimensions
- Mounting Hole Diameter: 27.8mm
- Cable Diameter Range: 6.4mm-19.4mm
- Head Diameter: 38.9mm
- Overall Height: 8.1mm
- Panel Thickness: 1.6mm
- Thickness At Locking Finger Steps: 0.5mm/ 0.8mm/ 1mm/ 1.2mm/ 1.6mm
- Material: Nylon & TPE
Sealing Performance
- IP67 and IP68 rated protection when correctly fitted
- Break-through membrane for closed-hole or cable-through use
- Temperature resistance from -40°C to +100°C
- HB flammability rating
- UL 635 and UL File E15331 recognised under the Component Program
View our full Liquid Tight Break Through Plugs range.
Product Support and Trade Orders
For help matching liquid tight break through plugs to panel thickness, cable diameter or enclosure protection requirements, speak with the Vital Parts team on 01233 713581. We can support sizing checks, samples where available and repeat trade orders for electrical, engineering and OEM projects.
