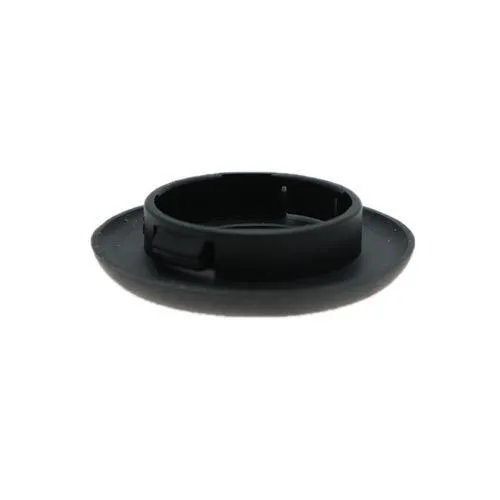

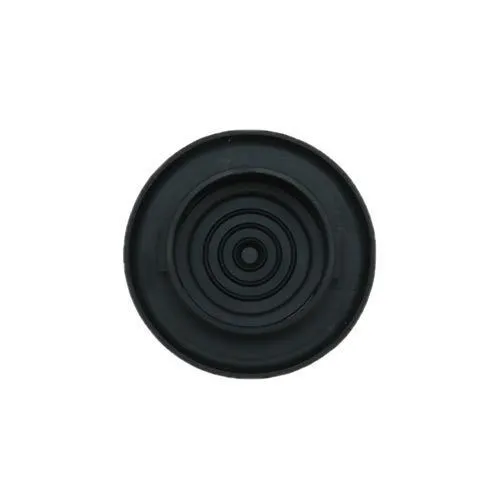

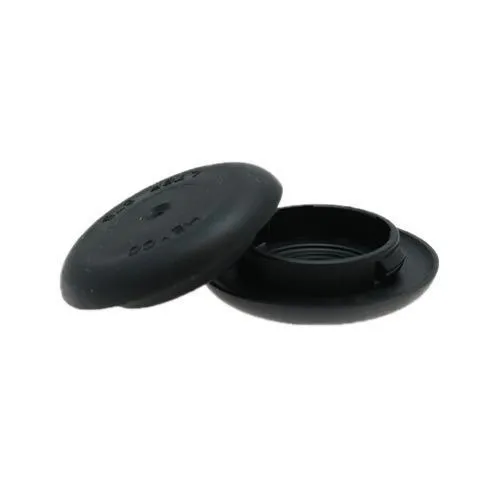

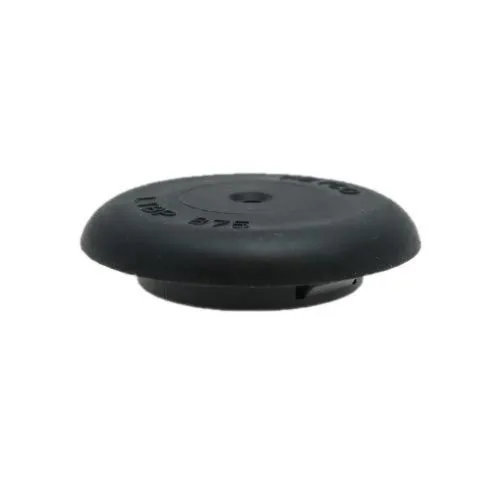

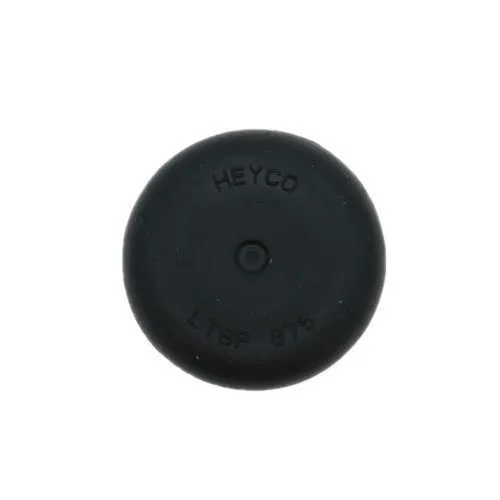

15.9mm Liquid Tight Hole Plug (Break Through) - 1.6mm Panel | Nylon & TPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.97 | £1.16 |
| 250 - 499 | £0.92 | £1.10 |
| 500 - 999 | £0.79 | £0.95 |
| 1000 - 2499 | £0.68 | £0.82 |
| 2500 - 4999 | £0.61 | £0.73 |
| 5000 + | £0.42 | £0.50 |
Product Specification
| Mounting Hole Diameter | 15.9mm |
| Panel Thickness | 1.6mm |
| Material | Nylon & TPE |
| Cable Diameter Range | 3.3mm-9.5mm |
| Head Diameter | 26.2mm |
| Overall Height | 8.1mm |
| Thickness At Locking Finger Steps | 0.5mm/ 0.8mm/ 1mm/ 1.2mm/ 1.6mm |
Frequently Bought Together
Total Price: £0.00
15.9mm Liquid Tight Break Through Plug | 3.3mm-9.5mm Cable Range | Nylon & TPE
Manufactured for junction boxes where a sealed closure may later become a cable entry, this break-through cable plug combines a 15.9mm mounting size with a 3.3mm-9.5mm cable diameter range. Its 8.1mm overall height and co-moulded Nylon & TPE body make it suitable where one component needs to work as either a sealed closure or a cable pass-through.
A stepped locking finger design allows the plug to grip the panel securely across the stated thickness range. This makes it useful for production builds where different enclosure walls need the same style of liquid tight sealing part. This version is suited to 1.6mm panels, with locking finger steps listed below to support accurate selection against the panel detail.
What Are Liquid Tight Break Through Plugs?
Liquid tight break through plugs are co-moulded sealing parts used to close panel holes while retaining the option for cable entry. The centre membrane can remain intact as a closed seal or be pierced by a cable to form a protected pass-through, helping electrical enclosures resist water, dust and contamination.
Common Applications
- Covering spare cable apertures in machine housings
- Providing a break-through cable route for retrofit wiring
- Protecting telecoms cabinets from dust and spray
- Finishing panel cut-outs on production equipment
15.9mm x 8.1mm Liquid Tight Break Through Plug Dimensions
- Mounting Hole Diameter: 15.9mm
- Cable Diameter Range: 3.3mm-9.5mm
- Head Diameter: 26.2mm
- Overall Height: 8.1mm
- Panel Thickness: 1.6mm
- Thickness At Locking Finger Steps: 0.5mm/ 0.8mm/ 1mm/ 1.2mm/ 1.6mm
- Material: Nylon & TPE
Sealing Performance
- IP67 and IP68 rated protection when correctly fitted
- Break-through membrane for closed-hole or cable-through use
- Temperature resistance from -40°C to +100°C
- HB flammability rating
- UL 635 and UL File E15331 recognised under the Component Program
View our full Liquid Tight Break Through Plugs range.
Product Support and Trade Orders
For help matching liquid tight break through plugs to panel thickness, cable diameter or enclosure protection requirements, speak with the Vital Parts team on 01233 713581. We can support sizing checks, samples where available and repeat trade orders for electrical, engineering and OEM projects.
