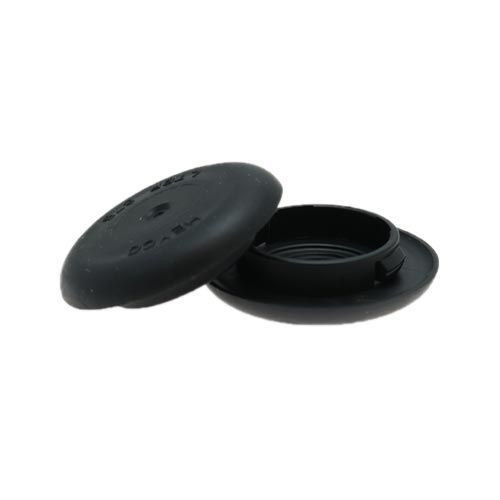

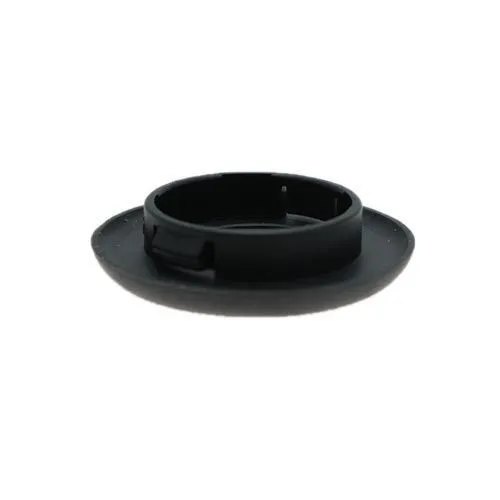

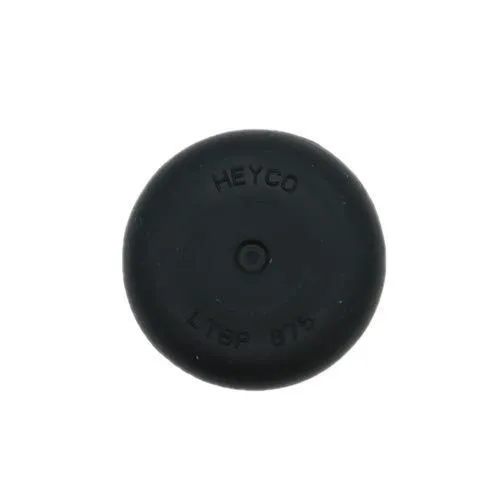

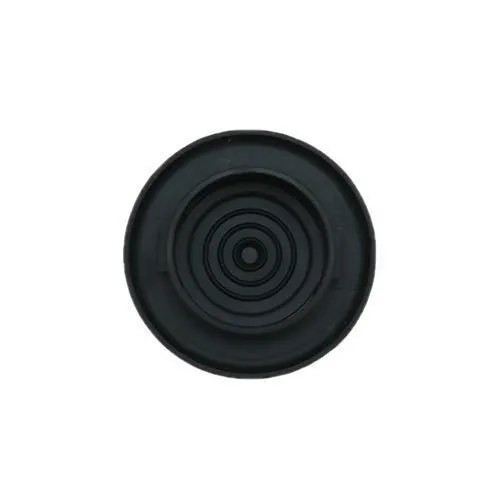

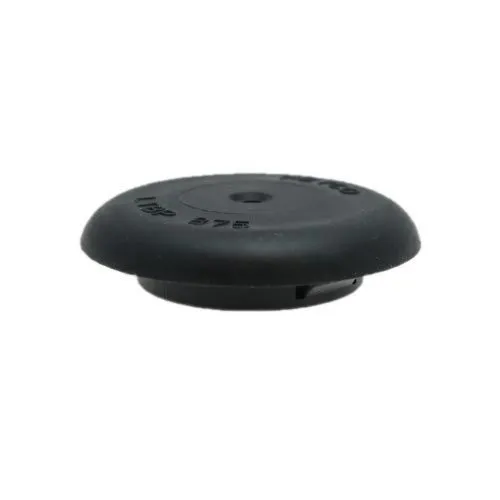

25.4mm Liquid Tight Hole Plug (Break Through) - 1.6mm Panel | Nylon & TPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £1.06 | £1.27 |
| 250 - 499 | £1.01 | £1.21 |
| 500 - 999 | £0.87 | £1.04 |
| 1000 - 2499 | £0.75 | £0.90 |
| 2500 + | £0.67 | £0.80 |
Product Specification
| Mounting Hole Diameter | 25.4mm |
| Panel Thickness | 1.6mm |
| Material | Nylon & TPE |
| Cable Diameter Range | 5.1mm-18.2mm |
| Head Diameter | 36.3mm |
| Overall Height | 8.1mm |
| Thickness At Locking Finger Steps | 0.5mm/ 0.8mm/ 1mm/ 1.2mm/ 1.6mm |
Frequently Bought Together
Total Price: £0.00
25.4mm Liquid Tight Break Through Plug | 5.1mm-18.2mm Cable Range | Nylon & TPE
Offering a practical sealing option for equipment panels that may need cable pass-through after installation, this liquid tight bushing plug uses a flexible TPE membrane within a Nylon body to cover a 25.4mm cut-out. The design supports reliable protection around cable entries without needing a separate blanking plug and bushing.
The broad head helps cover the panel edge cleanly while the flexible centre forms around the cable once broken through. This reduces the need for separate sealing washers or temporary blanking parts during phased installation work. This version is suited to 1.6mm panels, with locking finger steps listed below to support accurate selection against the panel detail.
What Are Liquid Tight Break Through Plugs?
Liquid tight break through plugs are co-moulded sealing parts used to close panel holes while retaining the option for cable entry. The centre membrane can remain intact as a closed seal or be pierced by a cable to form a protected pass-through, helping electrical enclosures resist water, dust and contamination.
Common Applications
- Managing spare cable positions on OEM equipment
- Creating liquid tight bushings for enclosure wiring
- Protecting sensor cable entry holes
- Reducing contamination around electrical panel cut-outs
25.4mm x 8.1mm Liquid Tight Break Through Plug Dimensions
- Mounting Hole Diameter: 25.4mm
- Cable Diameter Range: 5.1mm-18.2mm
- Head Diameter: 36.3mm
- Overall Height: 8.1mm
- Panel Thickness: 1.6mm
- Thickness At Locking Finger Steps: 0.5mm/ 0.8mm/ 1mm/ 1.2mm/ 1.6mm
- Material: Nylon & TPE
Sealing Performance
- IP67 and IP68 rated protection when correctly fitted
- Break-through membrane for closed-hole or cable-through use
- Temperature resistance from -40°C to +100°C
- HB flammability rating
- UL 635 and UL File E15331 recognised under the Component Program
View our full Liquid Tight Break Through Plugs range.
Product Support and Trade Orders
For help matching liquid tight break through plugs to panel thickness, cable diameter or enclosure protection requirements, speak with the Vital Parts team on 01233 713581. We can support sizing checks, samples where available and repeat trade orders for electrical, engineering and OEM projects.
