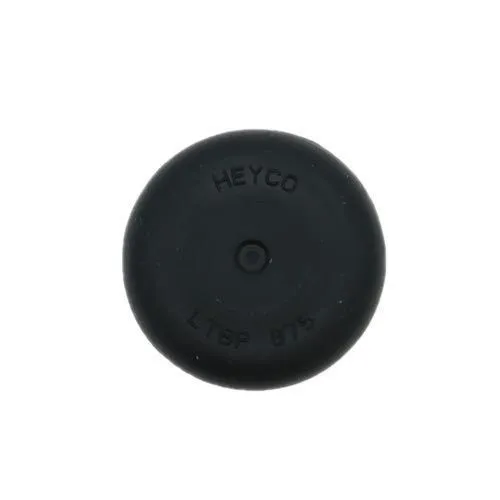

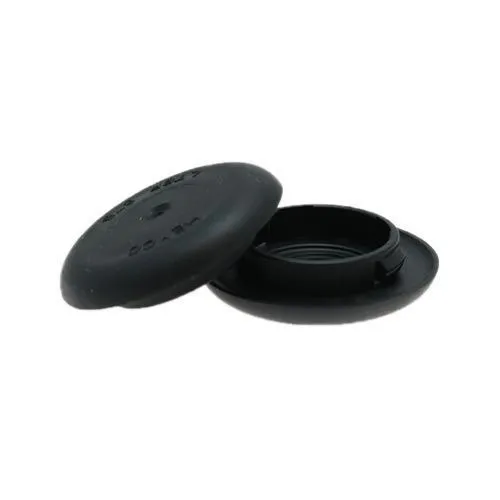

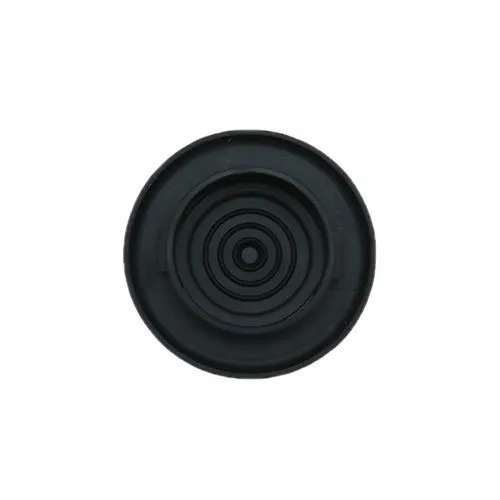

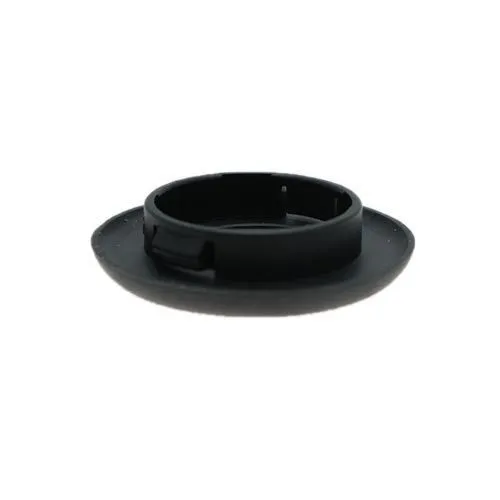

19.1mm Liquid Tight Hole Plug (Break Through) - 1.6mm Panel | Nylon & TPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.97 | £1.17 |
| 250 - 499 | £0.93 | £1.12 |
| 500 - 999 | £0.80 | £0.96 |
| 1000 - 2499 | £0.69 | £0.83 |
| 2500 - 4999 | £0.62 | £0.74 |
| 5000 + | £0.42 | £0.50 |
Product Specification
| Mounting Hole Diameter | 19.1mm |
| Panel Thickness | 1.6mm |
| Material | Nylon & TPE |
| Cable Diameter Range | 4.4mm-10.2mm |
| Head Diameter | 29.2mm |
| Overall Height | 8.1mm |
| Thickness At Locking Finger Steps | 0.5mm/ 0.8mm/ 1mm/ 1.2mm/ 1.6mm |
Frequently Bought Together
Total Price: £0.00
19.1mm Liquid Tight Break Through Plug | 4.4mm-10.2mm Cable Range | Nylon & TPE
Frequently specified for control cabinet apertures exposed to spray and dust, this IP67 panel plug provides a tidy push-fit solution for 19.1mm panel openings. The break-through membrane remains closed until a cable is inserted, helping protect spare entries from dust, moisture and general contamination.
Because the membrane stays closed until pierced by the cable, the part can be installed early in the build to seal a spare hole. When wiring is added, the same component can be used as a cable bushing without replacing the original plug. This version is suited to 1.6mm panels, with locking finger steps listed below to support accurate selection against the panel detail.
What Are Liquid Tight Break Through Plugs?
Liquid tight break through plugs are co-moulded sealing parts used to close panel holes while retaining the option for cable entry. The centre membrane can remain intact as a closed seal or be pierced by a cable to form a protected pass-through, helping electrical enclosures resist water, dust and contamination.
Common Applications
- Closing holes in switchgear and electrical cabinets
- Routing small cables through sealed panel openings
- Reducing ingress risk on outdoor service boxes
- Maintaining a clean finish on fabricated enclosures

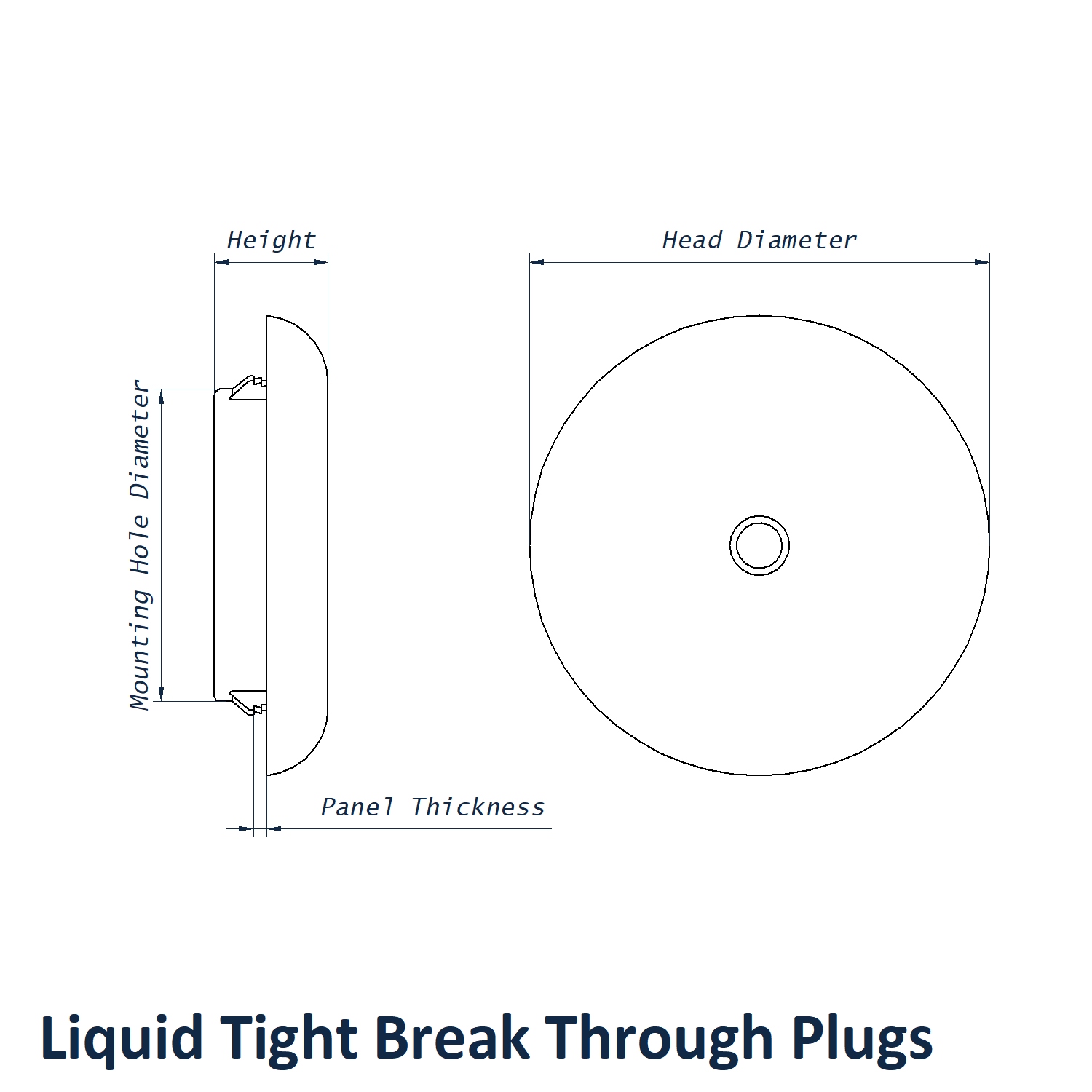

19.1mm x 8.1mm Liquid Tight Break Through Plug Dimensions
- Mounting Hole Diameter: 19.1mm
- Cable Diameter Range: 4.4mm-10.2mm
- Head Diameter: 29.2mm
- Overall Height: 8.1mm
- Panel Thickness: 1.6mm
- Thickness At Locking Finger Steps: 0.5mm/ 0.8mm/ 1mm/ 1.2mm/ 1.6mm
- Material: Nylon & TPE
Sealing Performance
- IP67 and IP68 rated protection when correctly fitted
- Break-through membrane for closed-hole or cable-through use
- Temperature resistance from -40°C to +100°C
- HB flammability rating
- UL 635 and UL File E15331 recognised under the Component Program
View our full Liquid Tight Break Through Plugs range.
