Flanged Nylon Bushes - NYB103
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.95 | £1.14 |
| 2 - 999 | £0.95 | £1.14 |
| 1000 - 4999 | £0.82 | £0.98 |
| 5000 + | £0.68 | £0.82 |
Product Specification
| Internal Diameter | 12.1mm |
| Outside Diameter | 14.0mm |
| Flange Diameter | 20.0mm |
| Shaft Length | 4.0mm |
| Colour | Natural |
| Flange Thickness | N/A |
| Material | Polyamide |
Frequently Bought Together
Total Price: £0.00

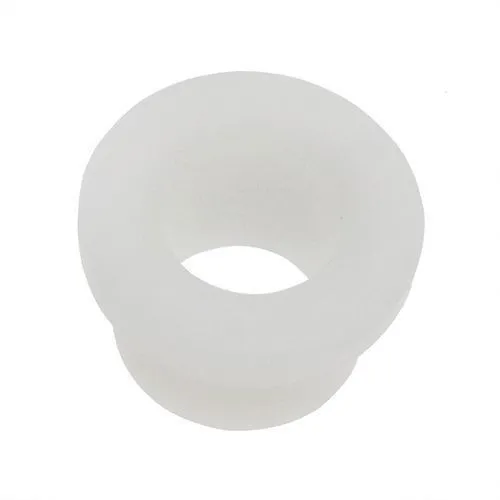

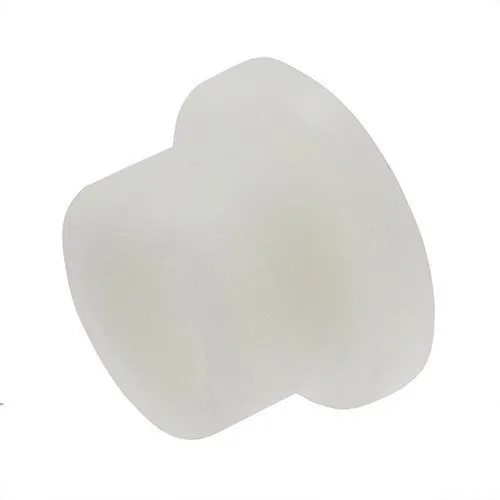

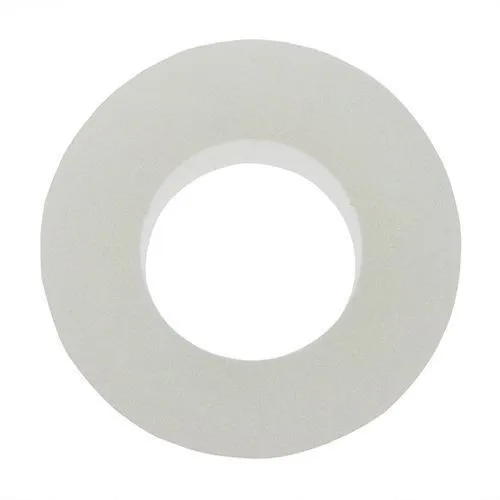

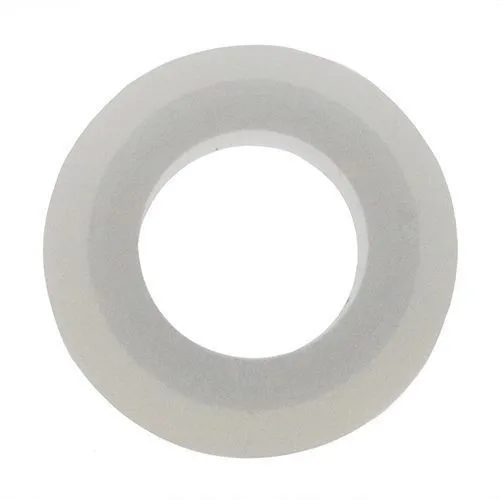

12.1mm ID x 14.0mm OD x 4.0mm Shaft Length x 20.0mm Flange Flanged Nylon Bush | Natural Nylon
This 12.1mm ID flanged plastic bushing is sized with a 12.1mm internal bore, 14.0mm outside diameter, 4.0mm shaft length and 20.0mm flange diameter for use around larger fasteners, sleeves, shafts and equipment mounting points. It gives UK engineers a simple flanged insert for providing a lightweight plastic interface between two joined components.
For OEM assembly teams, the consistent flange and shank dimensions help simplify repeat fitting across matched panel holes. This makes it suitable for non-metallic spacers and similar nylon sleeve bushes where a non-metallic interface is preferred.
What Are Flanged Nylon Bushes?
A shoulder washer bush works by placing a flanged nylon sleeve between the fixing and the panel, helping reduce direct contact and surface wear. In this size, the 12.1mm internal diameter supports the pass-through or fixing, while the 20.0mm flange helps cover the surrounding face of the hole.
Common Applications
- Laboratory equipment housings
- Production line sensor brackets
- Packaging machine guard panels
- Electrical backplate spacing
12.1mm ID x 14.0mm OD x 4.0mm Shaft Length Natural Nylon Bush Dimensions
- Internal Diameter: 12.1mm
- Outside Diameter: 14.0mm
- Flange Diameter: 20.0mm
- Shaft Length: 4.0mm
- Colour: Natural
- Material: Polyamide
Nylon Bush Size Selection
The full range contains multiple bore and flange sizes, helping buyers match the nylon bush to the screw, shaft, cable or panel hole being protected. View our full Nylon Bushes - Natural range.
Product Support and Trade Orders
If you are matching a flanged bush to a panel hole, fastener or shaft, contact Vital Parts on 01233 713581 for sizing support, sample availability and trade quantity advice.
