Flanged Nylon Bushes - NYB104
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.89 | £1.07 |
| 2 - 999 | £0.88 | £1.05 |
| 1000 - 4999 | £0.86 | £1.03 |
| 5000 + | £0.84 | £1.01 |
Product Specification
| Internal Diameter | 12.2mm |
| Outside Diameter | 13.8mm |
| Flange Diameter | 25.0mm |
| Shaft Length | 2.0mm |
| Colour | Natural |
| Flange Thickness | N/A |
| Material | Polyamide |
Frequently Bought Together
Total Price: £0.00

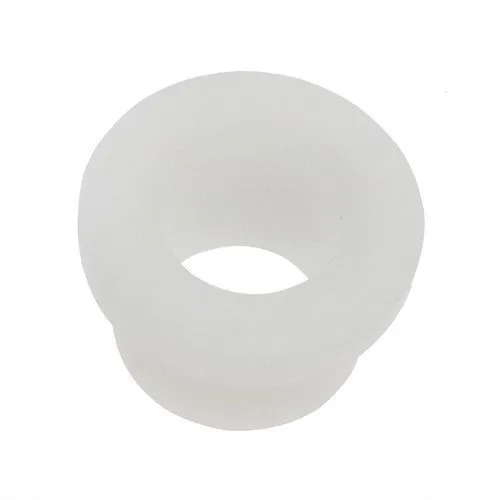

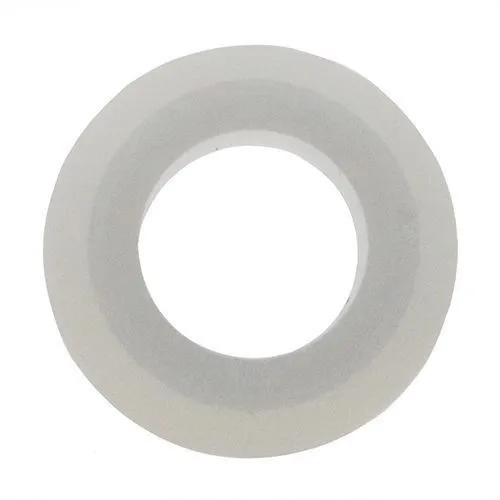

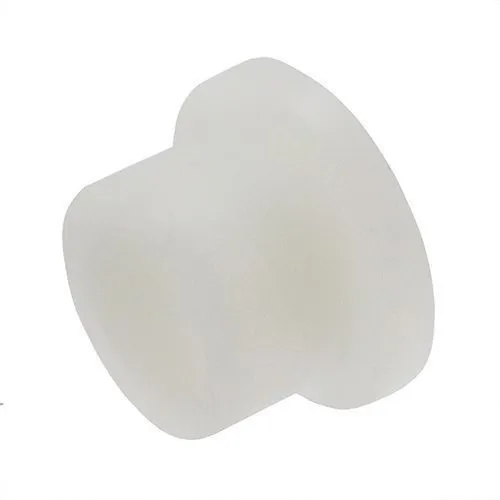

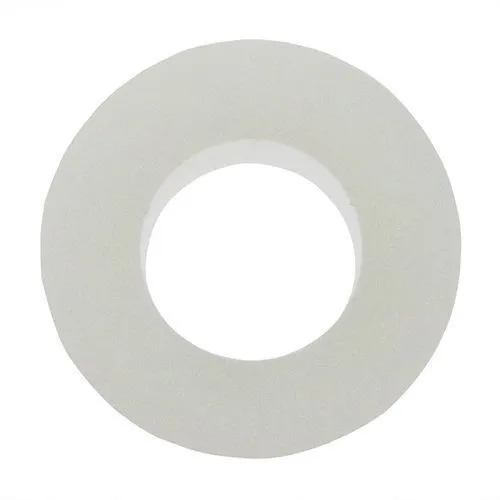

12.2mm ID x 13.8mm OD x 2.0mm Shaft Length x 25.0mm Flange Flanged Nylon Bush | Natural Nylon
Providing a clean solution for electrical enclosure work, this 12.2mm ID insulation sleeve provides a flanged sleeve for accurate spacing through metal panels and fabricated brackets. Its 12.2mm bore, 13.8mm outside diameter, 2.0mm shaft length and 25.0mm flange allow the bush to sit neatly in a prepared hole.
The flange face can act as a shoulder washer, helping protect the surrounding surface from rubbing or localised pressure. It can be used as one of the range's plastic shoulder washers, helping create spacing without introducing a conductive metal part.
What Are Flanged Nylon Bushes?
Flanged nylon bushes are top-hat shaped plastic components used to line a hole, space components apart or insulate a fixing from the surrounding material. In this size, the 12.2mm internal diameter supports the pass-through or fixing, while the 25.0mm flange helps cover the surrounding face of the hole.
Common Applications
- Plastic-to-metal fixing points
- Low-load rotating pins
- Drilled hole edge protection
- Small shaft guide applications
12.2mm ID x 13.8mm OD x 2.0mm Shaft Length Natural Nylon Bush Dimensions
- Internal Diameter: 12.2mm
- Outside Diameter: 13.8mm
- Flange Diameter: 25.0mm
- Shaft Length: 2.0mm
- Colour: Natural
- Material: Polyamide
Nylon Bush Size Selection
For projects using several hole sizes, the full range makes it easier to compare flanged bushes by bore size, outside diameter and flange diameter. View our full Nylon Bushes - Natural range.
