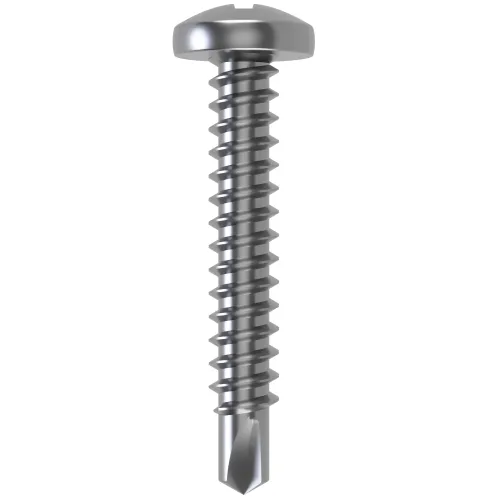

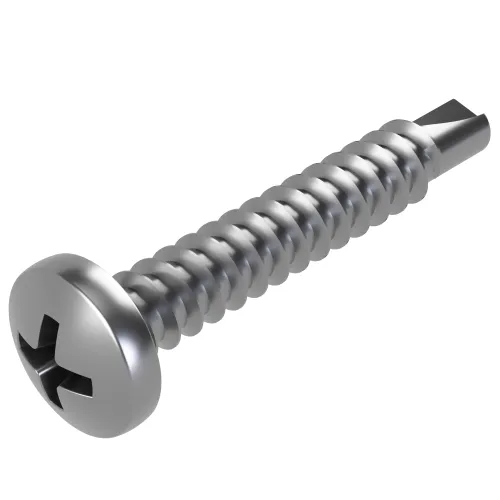

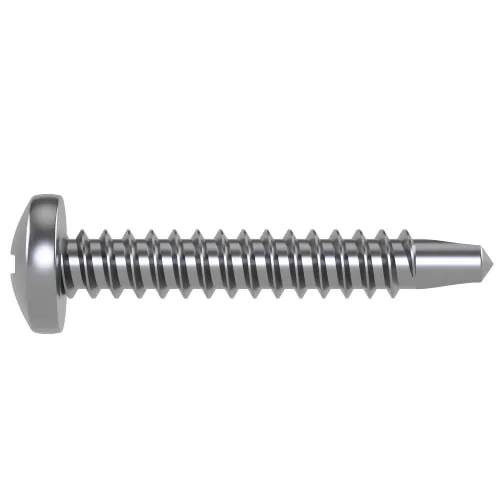

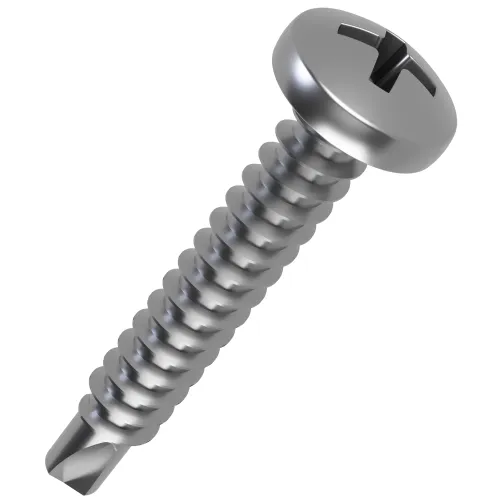

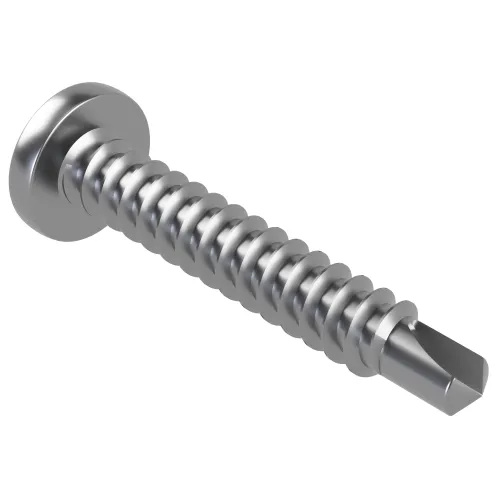

4.8mm x 32mm Phillips Pan Head Self Drilling Screw DIN 7504MH | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1000 - 1999 | £0.10 | £0.12 |
| 2000 - 4999 | £0.07 | £0.08 |
| 5000 + | £0.06 | £0.07 |
£0.12 / each
.png)
Product Specification
| Thread Size | 4.8mm |
| Thread Length | 32mm |
| Drive | PH3 |
| Head Diameter | 9.5mm |
| Head Height | 3.7mm |
| Material | A2 Stainless Steel |
| Standard | DIN 7504MH |
Frequently Bought Together
Total Price: £0.00
4.8mm x 32mm Phillips Pan Head Self Drilling Screw | DIN 7504MH | A2 Stainless Steel
For signage, light metalwork and panel fixing, this 4.8mm x 32mm Phillips self drilling screw can cut through compatible sheet metal before its thread engages the receiving material. This allows drilling and fastening to be completed with one fastener in many suitable assemblies. The A2 Stainless Steel construction provides good corrosion resistance for general engineering, fabrication and suitable exposed applications.
What Are Pan Head Self Drilling Screws?
Pan Head Tek Screws are self drilling fasteners commonly used for metal-to-metal fixing. Their integrated drill point can remove separate drilling and tapping stages in many suitable applications while the drive recess allows installation with a compatible manual or powered driver. DIN 7504MH specifies a pan head self drilling screw with a Phillips recess.
Common Applications
- Automotive and Transport: Secures compatible trim panels, brackets, housings and lightweight fabricated components.
- General Construction: Fastens suitable metal framing accessories, brackets, fixtures and sheet-metal components.
- Control Panels: Provides a quick fixing for covers, mounting plates and internal hardware on compatible metal panels.
- Workshop Fabrication: Supports repairs, prototype work and general assembly where self drilling into suitable metal is useful.
4.8mm x 32mm DIN 7504MH Pan Head Self Drilling Screw Dimensions
- Thread Size: 4.8mm
- Thread Length: 32mm
- Head Height: 3.7mm
- Head Diameter: 9.5mm
- Drive: PH3
- Standard: DIN 7504MH
- Material: A2 Stainless Steel
Key Benefits
- Rounded pan head creates a neat compact finish where a countersunk recess is not required.
- 3.7mm head height gives the stated pan-head profile.
- DIN 7504MH identifies the standard or drive format for this product.
- Integrated drill point can reduce separate pilot-drilling operations in suitable metal.
See our wider Pan Head Self Drilling Screws category for alternative standards and drive types. You can compare other self-drilling and self-threading screw options in our full Self Drilling Screws collection. For product-selection support, speak with our team on 01233 713581.
