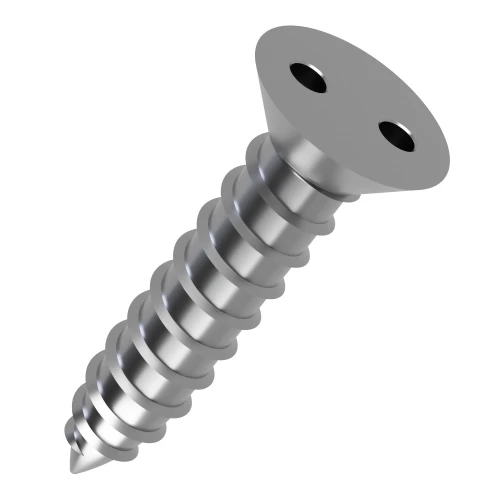

4.8mm x 38mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
Product code:
SECST-4.8-38-A2
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.93 | £1.12 |
| 100 - 499 | £0.88 | £1.06 |
| 500 - 999 | £0.70 | £0.84 |
| 1000 + | £0.47 | £0.56 |
£1.12
/ each
Quantity:
Product Specification
| Thread Size | 4.8mm |
| Length | 38.0mm |
| Head Diameter | 8.9mm |
| Head Height | 3.00mm |
| End Type | AB |
| Drive Type | Two Hole (Snake Eye) |
| Drive | Security TH6 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
4.8mm x 38mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
Offering a practical fixing choice for machinery guarding, this 4.8mm x 38mm snake eye self tapping fastener helps secure parts during repairing fabricated housings.
With its AB end type and Snake Eye drive, this screw is suited to planned assembly runs where reduced need for separate tapping is required.
Common Applications
- Attaching safety cover panels
- Mounting steel blanking plates
- Retaining protective cover strips
- Fixing enclosure trims

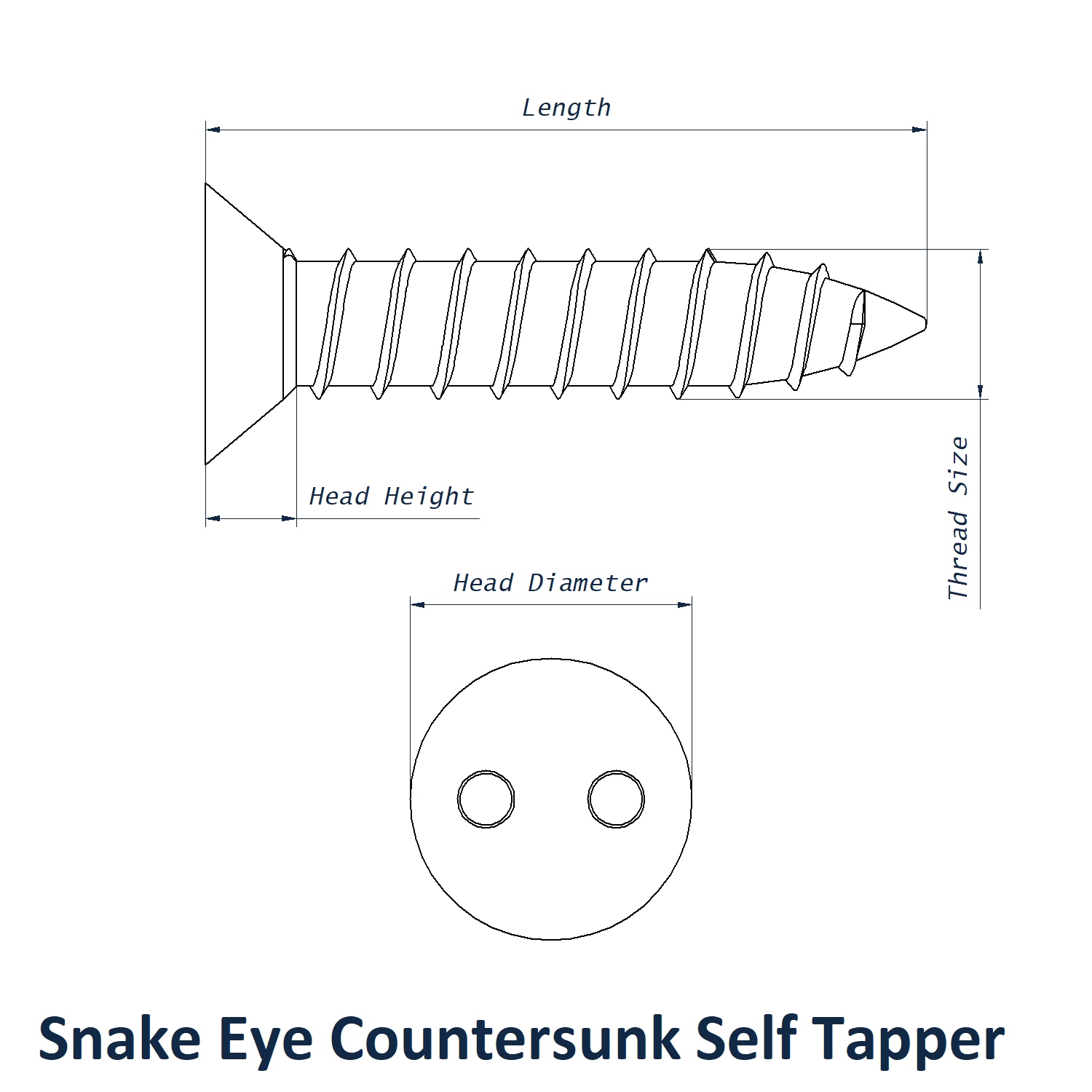

4.8mm x 38mm Snake Eye Countersunk Screw Dimensions
- Thread Size: 4.8mm
- Length: 38mm
- Head Diameter: 8.9mm
- Head Height: 3.00mm
- End Type: AB
- Drive: Security TH6
- Drive Type: Two Hole (Snake Eye)
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
See the complete Countersunk Self Tapping Screws Range and compare further options within Self Tapping Screws.
