5.5mm x 19mm Pin Torx Countersunk AB Security Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.27 | £0.32 |
| 100 - 499 | £0.25 | £0.30 |
| 500 - 999 | £0.23 | £0.27 |
| 1000 + | £0.11 | £0.13 |
Product Specification
| Thread Size | 5.5mm |
| Length | 19.0mm |
| Head Diameter | 10.6mm |
| Head Height | 3.40mm |
| End Type | AB |
| Drive Type | Pin Torx |
| Drive | Security T27 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
5.5mm x 19mm Slotted Countersunk AB Self Tapping Screw (DIN 7982C) | A2 Stainless Steel
Total Price: £0.00
5.5mm x 19mm Pin Torx Countersunk AB Self Tapping Screw | A2 Stainless Steel
Built with an AB end type, this 5.5mm x 19mm countersunk panel screw is intended for fixing enclosure trims where the fixing needs to form its own thread.
A2 stainless steel supports corrosion resistance and consistent performance in panel building work where robust panel retention is required. The result is useful for installers who need robust panel retention in sheet or panel assemblies.
Common Applications
- Attaching internal equipment rails
- Fitting inspection panels
- Securing fabricated corner plates
- Fastening display frames

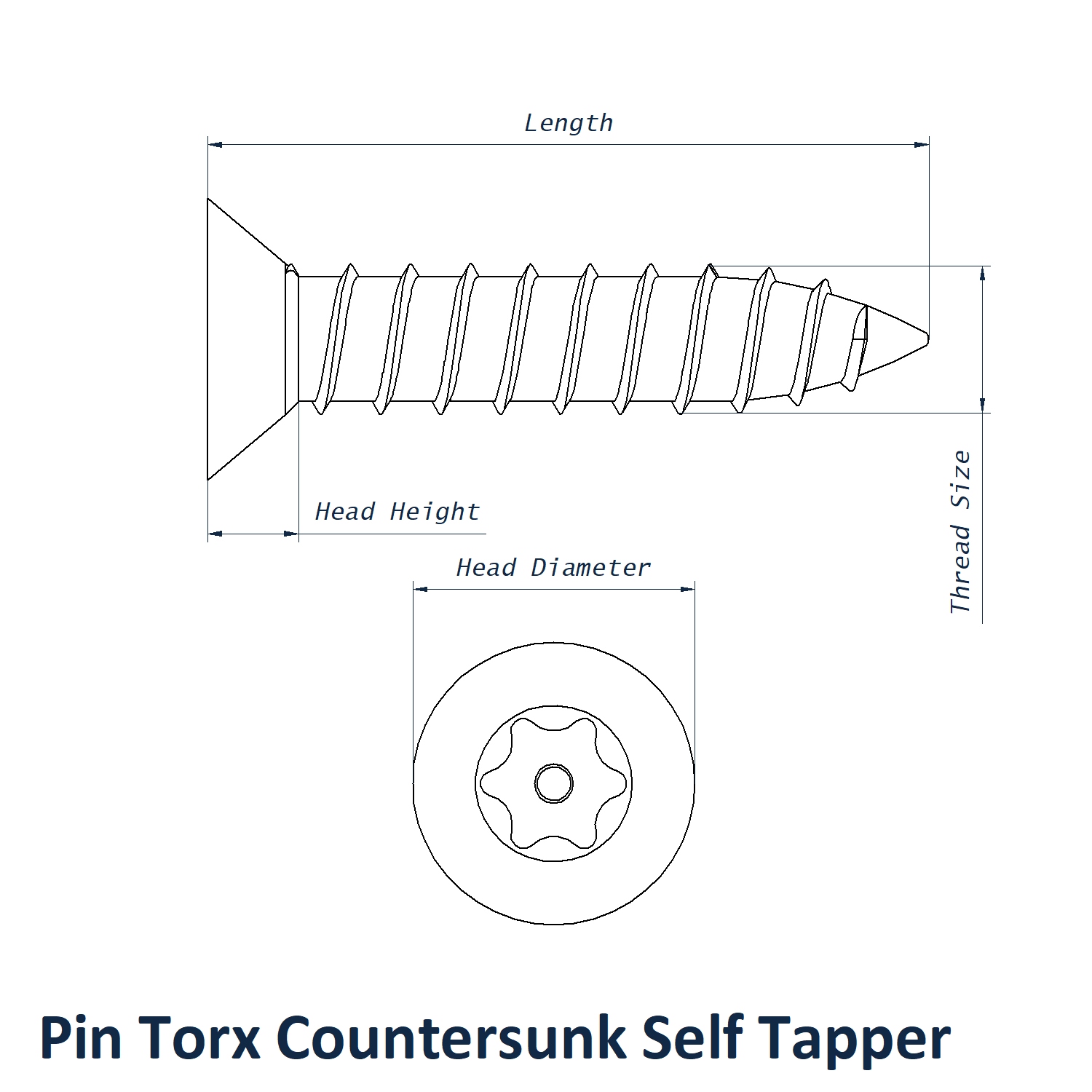

5.5mm x 19mm Pin Torx Countersunk Screw Dimensions
- Thread Size: 5.5mm
- Length: 19mm
- Head Diameter: 10.6mm
- Head Height: 3.40mm
- End Type: AB
- Drive: Security T27
- Drive Type: Pin Torx
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
For more sizes, view our Countersunk Self Tapping Screws Range. Related fixing options are available in Self Tapping Screws.
