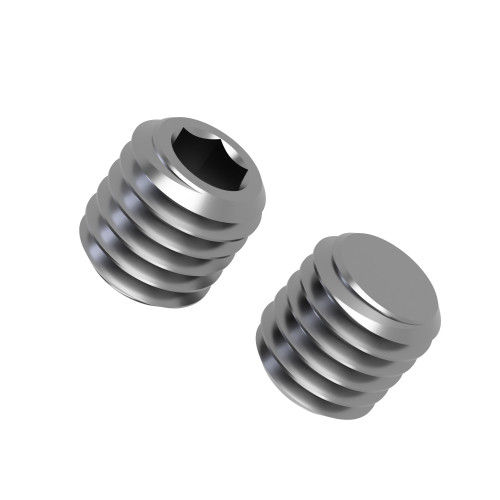

M5 x 20mm Socket Grub Screw - Flat Point (DIN 913) - Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.08 | £0.10 |
| 100 - 499 | £0.07 | £0.09 |
| 500 - 999 | £0.07 | £0.08 |
| 1000 - 4999 | £0.06 | £0.07 |
| 5000 - 9999 | £0.05 | £0.06 |
| 10000 + | £0.04 | £0.05 |
Product Specification
| Thread Size | M5 |
| Length | 20.0mm |
| Pitch | 0.80mm |
| End Type | Flat |
| Drive | H2.5 |
| Standard | DIN 913 / ISO 4026 |
| Material | Class 45H Steel BZP |
Frequently Bought Together
Total Price: £0.00
M5 x 20mm Flat Point Socket Grub Screw | H2.5 Drive | Class 45H Steel BZP
This M5 x 20mm Allen key grub screw is a useful headless fixing for robotics and automation. The flat end type is selected where broad contact is preferred over a cup or cone point, helping reduce marking on the retained component. As a flush grub screw, it is well suited to robot cells, sensor brackets and actuator mounts because it keeps compact assemblies clear of protruding screw heads. The M5 thread gives this SKU a different fitting profile within the range.
Manufactured from Class 45H steel BZP, this DIN 913 grub screw suits dry environments where strong thread engagement and a practical plated finish are required. The flat point design is especially useful when the retained part may need to be repositioned because the end sits evenly against the contact face. It gives a strong plated steel alternative where stainless steel is not required.
Common Applications
- Robot cells, sensor brackets and actuator mounts using a M5 x 20mm flat point set screw
- Textile machine alignment collars
- Lighting rig clamp components
- Access control hardware and pivot mechanisms
Key Features and Benefits
- Designed for flush fastening in machined housings and adjustable mechanisms
- Simple hex key operation makes removal and repositioning straightforward
- DIN 913 / ISO 4026 standard helps match existing technical drawings and parts lists
- Material selection helps buyers choose between stainless corrosion resistance and BZP value

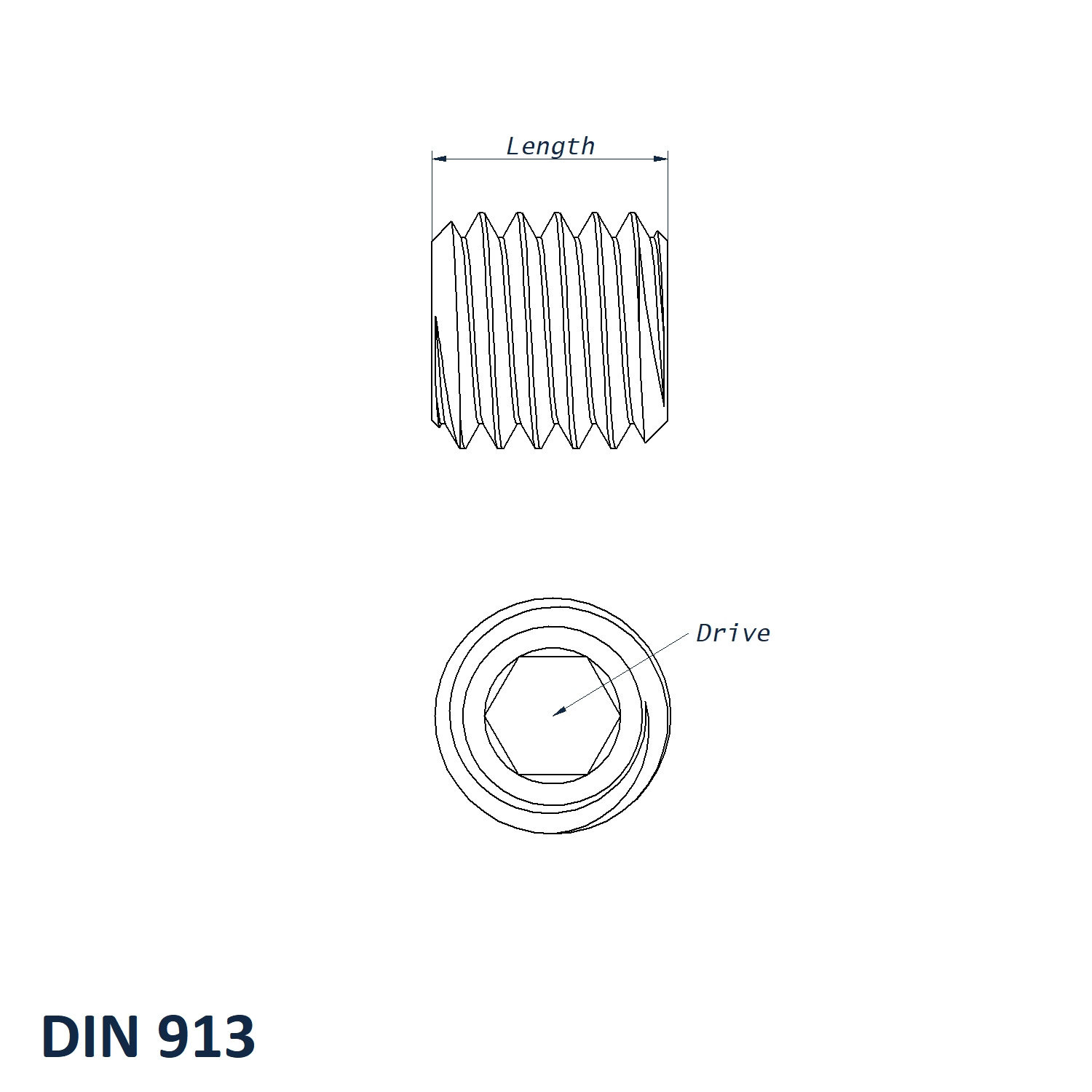

M5 x 20mm Class 45H Steel BZP Flat Point Socket Grub Screw Dimensions
- Thread Size: M5
- Length: 20mm
- Pitch: 0.80mm
- End Type: Flat
- Drive: H2.5
- Material: Class 45H Steel BZP
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
