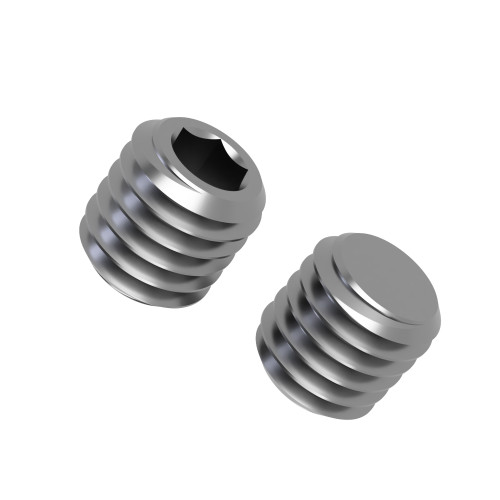

M12 x 50mm Socket Grub Screw - Flat Point (DIN 913) - Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.98 | £1.18 |
| 100 - 499 | £0.96 | £1.15 |
| 500 - 999 | £0.80 | £0.96 |
| 1000 - 4999 | £0.68 | £0.81 |
| 5000 - 9999 | £0.59 | £0.71 |
| 10000 + | £0.57 | £0.68 |
Product Specification
| Thread Size | M12 |
| Length | 50.0mm |
| Pitch | 1.75mm |
| End Type | Flat |
| Drive | H6 |
| Standard | DIN 913 / ISO 4026 |
| Material | Class 45H Steel BZP |
Frequently Bought Together
Total Price: £0.00
M12 x 50mm Flat Point Socket Grub Screw | H6 Drive | Class 45H Steel BZP
Designed for machine guarding, this M12 x 50mm DIN 913 grub screw gives engineers a neat way to lock parts in position. The flat end type spreads contact across the mating face while the H6 drive supports controlled tightening with a hex key. This makes it useful as a flat point grub screw in guard posts, hinge bars and stop blocks where supports discreet fixing where raised heads may snag.
Class 45H steel BZP is well matched to machinery spares, production jigs and non-stainless assemblies that need a robust flat point set screw. The flat point design is especially useful when the retained part may need to be repositioned because the end sits evenly against the contact face. It gives a strong plated steel alternative where stainless steel is not required.
Common Applications
- Guard posts, hinge bars and stop blocks using a M12 x 50mm flat point set screw
- Inspection gauges and calibration fixtures
- Furniture or display hardware requiring concealed fixing
- Light engineering assemblies with removable set points
Key Features and Benefits
- Headless profile is ideal where the outer face must remain smooth or unobstructed
- Flat tip provides stable seating against a shaft, plate or internal stop surface
- Precise metric sizing supports replacement work on equipment already using DIN 913 screws
- Supplied in practical sizes for engineering, repair and small batch manufacture

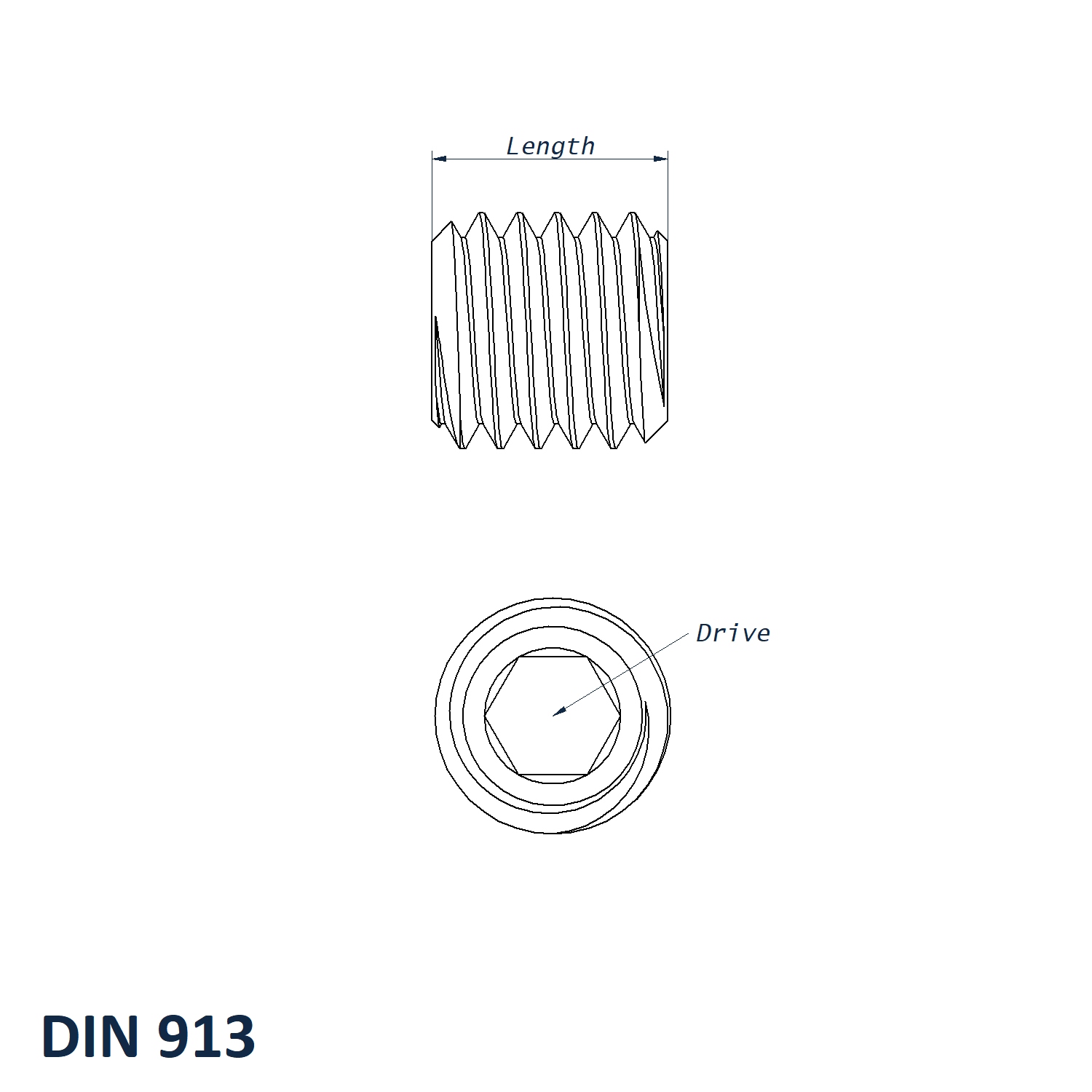

M12 x 50mm Class 45H Steel BZP Flat Point Socket Grub Screw Dimensions
- Thread Size: M12
- Length: 50mm
- Pitch: 1.75mm
- End Type: Flat
- Drive: H6
- Material: Class 45H Steel BZP
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
