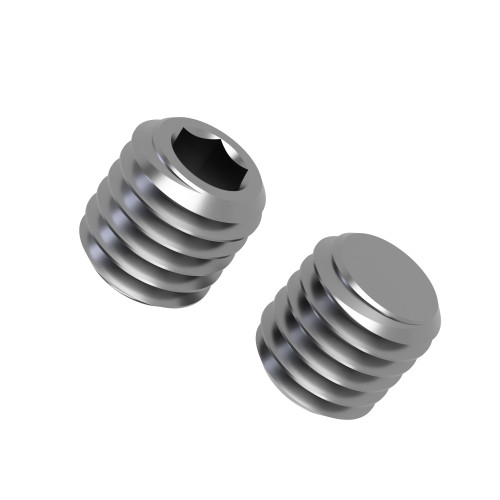

M10 x 20mm Socket Grub Screw - Flat Point (DIN 913) - Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.27 | £0.32 |
| 100 - 499 | £0.26 | £0.31 |
| 500 - 999 | £0.22 | £0.26 |
| 1000 - 4999 | £0.18 | £0.22 |
| 5000 - 9999 | £0.16 | £0.19 |
| 10000 + | £0.15 | £0.18 |
Product Specification
| Thread Size | M10 |
| Length | 20.0mm |
| Pitch | 1.50.0mm |
| End Type | Flat |
| Drive | H5 |
| Standard | DIN 913 / ISO 4026 |
| Material | Class 45H Steel BZP |
Frequently Bought Together
Total Price: £0.00
M10 x 20mm Flat Point Socket Grub Screw | H5 Drive | Class 45H Steel BZP
This M10 x 20mm Allen key grub screw is a useful headless fixing for robotics and automation. The flat end type is selected where broad contact is preferred over a cup or cone point, helping reduce marking on the retained component. It is a practical hex socket set screw for robot cells, sensor brackets and actuator mounts where keeps compact assemblies clear of protruding screw heads.
Class 45H steel with a BZP finish provides a hard, cost-effective set screw for dry industrial assemblies, machinery repairs and general workshop use. The flat point design is especially useful when the retained part may need to be repositioned because the end sits evenly against the contact face. It gives a strong plated steel alternative where stainless steel is not required.
Common Applications
- Robot cells, sensor brackets and actuator mounts using a M10 x 20mm flat point set screw
- Access panel hardware and small mechanical linkages
- OEM equipment builds using metric tapped holes
- Machine guarding fixtures with limited clearance
Key Features and Benefits
- Headless profile is ideal where the outer face must remain smooth or unobstructed
- Flat tip provides stable seating against a shaft, plate or internal stop surface
- Precise metric sizing supports replacement work on equipment already using DIN 913 screws
- Supplied in practical sizes for engineering, repair and small batch manufacture

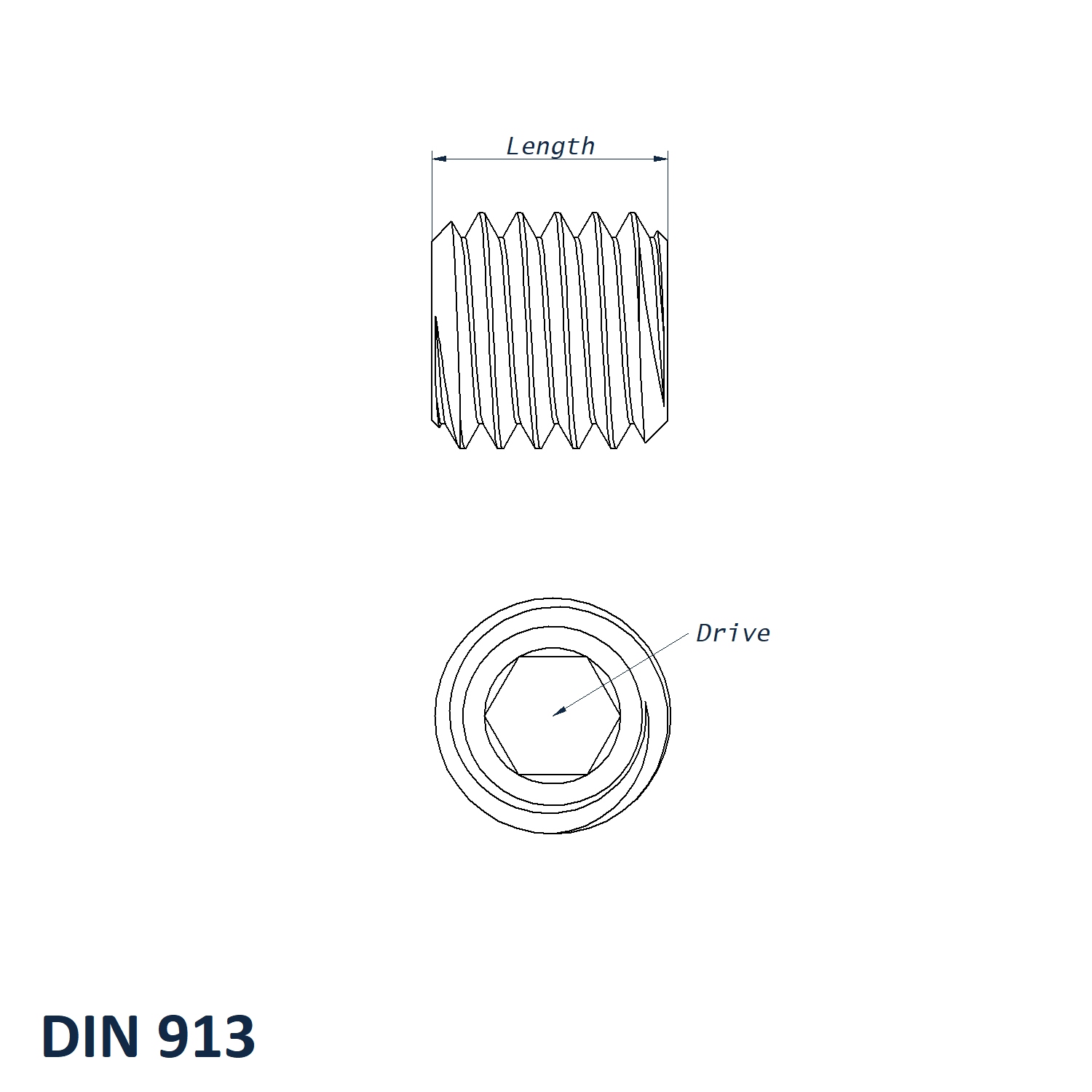

M10 x 20mm Class 45H Steel BZP Flat Point Socket Grub Screw Dimensions
- Thread Size: M10
- Length: 20mm
- Pitch: 1.50.0mm
- End Type: Flat
- Drive: H5
- Material: Class 45H Steel BZP
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
