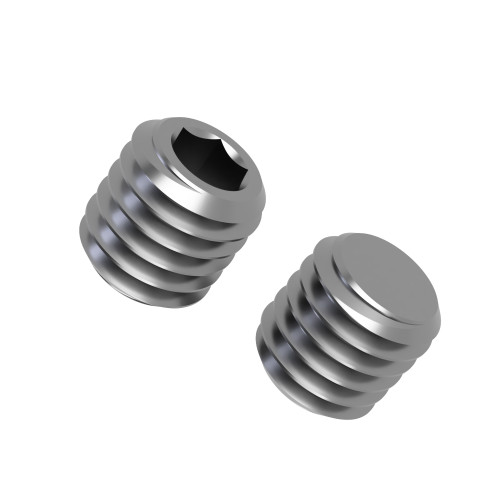

M12 x 16mm Socket Grub Screw - Flat Point (DIN 913) - Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.25 | £0.30 |
| 100 - 499 | £0.24 | £0.29 |
| 500 - 999 | £0.20 | £0.24 |
| 1000 - 4999 | £0.17 | £0.20 |
| 5000 - 9999 | £0.15 | £0.18 |
| 10000 + | £0.14 | £0.17 |
Product Specification
| Thread Size | M12 |
| Length | 16.0mm |
| Pitch | 1.75mm |
| End Type | Flat |
| Drive | H6 |
| Standard | DIN 913 / ISO 4026 |
| Material | Class 45H Steel BZP |
Frequently Bought Together
Total Price: £0.00
M12 x 16mm Flat Point Socket Grub Screw | H6 Drive | Class 45H Steel BZP
The M12 x 16mm socket grub screw with flat point is intended for laboratory equipment and similar precision assemblies. A 1.75mm thread pitch gives consistent engagement while the flat point supports contact on shafts, collars and machined faces. It is a practical hex socket set screw for benchtop frames, instrument mounts and calibration fixtures where allows controlled adjustment without bulky external heads.
Class 45H steel with a BZP finish provides a hard, cost-effective set screw for dry industrial assemblies, machinery repairs and general workshop use. Its DIN 913 form is often chosen for collars, hubs and adjustment points where a cup point would be too aggressive for the surface being retained. It gives a strong plated steel alternative where stainless steel is not required.
Common Applications
- Benchtop frames, instrument mounts and calibration fixtures using a M12 x 16mm flat point set screw
- Pump and valve actuator components
- Fabricated frame adjustment points
- Toolmaking blocks and fixture stops
Key Features and Benefits
- Useful for locking shafts, collars and stops after alignment has been checked
- Socket drive keeps the fixing accessible even where side clearance is limited
- Flat point end type reduces localised marking compared with sharper set screw points
- Available as part of a wider metric grub screw range for stocked maintenance spares

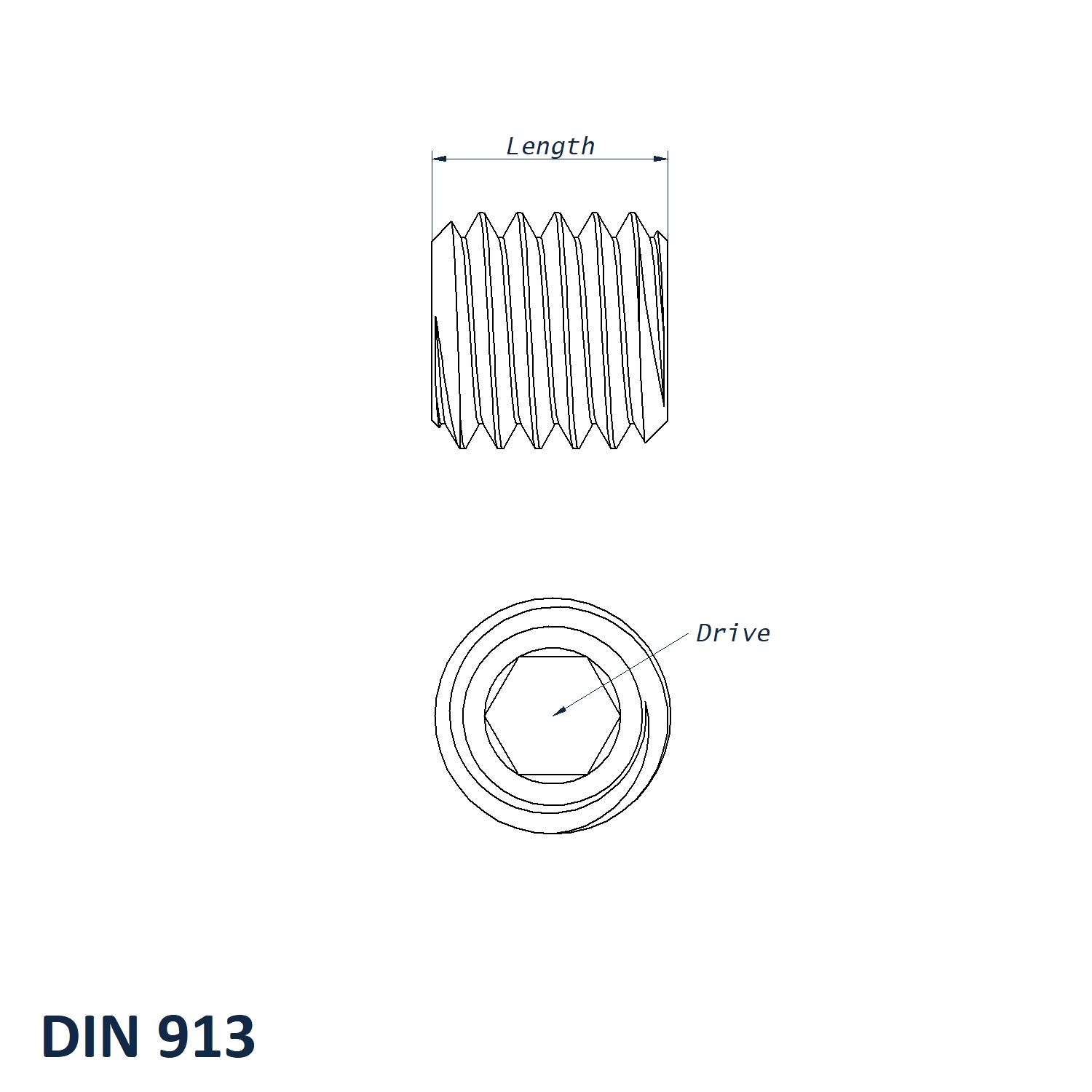

M12 x 16mm Class 45H Steel BZP Flat Point Socket Grub Screw Dimensions
- Thread Size: M12
- Length: 16mm
- Pitch: 1.75mm
- End Type: Flat
- Drive: H6
- Material: Class 45H Steel BZP
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
