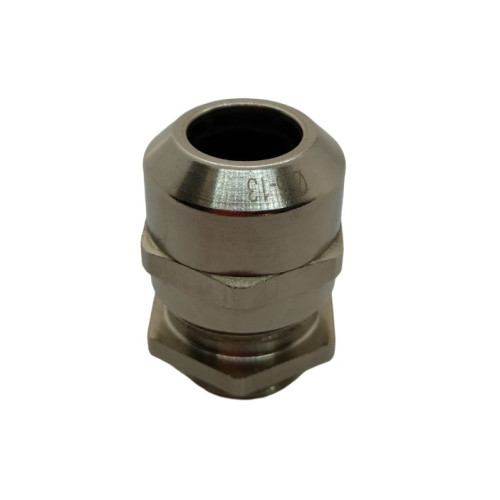

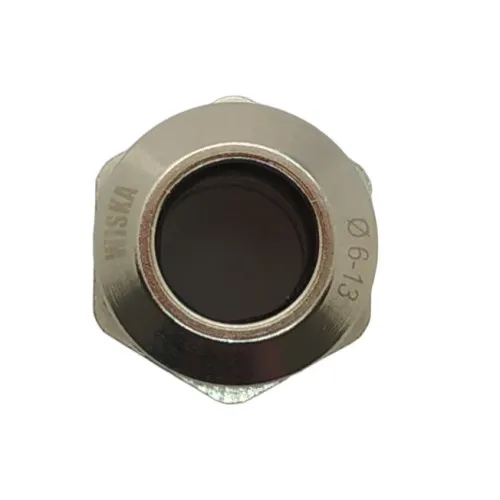

M40 x 1.5mm Threaded Brass Cable Gland (IP68) 16 - 28mm Cable | Nickel Plated - Waterproof
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £23.82 | £28.58 |
| 10 - 24 | £23.21 | £27.85 |
| 25 - 49 | £21.93 | £26.31 |
| 50 + | £21.48 | £25.78 |
£28.58 / each
Product Specification
| Thread Size | M40 x 1.5mm |
| Cable Diameter | 16.0 - 28.0mm |
| Thread Length | 8.0mm |
| Total Length | 44 - 55mm |
| Style | Straight-through |
| Material | Brass |
| Colour/Finish | Nickel Plated |
| IP Rating | IP68 |
Frequently Bought Together
Total Price: £0.00
M40 x 1.5mm Nickel Plated Brass Threaded Cable Gland – 16 - 28mm Cable (IP68)
Use this nickel-plated brass cable gland to bring a 16 - 28mm cable through a compatible M40 x 1.5mm entry in electrical distribution enclosures. The straight-through arrangement provides a direct cable route while the 8mm threaded section makes the fitting suitable for a corresponding threaded opening. Listed protection: IP68.
What Are Threaded Brass Cable Glands?
Threaded Brass Cable Glands are cable entry fittings positioned in a matching threaded opening. A cable passes through the gland and the compression mechanism grips the outer cable sheath to help secure the entry. This version is made from Brass with a Nickel Plated finish and uses the M40 x 1.5mm thread format.
Common Applications
- Control panels: Guide cables with a 16 - 28mm outer diameter into electrical control panels using a compatible M40 x 1.5mm entry.
- Machine enclosures: Provide a defined straight-through cable entry on machinery with a matching metric mounting thread.
- Electrical cabinets: Organise cable entry points in distribution or automation cabinets while selecting the stated IP68 gland.
- Instrumentation: Route instrument or sensor leads through a correctly sized cable entry in an equipment housing.

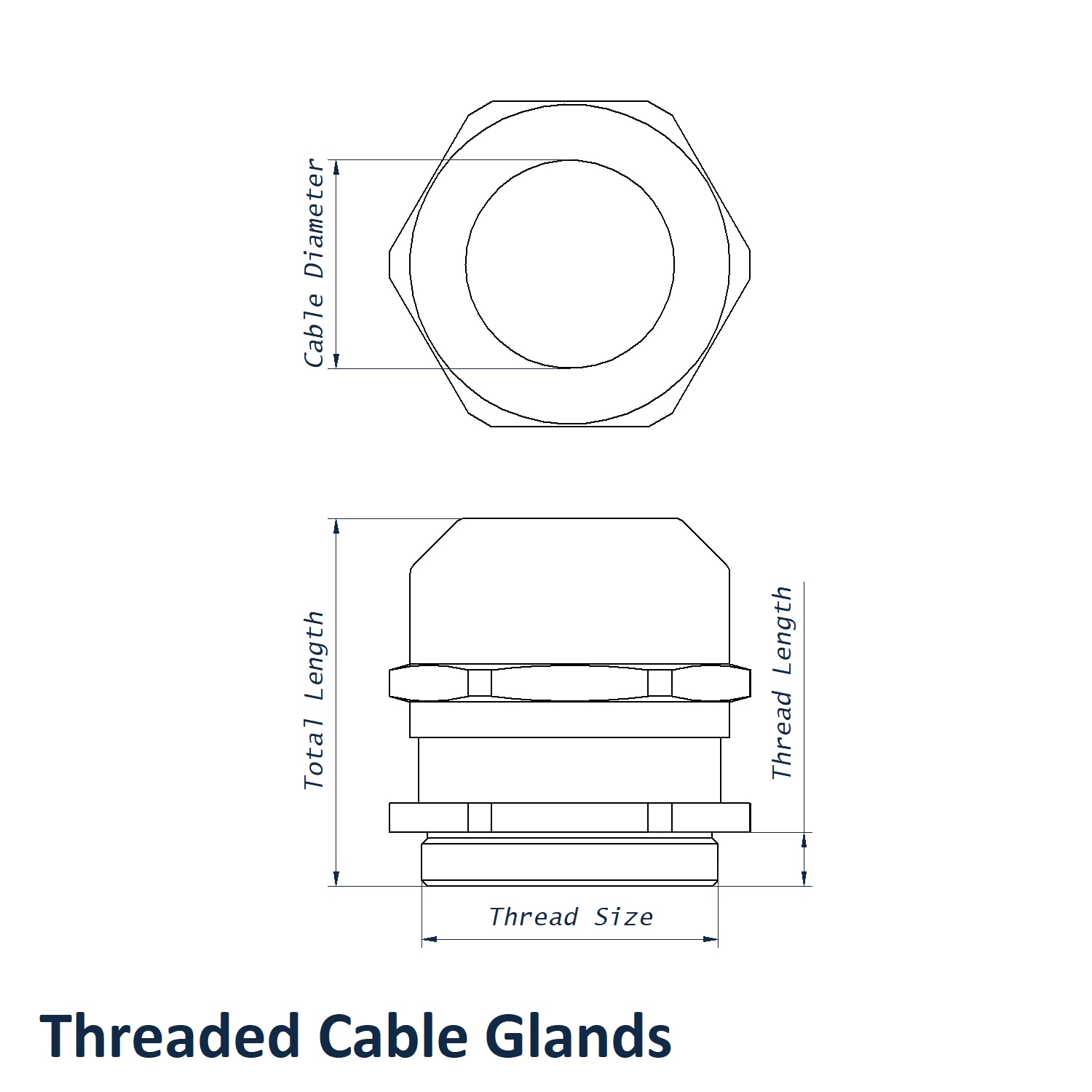

M40 x 1.5mm Threaded Brass Cable Gland Dimensions
- Thread Size: M40 x 1.5mm
- Cable Diameter: 16.0 - 28.0mm
- Thread Length: 8.0mm
- Total Length: 44 - 55mm
- IP Rating: IP68
- Style: Straight-through
- Material: Brass
- Colour/Finish: Nickel Plated
Key Benefits
- Accepts the specified 16 - 28mm cable diameter range for accurate gland selection.
- Provides a 8mm thread length for checking panel entry compatibility.
- Nickel-plated brass construction offers a metal gland body with the specified finish.
- IP68 ingress protection classification for the stated gland design.
Browse more threaded brass cable glands to compare thread connections and cable diameter options. If you need help selecting the correct size, call us on 01233 713581.
