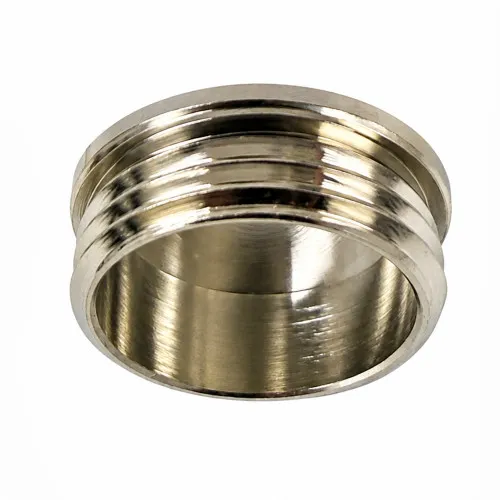

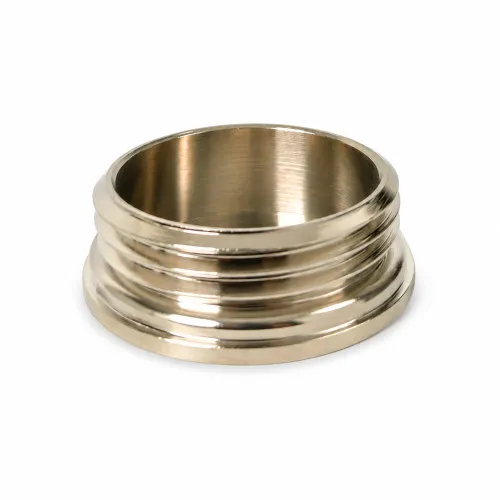

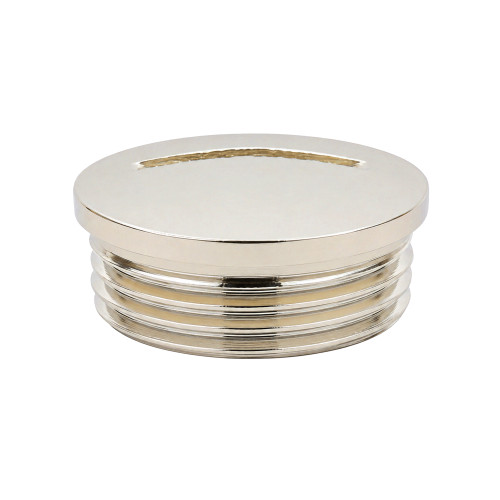

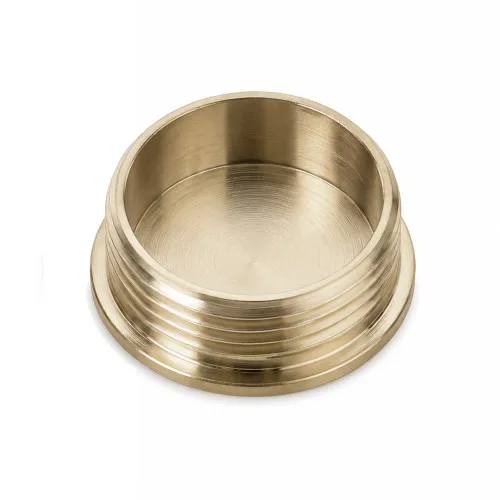

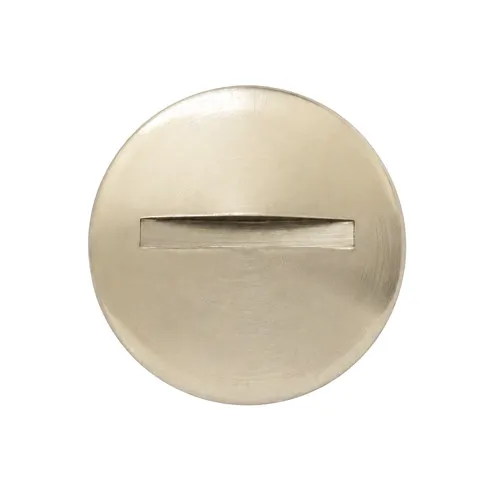

M40 Nickel Plated Brass Cable Gland Blanking Plug (IP54) | Self-Colour
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £4.96 | £5.95 |
| 25 - 49 | £4.86 | £5.83 |
| 50 - 99 | £4.67 | £5.61 |
| 100 - 499 | £4.50 | £5.40 |
| 500 + | £4.34 | £5.21 |
£5.95 / each
Product Specification
| Size | M40 x 1.5mm |
| Material | Nickel Plated Brass |
| Colour | Self-colour |
| IP Rating | IP54 |
| Temperature Range | -200 °C - 250 °C |
| Head Diameter | 44mm |
| Thread Length | 8.5mm |
| Total Length | 13.0mm |
Frequently Bought Together
M40 x 1.5mm Threaded Brass Cable Gland (IP68) 16 - 28mm Cable | Nickel Plated - Waterproof

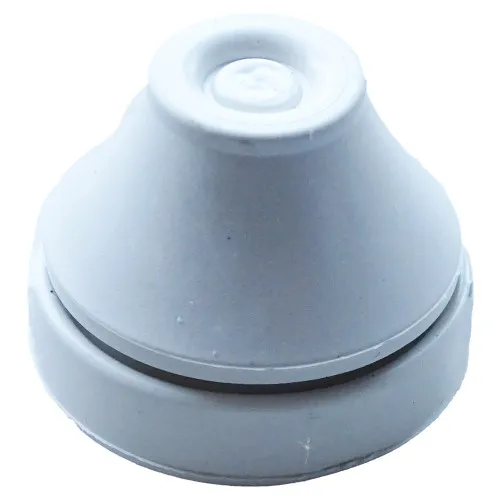

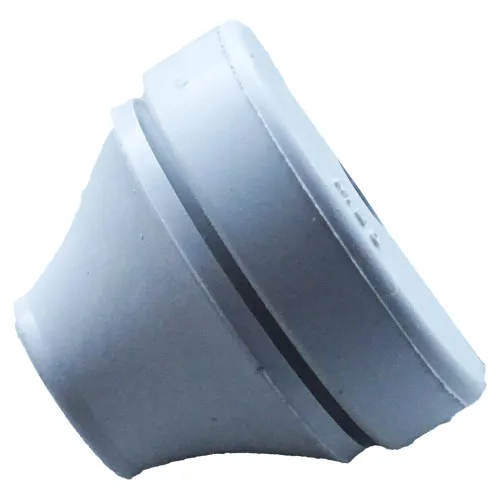

40.5mm Self Sealing Grommet IP67 – Conical – 19-28mm Cable (1-4mm Panel) | Light Grey EPDM
Total Price: £0.00
M40 x 1.5mm Threaded Stop End | Self-Colour Nickel Plated Brass
Manufactured for commercial machinery requiring a metal threaded closure, this M40 x 1.5mm Threaded Stop End combines Nickel Plated Brass construction with a 8.5mm threaded section. Its 44mm head diameter and 13.0mm overall length provide clear sizing references while the screw-in design creates a removable closure for exposed threaded holes.
What Are Nickel Plated Brass Threaded Stop Ends?
Nickel Plated Brass Threaded Stop Ends are male-threaded closures designed to screw into unused female threads. The brass body and plated finish provide a robust metal option for enclosures, machinery and engineering assemblies.
Common Applications
- Maintenance and Servicing: Keeps redundant ports closed while allowing the stop end to be removed if future access is required.
- Instrument Housings: Provides a compact threaded closure for spare openings on suitable instruments and equipment.
- Machinery and Industrial Equipment: Closes unused threaded holes on machinery, housings and fabricated equipment while keeping the opening accessible for future servicing.
- Automotive Components: Closes redundant threaded openings on suitable vehicle, workshop and mechanical components.

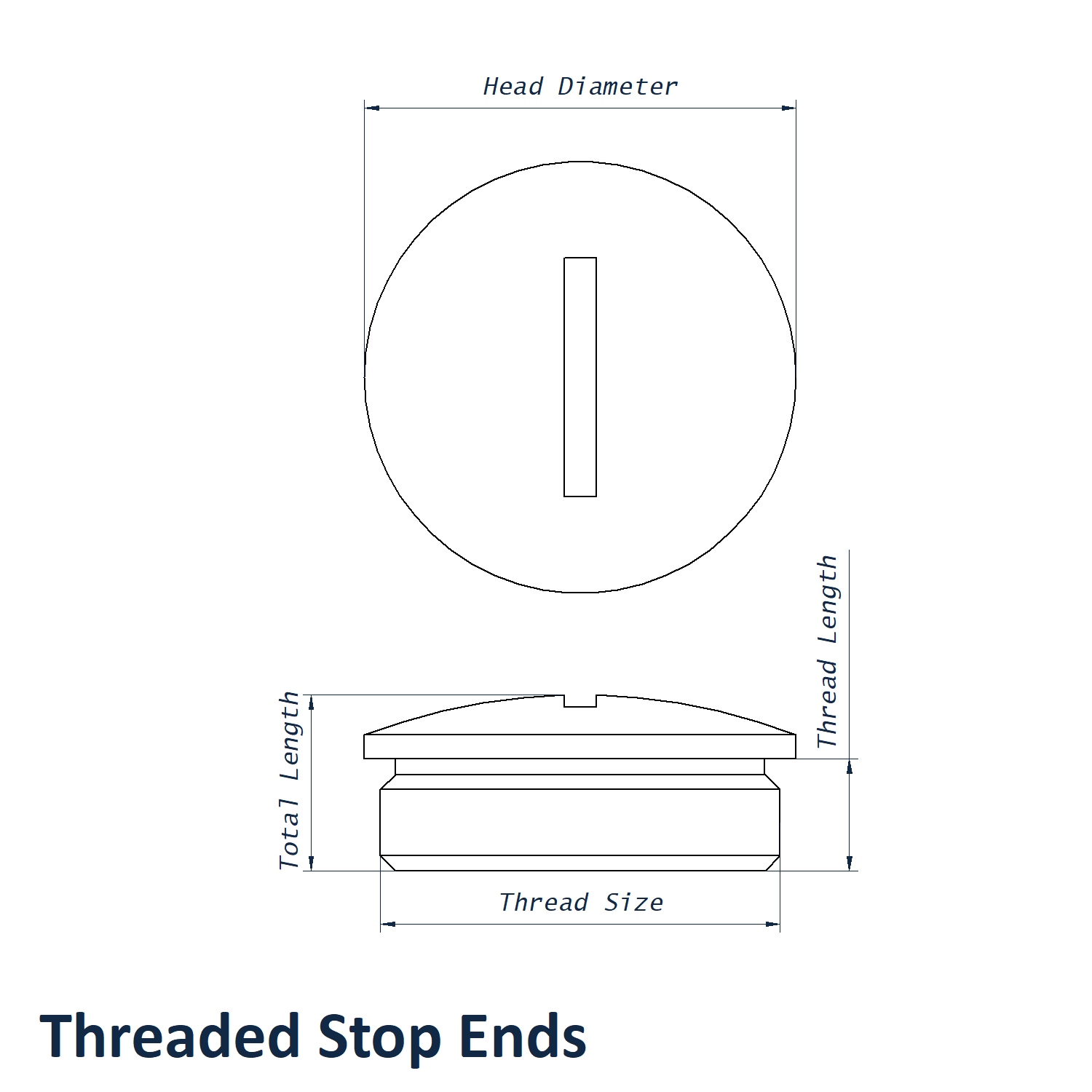

M40 x 1.5mm Nickel Plated Brass Threaded Stop End Dimensions
- Size: M40 x 1.5mm
- Thread Length: 8.5mm
- Total Length: 13.0mm
- Head Diameter: 44mm
- IP Rating: IP54
- Temperature Range: -200 °C - 250 °C
- Material: Nickel Plated Brass
- Colour: Self-Colour
Key Benefits
- IP54 rating is retained exactly from the supplied product data.
- Self-Colour specification is retained exactly from the uploaded data.
- Suitable for electrical enclosures, machinery panels and engineering assemblies.
- 44mm head diameter provides the stated finished outside dimension.
Browse the full Threaded Stop Ends range for removable closures used on machinery, enclosures and engineering assemblies. Technical support is available on 01233 713581.
