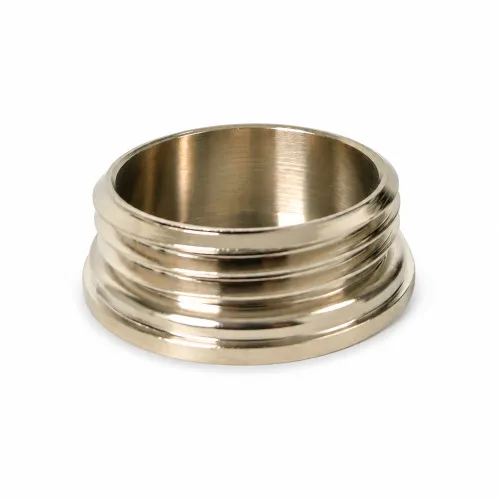

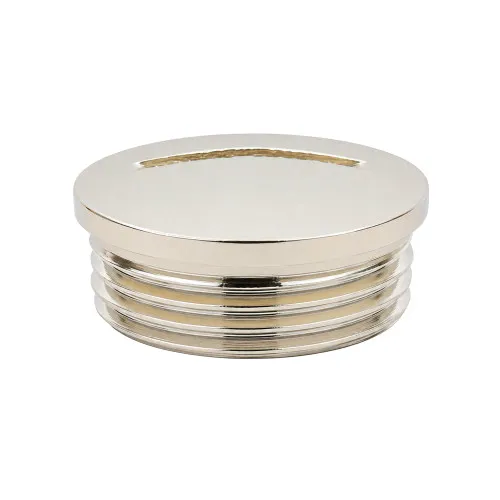

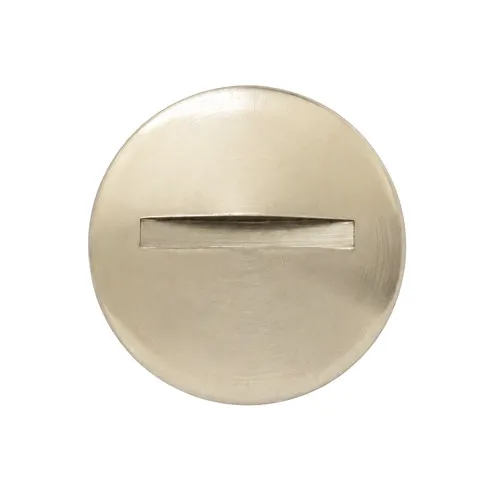

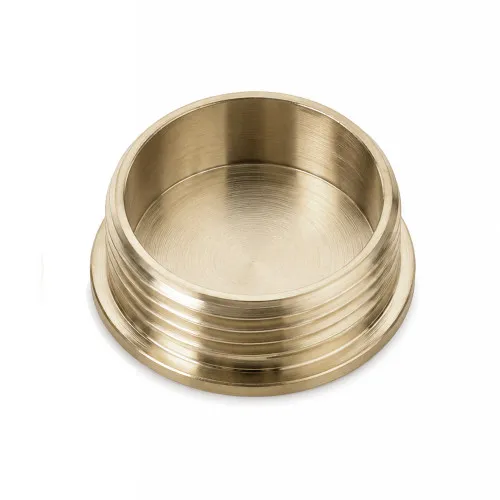

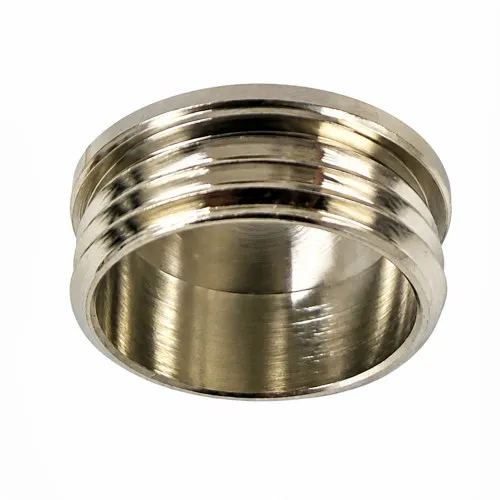

M25 Nickel Plated Brass Cable Gland Blanking Plug (IP54) | Self-Colour
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £1.63 | £1.96 |
| 25 - 49 | £1.60 | £1.92 |
| 50 - 99 | £1.54 | £1.85 |
| 100 - 499 | £1.48 | £1.78 |
| 500 + | £1.43 | £1.71 |
£1.96 / each
Product Specification
| Size | M25 x 1.5mm |
| Material | Nickel Plated Brass |
| Colour | Self-colour |
| IP Rating | IP54 |
| Temperature Range | -200 °C - 250 °C |
| Head Diameter | 27mm |
| Thread Length | 7.0mm |
| Total Length | 11.0mm |
Frequently Bought Together
M25 x 1.5mm Threaded Brass Cable Gland (IP68) 9 - 17mm Cable | Nickel Plated - Waterproof

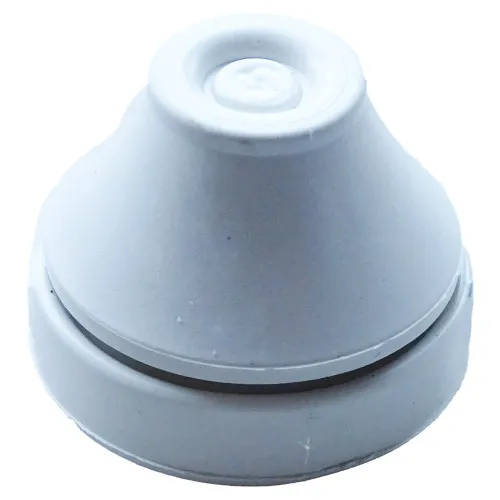

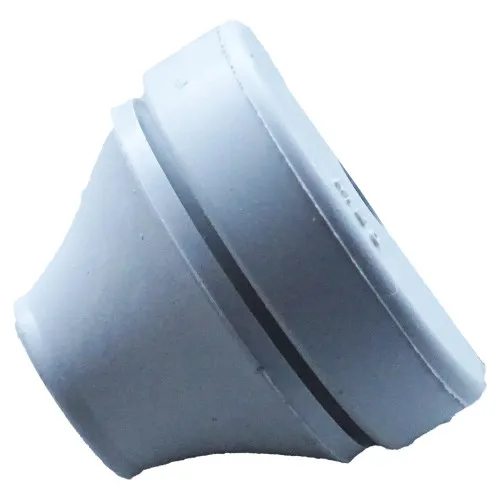

25.5mm Self Sealing Grommet IP67 – Conical – 11-17mm Cable (1-4mm Panel) | Light Grey EPDM
Total Price: £0.00
M25 x 1.5mm Threaded Stop End | Self-Colour Nickel Plated Brass
This M25 x 1.5mm Nickel Plated Brass Threaded Stop End is intended for engineering assemblies and fabricated metalwork. The Self-Colour component screws directly into a matching female thread and combines a 7.0mm thread length with the supplied IP54 rating and -200 °C - 250 °C operating range.
What Are Nickel Plated Brass Threaded Stop Ends?
Nickel Plated Brass threaded plugs protect unused threaded openings from dirt and debris while providing a finished appearance. Their screw-in design allows installation without specialist equipment and removal for servicing or future modification.
Common Applications
- Workshop Equipment: Protects exposed threads on jigs, fixtures, machines and maintenance assemblies.
- Machinery and Industrial Equipment: Closes unused threaded holes on machinery, housings and fabricated equipment while keeping the opening accessible for future servicing.
- Automotive Components: Closes redundant threaded openings on suitable vehicle, workshop and mechanical components.
- Manufacturing: Provides a repeatable threaded closure for unused openings during assembly and production.

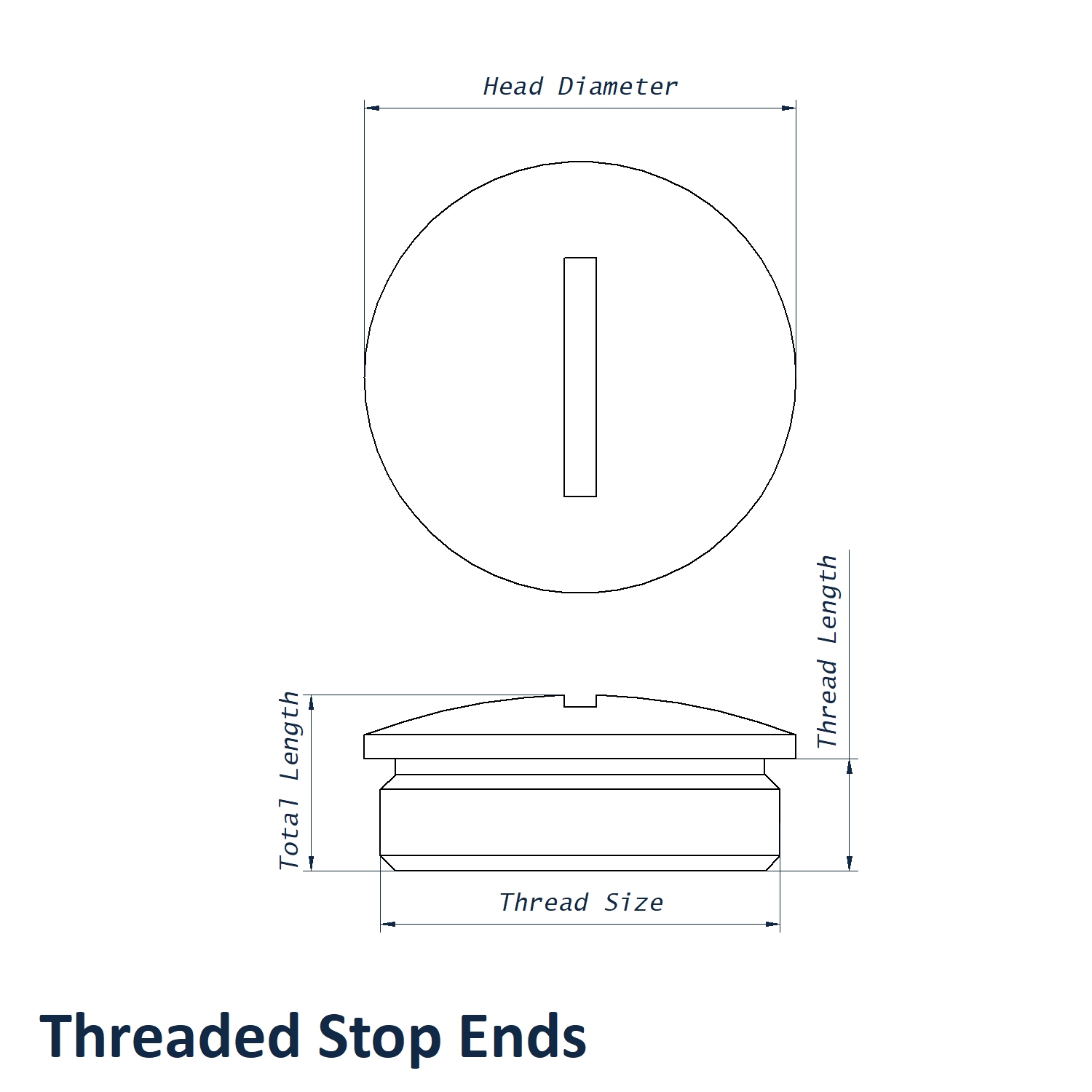

M25 x 1.5mm Nickel Plated Brass Threaded Stop End Dimensions
- Size: M25 x 1.5mm
- Thread Length: 7.0mm
- Total Length: 11.0mm
- Head Diameter: 27mm
- IP Rating: IP54
- Temperature Range: -200 °C - 250 °C
- Material: Nickel Plated Brass
- Colour: Self-Colour
Key Benefits
- 7.0mm thread length and 11.0mm total length match the uploaded SKU specification.
- -200 °C - 250 °C temperature range matches the uploaded specification.
- Self-Colour specification is retained exactly from the uploaded data.
- M25 x 1.5mm metric thread provides a clear compatibility reference.
Further options are available through the Vital Parts Threaded Stop Ends category in A1 Stainless Steel, Nickel Plated Brass and Nylon. For sizing or material support, speak with our team on 01233 713581.
