4mm x 10mm Torx Pan Screw for Hard Plastics (PT45) - T15 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.59 | £0.71 |
| 50 - 99 | £0.36 | £0.43 |
| 100 - 249 | £0.23 | £0.28 |
| 250 - 499 | £0.17 | £0.21 |
| 500 - 999 | £0.15 | £0.18 |
| 1000 - 4999 | £0.12 | £0.14 |
| 5000 + | £0.09 | £0.11 |
£0.71 / each
.png)
Product Specification
| Thread Size | 4.0mm |
| Thread Length | 10mm |
| Material | A2 Stainless Steel |
| Head Diameter | 7.00mm |
| Head Height | 2.45mm |
| Drive | T15 |
| Head Style | Pan |
Frequently Bought Together
Total Price: £0.00

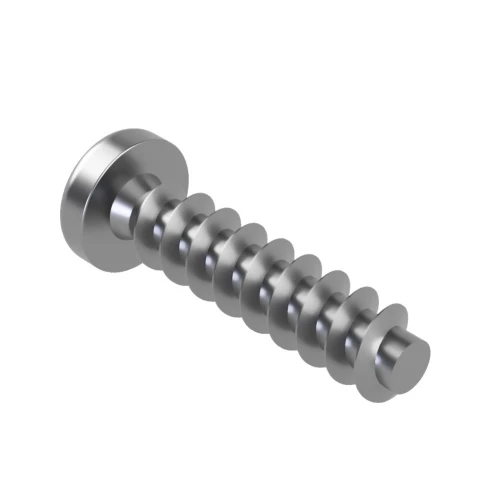

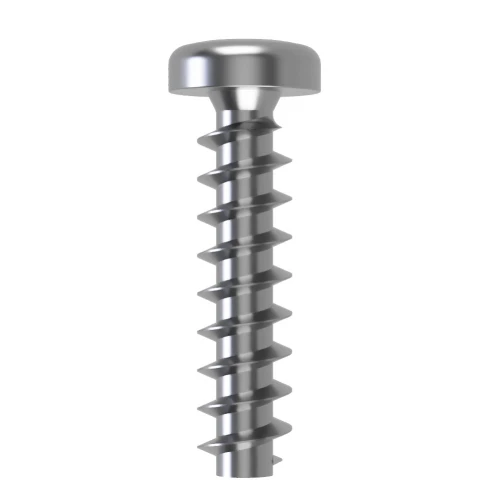

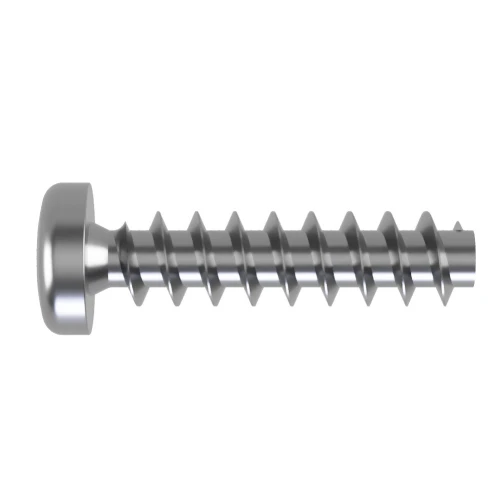

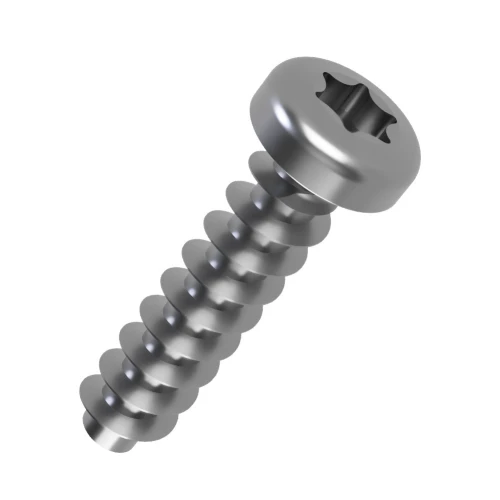

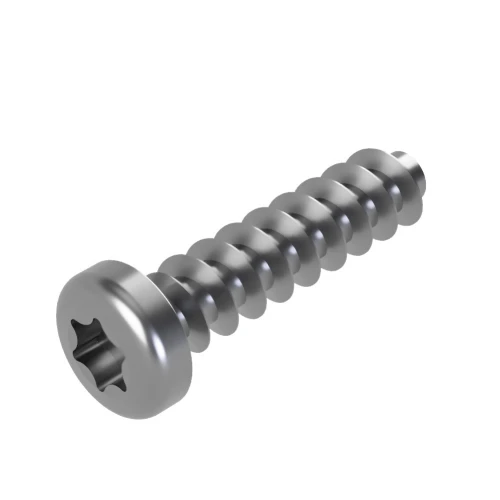

4mm x 10mm Torx Pan PT45 Screw for Hard Plastics | A2 Stainless Steel
Suitable for outdoor hard-plastic equipment and housings, this 4mm x 10mm Torx Pan screw uses the PT45 thread geometry intended for harder plastic components. The three-lobed thread body concentrates forming pressure at specific points while the T15 drive helps transfer installation torque efficiently.
What Are Torx Pan PT45 Screws?
PT45 Torx Pan Screws use a three-lobed thread body that concentrates forming pressure around three points of the pilot hole. This geometry allows the screw to form a mating thread in harder plastics while using less torque than an equivalent fully round thread form.
Common Applications
- Polycarbonate Housings: Forms a secure thread in suitable polycarbonate covers, cases and enclosure components.
- Automotive Components: Fastens rigid plastic trim, housings and moulded components used in vehicle assemblies.
- Manufactured Plastic Parts: Supports repeatable assembly of moulded hard-plastic components with correctly sized pilot holes.
- Furniture Components: Secures suitable engineering-plastic fittings and components used in furniture manufacture.

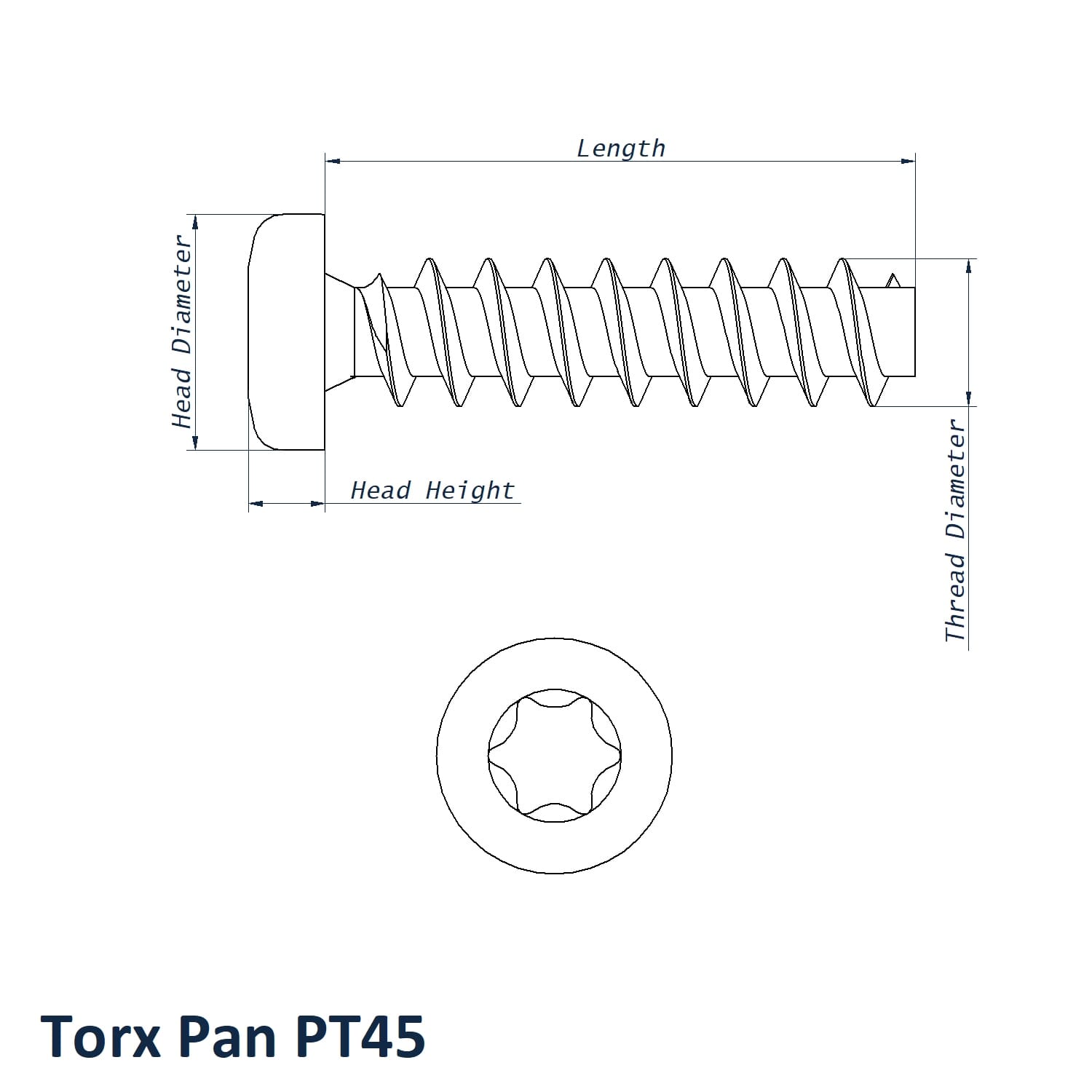

4mm x 10mm Torx Pan PT45 Screw Dimensions
- Thread Size: 4.0mm
- Thread Length: 10mm
- Head Diameter: 7.00mm
- Head Height: 2.45mm
- Drive: T15
- Material: A2 Stainless Steel
- Head Style: Pan
Key Benefits
- PT45 geometry provides a strong drive-to-strip ratio for compatible hard-plastic assemblies.
- The wider Torx Pan PT45 range includes Bright Zinc Plated Steel, Black Zinc Plated Steel and A2 Stainless Steel options.
- 4mm thread size and 10mm thread length provide the primary fastening dimensions.
- Trilobular geometry concentrates thread-forming pressure at three points rather than around a fully round profile.
Compare other sizes in the Vital Parts Torx Pan PT45 Screw range. Our Engineering Guide to Screws for Plastic explains PT45 trilobular threads, pilot holes and boss sizing in more detail. For product selection support, speak with our team on 01233 713581.
