4mm x 6mm Torx Pan Screw for Hard Plastics (PT45) - T15 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.88 | £1.06 |
| 50 - 99 | £0.53 | £0.63 |
| 100 - 249 | £0.35 | £0.42 |
| 250 - 499 | £0.27 | £0.32 |
| 500 - 999 | £0.22 | £0.26 |
| 1000 - 4999 | £0.17 | £0.21 |
| 5000 + | £0.13 | £0.16 |
£1.06 / each
.png)
Product Specification
| Thread Size | 4.0mm |
| Thread Length | 6mm |
| Material | A2 Stainless Steel |
| Head Diameter | 7.00mm |
| Head Height | 2.45mm |
| Drive | T15 |
| Head Style | Pan |
Frequently Bought Together
Total Price: £0.00
4mm x 6mm Torx Pan PT45 Screw for Hard Plastics | A2 Stainless Steel

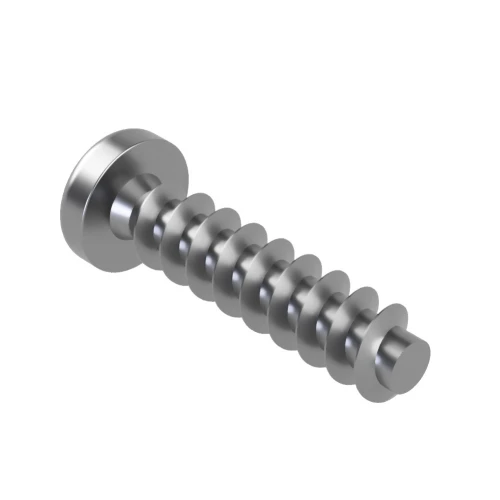

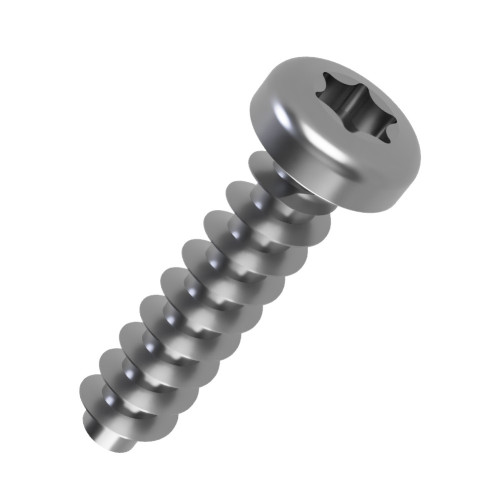

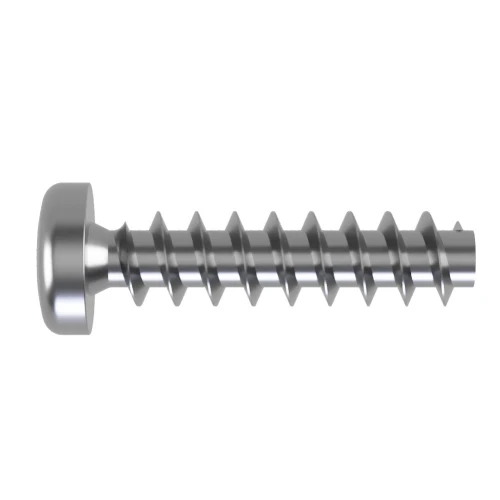

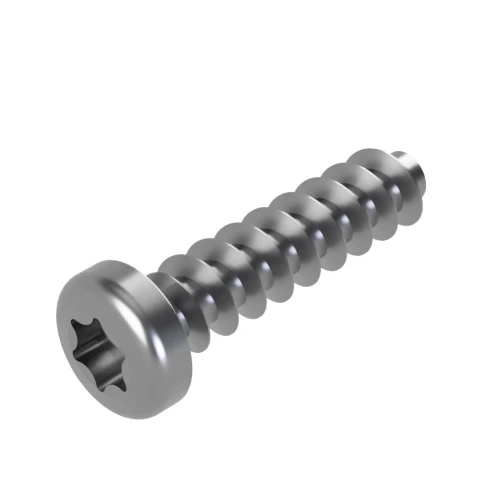

This 4mm x 6mm PT45 Screw is intended for applications where improved corrosion resistance is required. It uses a Pan head, T15 Torx recess and A2 Stainless Steel construction with a trilobular thread form developed for hard-plastic fastening.
What Are Torx Pan PT45 Screws?
PT45 Torx Pan Screws use a three-lobed thread body that concentrates forming pressure around three points of the pilot hole. This geometry allows the screw to form a mating thread in harder plastics while using less torque than an equivalent fully round thread form.
Common Applications
- Appliance Housings: Provides a dedicated fastening method for rigid plastic covers, panels and moulded parts.
- Lighting Products: Secures rigid plastic bezels, covers and housings used in suitable lighting equipment.
- Polycarbonate Housings: Forms a secure thread in suitable polycarbonate covers, cases and enclosure components.
- Automotive Components: Fastens rigid plastic trim, housings and moulded components used in vehicle assemblies.

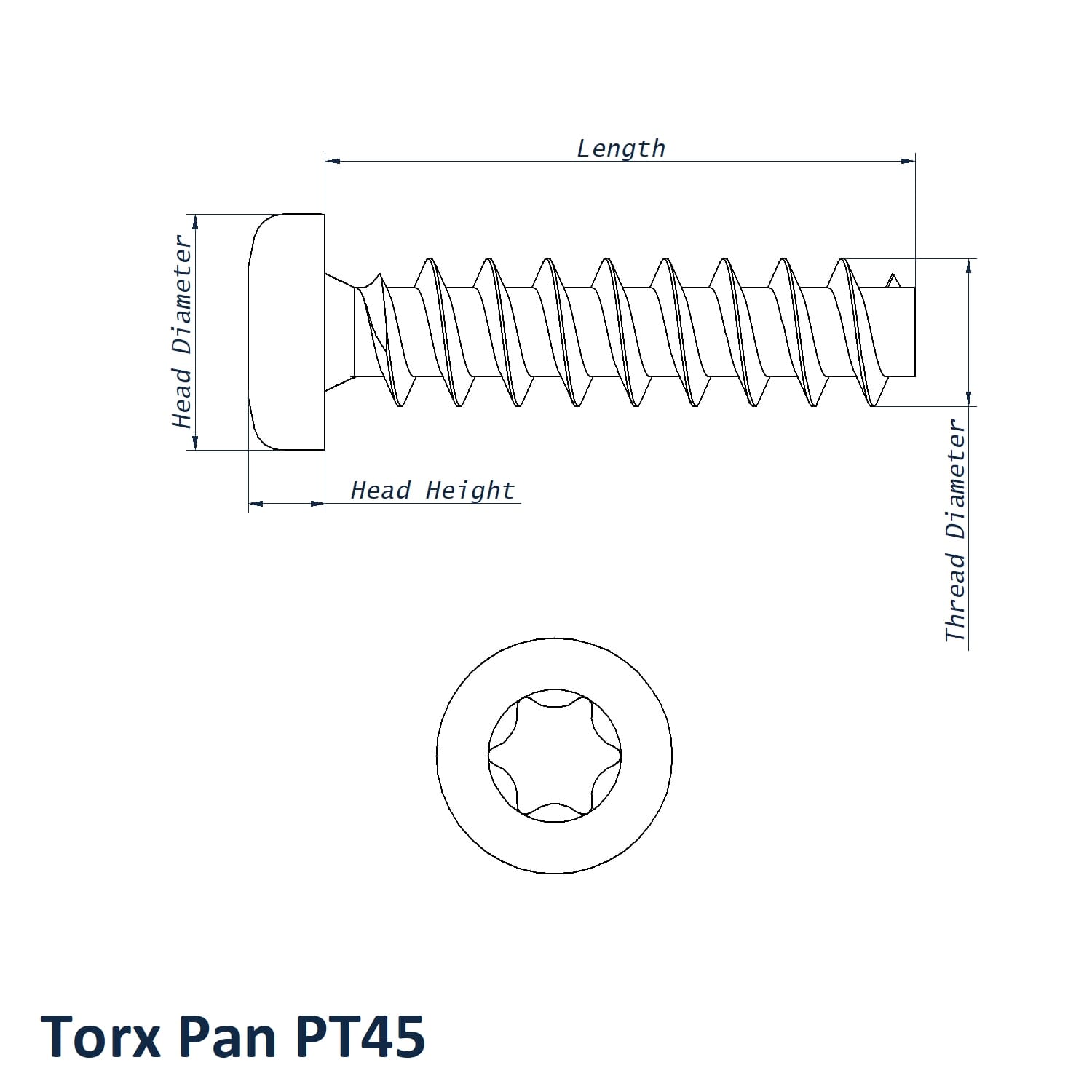

4mm x 6mm Torx Pan PT45 Screw Dimensions
- Thread Size: 4.0mm
- Thread Length: 6mm
- Head Diameter: 7.00mm
- Head Height: 2.45mm
- Drive: T15
- Material: A2 Stainless Steel
- Head Style: Pan
Key Benefits
- Trilobular geometry concentrates thread-forming pressure at three points rather than around a fully round profile.
- A2 Stainless Steel provides improved corrosion resistance for more demanding hard-plastic fastening environments.
- Correct pilot-hole diameter, boss size and engagement length should be selected for the material being assembled.
- 45° trilobular PT45 thread form is designed for harder plastics and reinforced materials.
View the complete Torx Pan PT45 Screws for Hard Plastics range for alternative sizes and materials. For guidance on PT30 vs PT45 threads, pilot-hole sizing, boss design and torque selection, read our Engineering Guide to Screws for Plastic. For further help, contact the Vital Parts technical sales team on 01233 713581.
