4mm x 12mm Torx Pan Screw for Hard Plastics (PT45) - T15 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.89 | £1.07 |
| 50 - 99 | £0.53 | £0.64 |
| 100 - 249 | £0.36 | £0.43 |
| 250 - 499 | £0.27 | £0.32 |
| 500 - 999 | £0.23 | £0.27 |
| 1000 - 4999 | £0.17 | £0.21 |
| 5000 + | £0.13 | £0.16 |
£1.07 / each
.png)
Product Specification
| Thread Size | 4.0mm |
| Thread Length | 12mm |
| Material | A2 Stainless Steel |
| Head Diameter | 7.00mm |
| Head Height | 2.45mm |
| Drive | T15 |
| Head Style | Pan |
Frequently Bought Together
Total Price: £0.00
4mm x 12mm Torx Pan PT45 Screw for Hard Plastics | A2 Stainless Steel
Providing a dedicated fastening option for outdoor hard-plastic equipment and housings, this 4mm x 12mm Torx Pan PT45 Screw combines a 45° trilobular thread with A2 Stainless Steel. The design sits between a PT30 screw and a conventional self tapping screw which makes it well suited to harder plastics and fibre-reinforced materials.
What Are Torx Pan PT45 Screws?
Torx Pan PT45 screws are designed for moulded or predrilled pilot holes in harder plastics and reinforced materials. The Pan head provides a broad bearing surface while the Torx recess gives strong driver contact for manual or automated assembly.
Common Applications
- Polycarbonate Housings: Forms a secure thread in suitable polycarbonate covers, cases and enclosure components.
- Automotive Components: Fastens rigid plastic trim, housings and moulded components used in vehicle assemblies.
- Manufactured Plastic Parts: Supports repeatable assembly of moulded hard-plastic components with correctly sized pilot holes.
- Furniture Components: Secures suitable engineering-plastic fittings and components used in furniture manufacture.

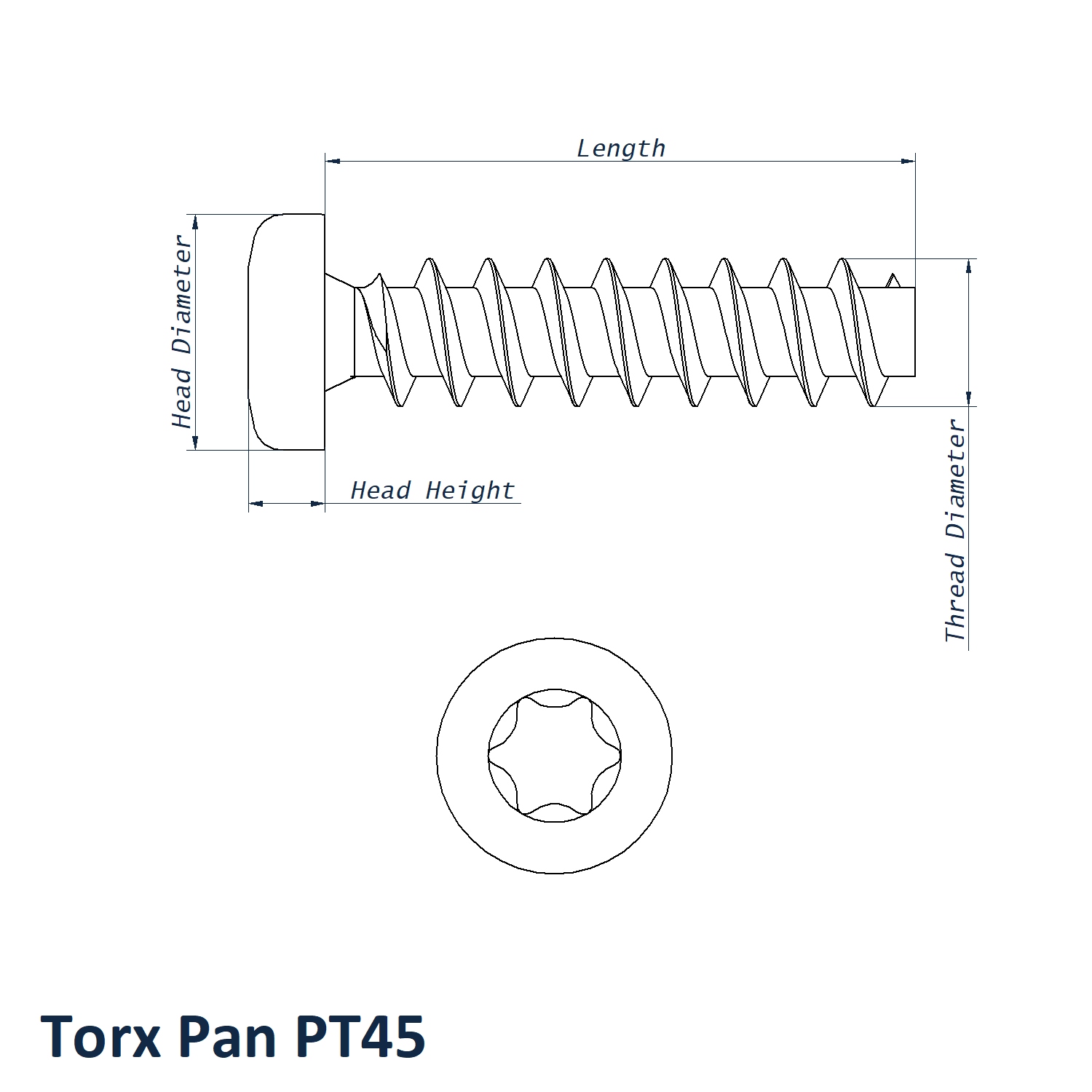

4mm x 12mm Torx Pan PT45 Screw Dimensions
- Thread Size: 4.0mm
- Thread Length: 12mm
- Head Diameter: 7.00mm
- Head Height: 2.45mm
- Drive: T15
- Material: A2 Stainless Steel
- Head Style: Pan
Key Benefits
- The wider Torx Pan PT45 range includes Bright Zinc Plated Steel, Black Zinc Plated Steel and A2 Stainless Steel options.
- 4mm thread size and 12mm thread length provide the primary fastening dimensions.
- T15 Torx drive provides positive engagement and efficient torque transfer.
- A2 Stainless Steel provides improved corrosion resistance for more demanding hard-plastic fastening environments.
See related dimensions and materials in the Torx Pan PT45 Screw range. If you are designing a hard-plastic boss, our Engineering Guide to Screws for Plastic covers pilot-hole ratios, boss sizing and PT45 tolerances. For help, call 01233 713581.
