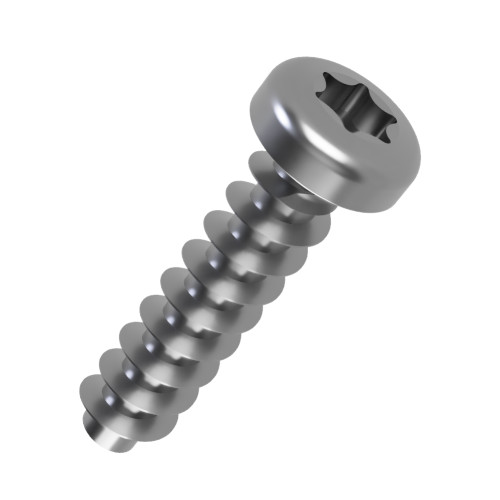

4mm x 16mm Torx Pan Screw for Hard Plastics (PT45) - T15 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.94 | £1.13 |
| 50 - 99 | £0.57 | £0.68 |
| 100 - 249 | £0.38 | £0.45 |
| 250 - 499 | £0.28 | £0.34 |
| 500 - 999 | £0.23 | £0.28 |
| 1000 - 4999 | £0.19 | £0.23 |
| 5000 + | £0.14 | £0.17 |
£1.13 / each
.png)
Product Specification
| Thread Size | 4.0mm |
| Thread Length | 16mm |
| Material | A2 Stainless Steel |
| Head Diameter | 7.00mm |
| Head Height | 2.45mm |
| Drive | T15 |
| Head Style | Pan |
Frequently Bought Together
Total Price: £0.00
4mm x 16mm Torx Pan PT45 Screw for Hard Plastics | A2 Stainless Steel
Developed for plastic assemblies exposed to moisture, this 4mm x 16mm Torx Pan Screw is part of the PT45 range for harder plastics. The trilobular 45° thread helps form a secure mating thread in compatible materials while the Torx recess provides a high-contact drive interface.
What Are Torx Pan PT45 Screws?
A PT45 Torx screw provides a middle ground between a sharp 30° plastic thread and a conventional self tapping screw. Its shorter 45° thread and trilobular form make it particularly useful in hard materials where secure engagement and a strong drive-to-strip ratio are required.
Common Applications
- Electrical Enclosures: Secures hard-plastic covers, panels and housings used in electrical and control equipment.
- Appliance Housings: Provides a dedicated fastening method for rigid plastic covers, panels and moulded parts.
- Control Equipment: Fastens hard-plastic panels and housings used around sensors, switches and control systems.
- Polycarbonate Housings: Forms a secure thread in suitable polycarbonate covers, cases and enclosure components.

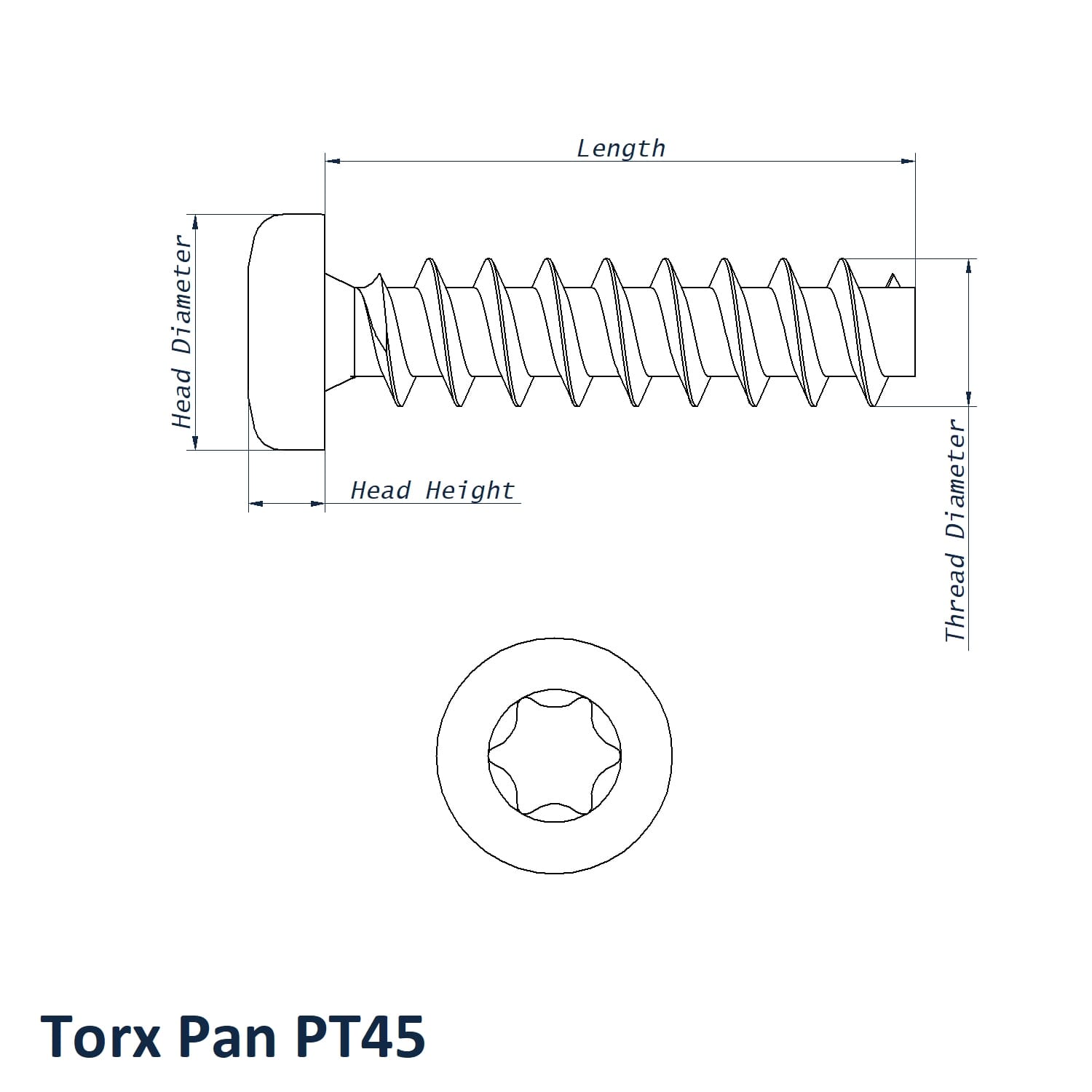

4mm x 16mm Torx Pan PT45 Screw Dimensions
- Thread Size: 4.0mm
- Thread Length: 16mm
- Head Diameter: 7.00mm
- Head Height: 2.45mm
- Drive: T15
- Material: A2 Stainless Steel
- Head Style: Pan
Key Benefits
- 4mm thread size and 16mm thread length provide the primary fastening dimensions.
- T15 Torx drive provides positive engagement and efficient torque transfer.
- 45° trilobular PT45 thread form is designed for harder plastics and reinforced materials.
- Correct pilot-hole diameter, boss size and engagement length should be selected for the material being assembled.
View the complete Torx Pan PT45 Screws for Hard Plastics range for alternative sizes and materials. For guidance on PT30 vs PT45 threads, pilot-hole sizing, boss design and torque selection, read our Engineering Guide to Screws for Plastic. For further help, contact the Vital Parts technical sales team on 01233 713581.
