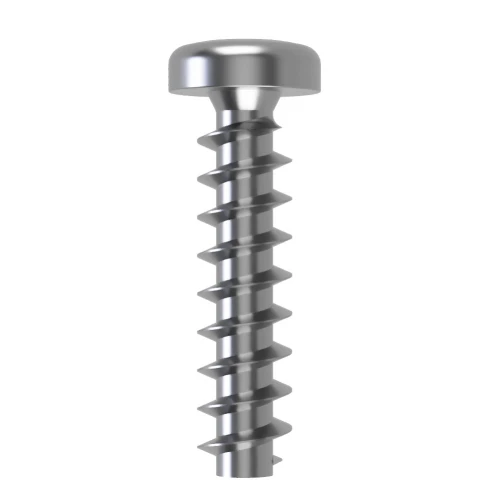

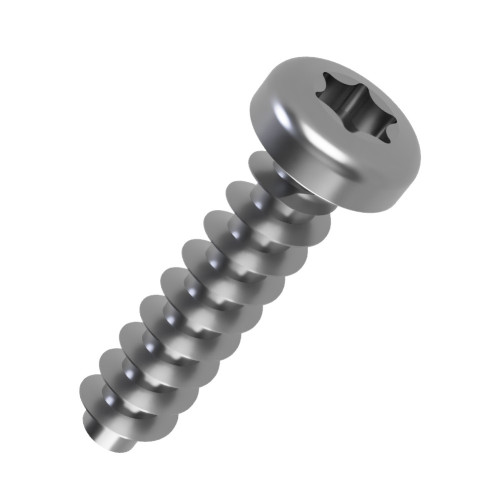

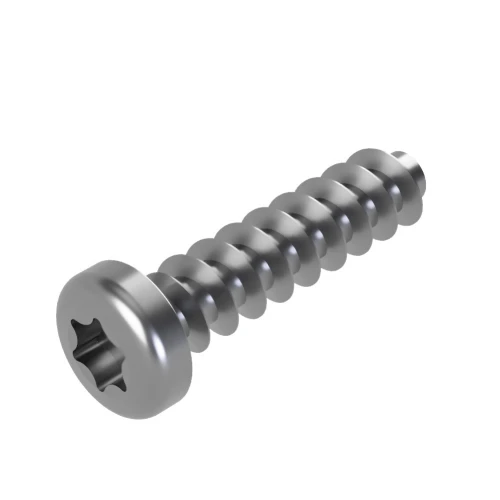

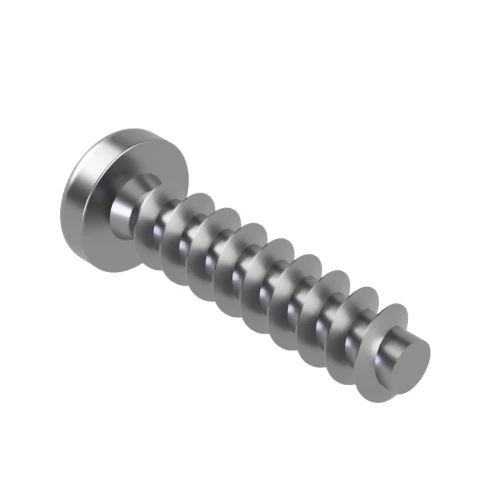

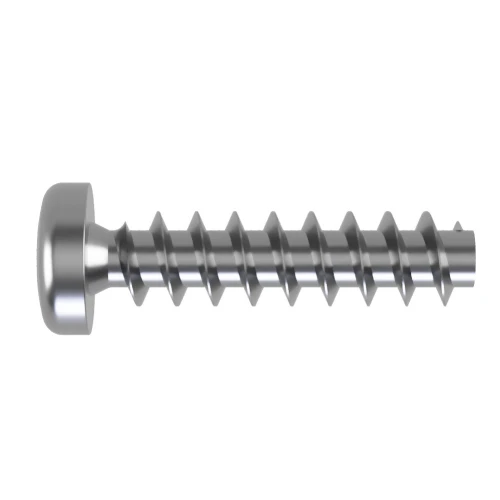

4mm x 20mm Torx Pan Screw for Hard Plastics (PT45) - T15 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £1.22 | £1.46 |
| 50 - 99 | £0.73 | £0.88 |
| 100 - 249 | £0.49 | £0.59 |
| 250 - 499 | £0.37 | £0.44 |
| 500 - 999 | £0.31 | £0.37 |
| 1000 - 4999 | £0.24 | £0.29 |
| 5000 + | £0.18 | £0.22 |
£1.46 / each
.png)
Product Specification
| Thread Size | 4.0mm |
| Thread Length | 20mm |
| Material | A2 Stainless Steel |
| Head Diameter | 7.00mm |
| Head Height | 2.45mm |
| Drive | T15 |
| Head Style | Pan |
Frequently Bought Together
Total Price: £0.00
4mm x 20mm Torx Pan PT45 Screw for Hard Plastics | A2 Stainless Steel
For engineering-plastic assemblies, this 4mm x 20mm Torx Pan PT45 Screw provides a purpose-designed alternative to a conventional self tapping screw. Its 45° trilobular thread supports reliable engagement in harder plastic bosses while the Torx drive helps reduce cam-out during installation.
What Are Torx Pan PT45 Screws?
Torx Pan PT45 Screws are thread-forming fasteners developed for harder plastics. Their 45° trilobular thread has shorter flanks than PT30 screws and is better suited to materials such as polycarbonate and glass-reinforced plastics. The Torx drive offers high contact area for efficient torque transfer.
Common Applications
- Consumer Electronics: Secures hard-plastic casings and internal components used in electronic products.
- Manufactured Plastic Parts: Supports repeatable assembly of moulded hard-plastic components with correctly sized pilot holes.
- Production Assemblies: Provides a high-contact Torx drive format for repeatable fastening into hard-plastic components.
- Electrical Enclosures: Secures hard-plastic covers, panels and housings used in electrical and control equipment.

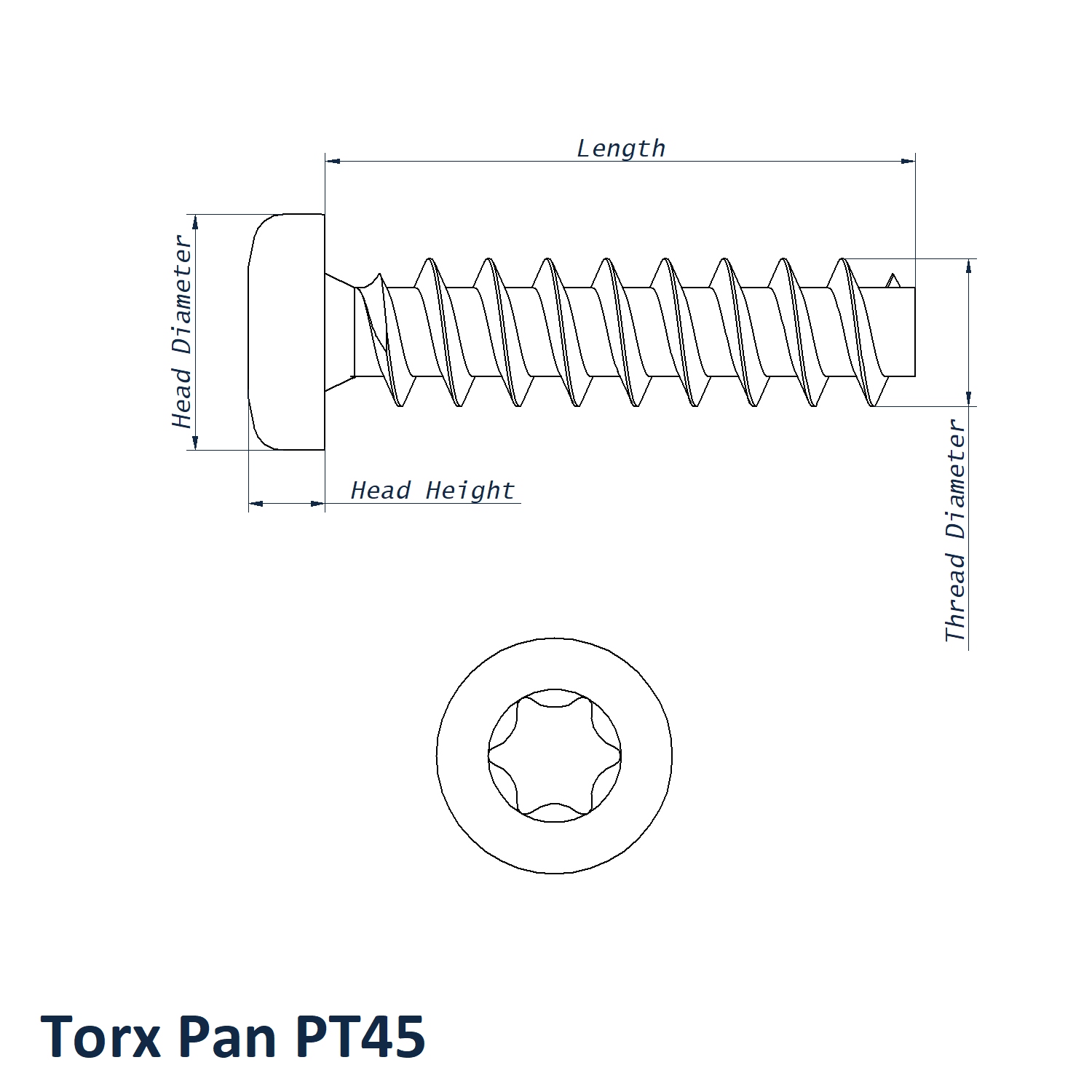

4mm x 20mm Torx Pan PT45 Screw Dimensions
- Thread Size: 4.0mm
- Thread Length: 20mm
- Head Diameter: 7.00mm
- Head Height: 2.45mm
- Drive: T15
- Material: A2 Stainless Steel
- Head Style: Pan
Key Benefits
- T15 Torx drive provides positive engagement and efficient torque transfer.
- 45° trilobular PT45 thread form is designed for harder plastics and reinforced materials.
- PT45 geometry provides a strong drive-to-strip ratio for compatible hard-plastic assemblies.
- 7.00mm head diameter and 2.45mm head height match the uploaded SKU specification.
Browse the full Torx Pan PT45 Screws for Hard Plastics category for Bright Zinc Plated Steel, Black Zinc Plated Steel and A2 Stainless Steel options. You can also use our Screws for Plastic Engineering Guide for PT30/PT45 selection and installation guidance. Technical support is available on 01233 713581.
