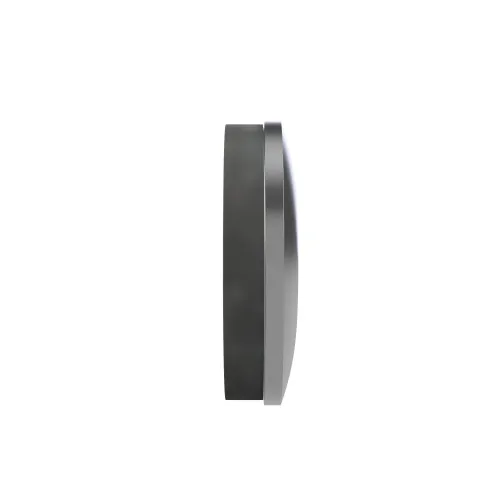

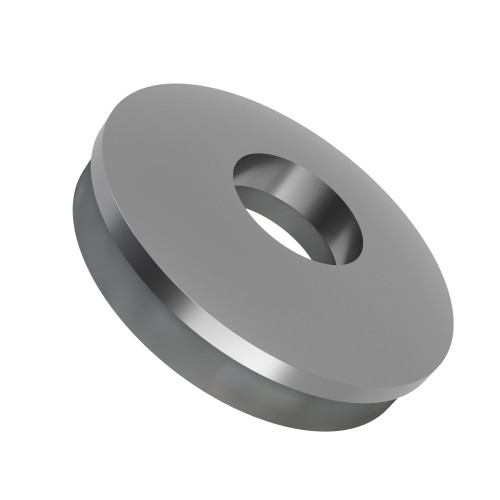

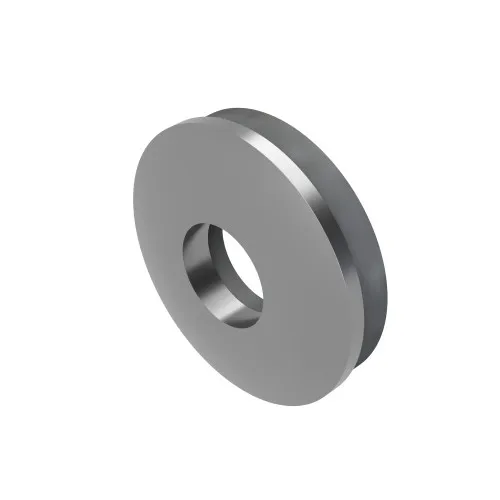

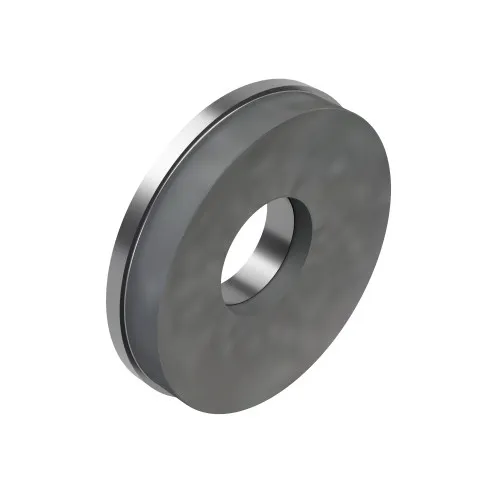

8.4mm Bonded Sealing Washer (29mm OD) | A2 Stainless Steel EPDM
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.74 | £0.89 |
| 50 - 99 | £0.63 | £0.76 |
| 100 - 249 | £0.46 | £0.55 |
| 250 - 499 | £0.34 | £0.41 |
| 500 - 999 | £0.28 | £0.34 |
| 1000 - 4999 | £0.23 | £0.28 |
| 5000 + | £0.19 | £0.23 |
£0.89 / each
.png)
Product Specification
| Internal Diameter | 8.4mm |
| Outside Diameter | 29.0mm |
| Total Thickness | 2.8mm |
| Metal Thickness | 0.8mm |
| Seal Thickness | 2mm |
| Seal Material | EPDM Rubber |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
8.4mm x 29mm Bonded Sealing Washer | 2.8mm | A2 Stainless Steel & EPDM
Designed for plant equipment, brackets and general industrial fastening, this 8.4mm x 29mm stainless steel bonded washer uses a metal washer bonded directly to an EPDM sealing element. Tightening the compatible fixing compresses the rubber against the mating surface which helps reduce the path for water, air or compatible fluids around the hole.
What Are Bonded Sealing Washers?
EPDM Bonded Washers are designed for applications where the fastener hole needs additional protection from moisture, air or compatible fluids. EPDM is widely used for weather-resistant sealing while the stainless steel washer supports the clamping force.
The wider selection of bonded washers includes alternative internal and outside diameters for different fixing and sealing requirements.
Common Applications
- Pipework and Fittings: Can help seal compatible threaded fixing points and connections where the fluid and operating conditions are suitable for EPDM.
- Machinery: Provides a bonded seal around suitable bolts used on guards, covers and equipment housings.
- Perspex and Sheet Materials: Spreads clamping force through the metal washer while the EPDM layer cushions the contact surface.
- Maintenance and Repair: Provides a one-piece replacement where both a washer and compressible seal are required around a fixing.

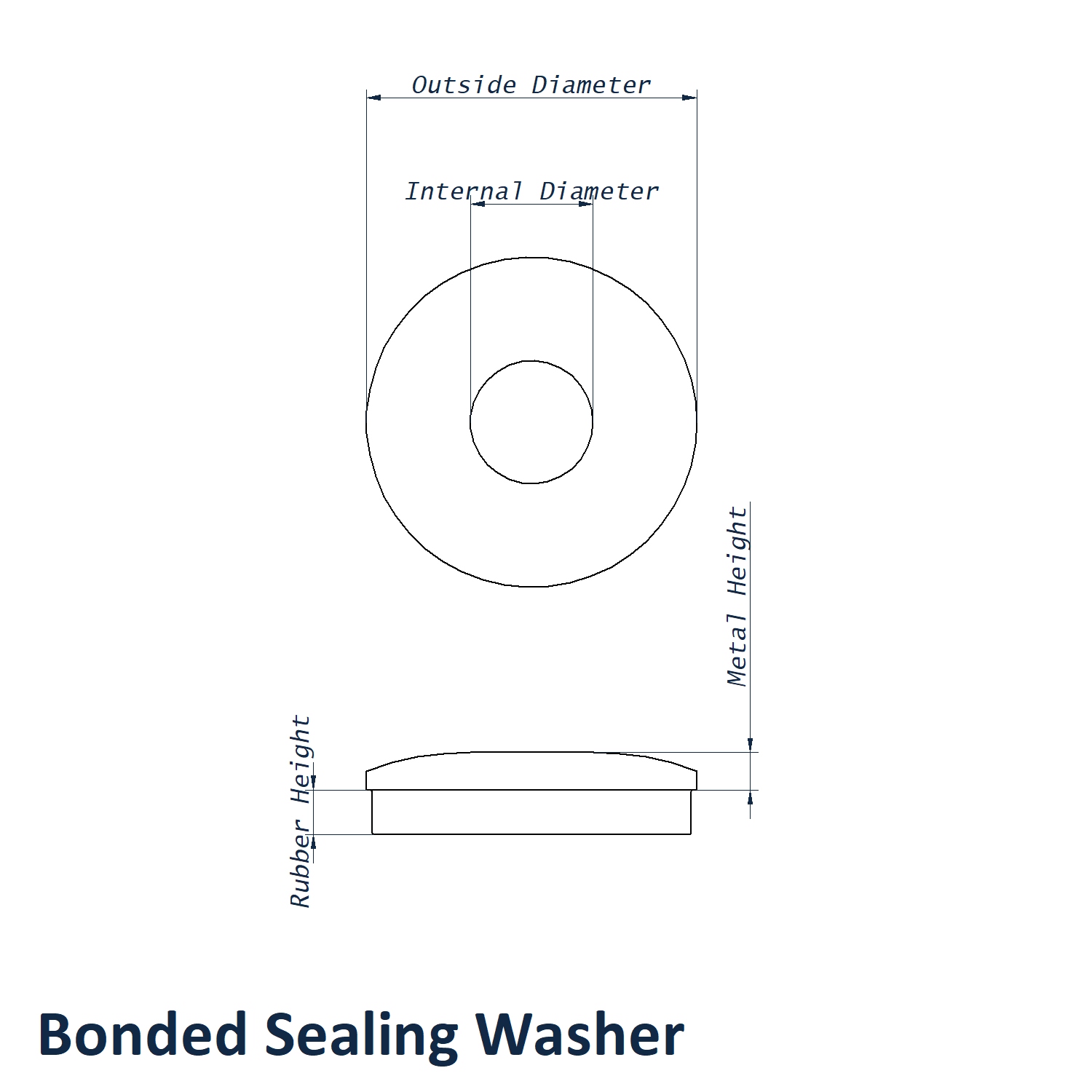

8.4mm x 29mm Bonded Sealing Washer Dimensions
- Internal Diameter: 8.4mm
- Outside Diameter: 29.0mm
- Total Thickness: 2.8mm
- Metal Thickness: 0.8mm
- Seal Thickness: 2mm
- Material: A2 Stainless Steel
- Seal Material: EPDM Rubber
Key Benefits
- 29mm outside diameter provides the washer's overall bearing and sealing footprint.
- 0.8mm metal thickness provides the specified A2 Stainless Steel supporting section.
- EPDM Rubber provides weather, ozone and UV resistance for suitable sealing applications.
- Metal ring spreads clamping load while the bonded rubber helps seal around the fixing hole.
Browse more stainless steel bonded washers to compare internal diameters and outside diameters for different compatible fasteners. If you need help selecting the correct size, call us on 01233 713581.
