M36 x 37mm Locking Tab Washers (60mm Long Tab) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.26 | £1.51 |
| 100 - 249 | £1.18 | £1.41 |
| 250 - 499 | £1.12 | £1.34 |
| 500 + | £0.84 | £1.01 |
£1.51 / each
.png)
Product Specification
| Size | M36 |
| Internal Diameter | 37.0mm |
| Outside Diameter | 75mm |
| Thickness | 1.60mm |
| Tab Width | 30mm |
| Tab Length | 60mm |
| Standard | DIN 93 |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00

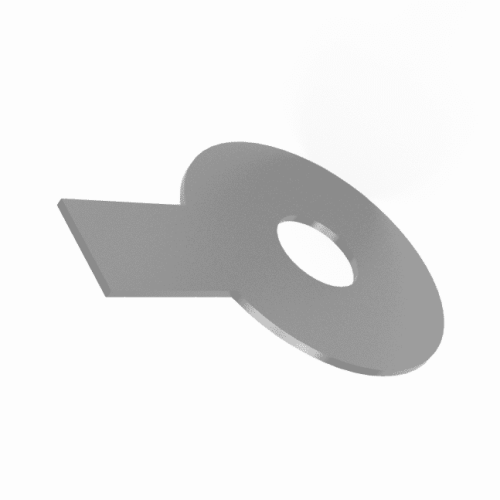

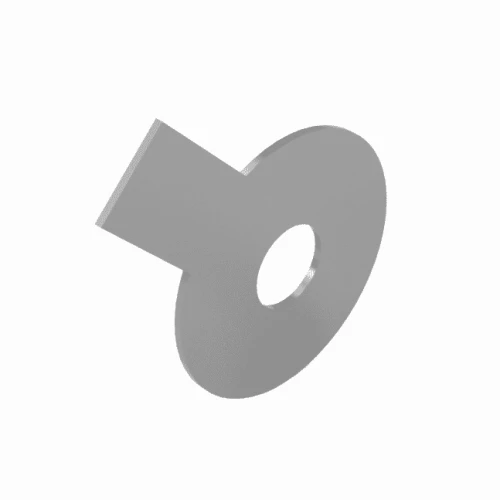

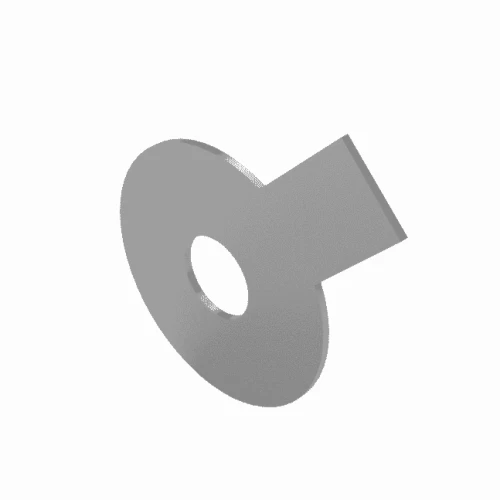

M36 x 37.0mm DIN 93 Long Tab Washer | A4 Stainless Steel
Used where outdoor machinery and exposed equipment require positive anti-rotation control, this M36 Long Tab Washer is manufactured from A4 Stainless Steel to DIN 93. Its protruding tab can be formed against a suitable adjacent feature to physically resist movement of the fastener.
What Are DIN 93 Long Tab Washers?
Also known as anti-rotation washers or single tab washers, DIN 93 Long Tab Washers are commonly paired with bolts, machine screws and nuts. Their locking action comes from physically obstructing rotation once the tab is correctly positioned within the assembly.
Common Applications
- Automotive Assemblies: Provides a positive anti-rotation feature for suitable bolted components used in vehicle and transport equipment.
- Mechanical Engineering: Supports locking of nuts, bolts and machine screws in fabricated components and general engineering assemblies.
- Maintenance and Repair: Offers a straightforward replacement locking method for machinery and equipment using DIN 93 washer geometry.
- Process Equipment: Helps retain compatible fasteners in machinery, pipework supports and industrial processing equipment.

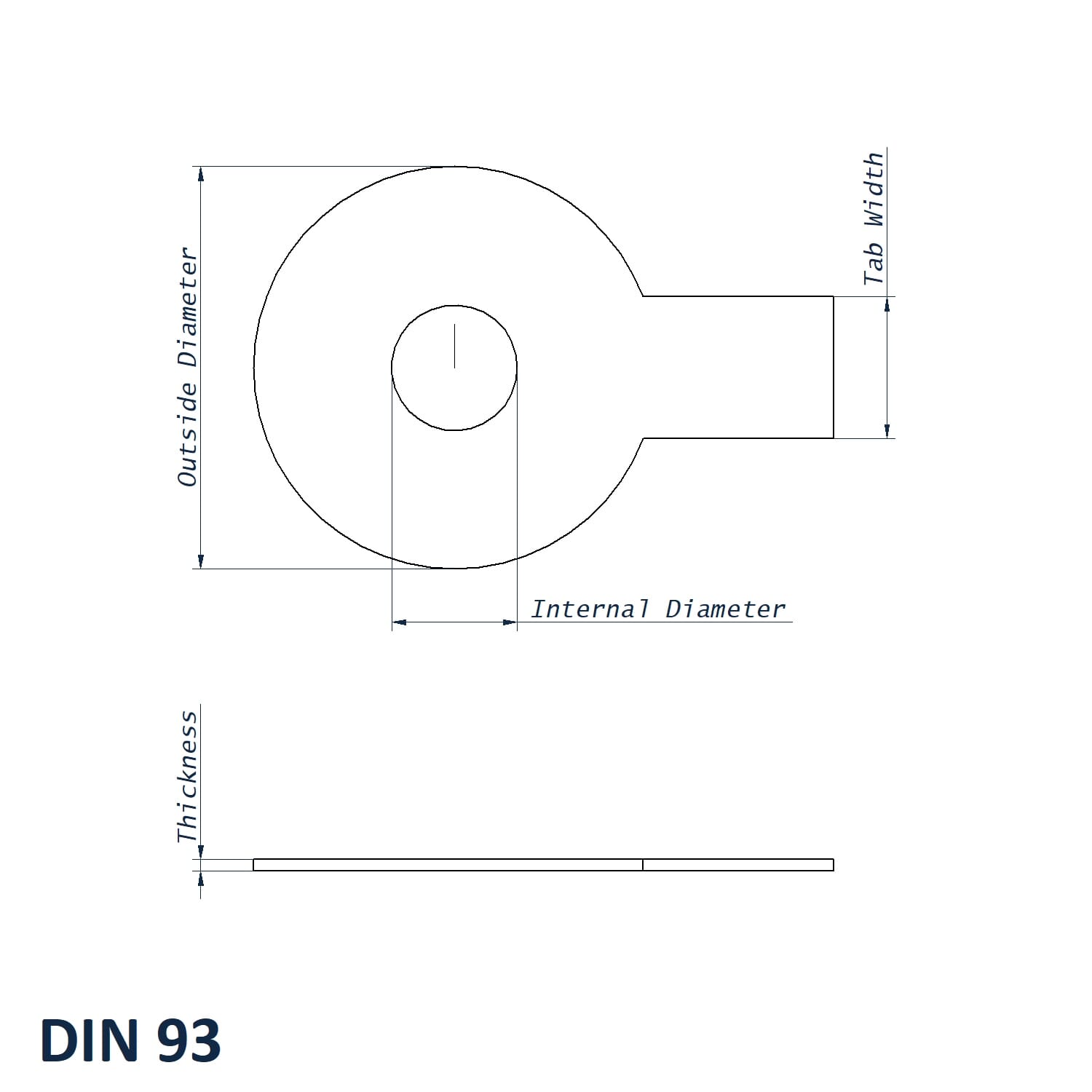

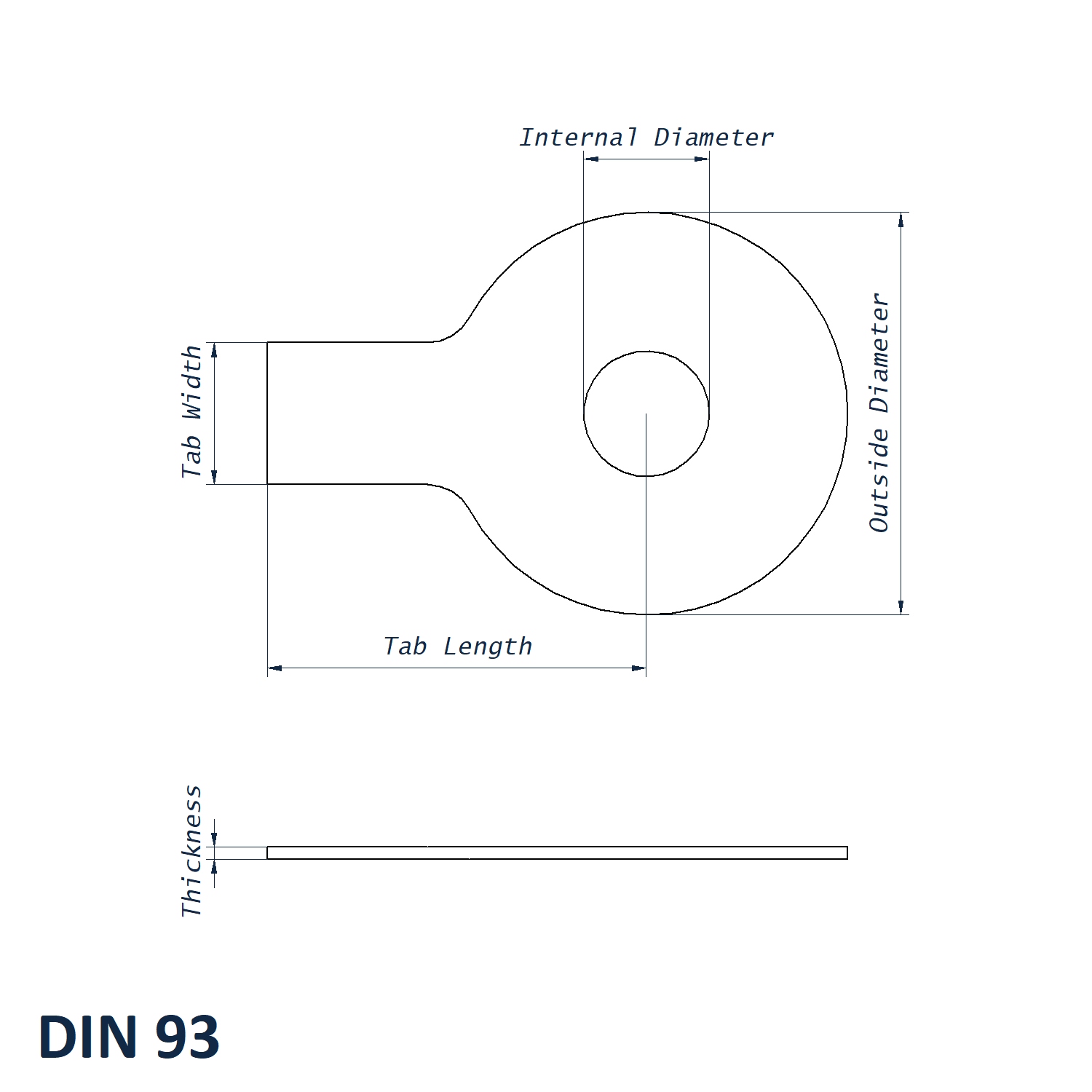

M36 DIN 93 Long Tab Washer Dimensions
- Size: M36
- Internal Diameter: 37.0mm
- Outside Diameter: 75mm
- Thickness: 1.60mm
- Tab Width: 30mm
- Tab Length: 60mm
- Material: A4 Stainless Steel
- Standard: DIN 93
Key Benefits
- 30mm tab width and 60mm tab length provide the mechanical locking feature.
- Compatible with bolts, machine screws and nuts in correctly designed assemblies.
- Mechanical locking action does not depend solely on friction between the washer and fastener.
- M36 size with 37.0mm internal diameter matches the uploaded SKU specification.
See the wider Long Tab Washer DIN 93 category for additional metric sizes and material options. Technical selection support is available on 01233 713581.
