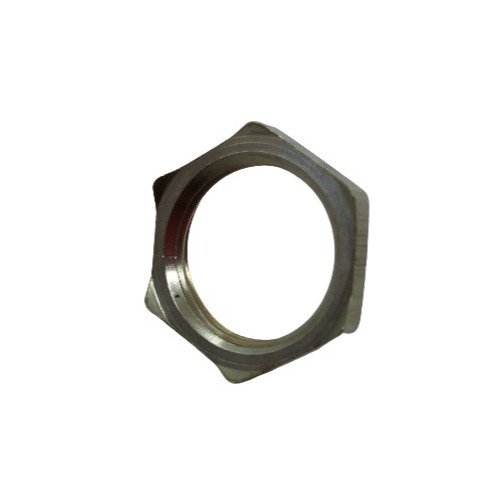

M12 Brass EMC Cable Gland Locknut | Nickel Plated
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.48 | £0.58 |
| 10 - 49 | £0.42 | £0.50 |
| 50 - 99 | £0.36 | £0.43 |
| 100 + | £0.30 | £0.36 |
£0.58 / each
.png)
Product Specification
| Thread | M12 x 1.5mm |
| Across Flats | 15mm |
| Height | 4.7mm |
| Style | EMC |
| Material | Brass |
| Colour/Finish | Nickel Plated |
Frequently Bought Together
M12 x 1.5mm Threaded Brass Cable Gland (IP68) 3 - 7mm Cable | Nickel Plated - Waterproof
Total Price: £0.00
M12 x 1.5mm EMC Cable Gland Lock Nut | Nickel Plated Brass
Designed for EMC cable gland installations, this M12 x 1.5mm Nickel Plated Brass Cable Gland Lock Nut uses an EMC profile with 15mm across flats and a 4.7mm height. It secures the gland to the panel while supporting the metal-to-metal connection used in compatible shielding arrangements.
What Are EMC Cable Gland Lock Nuts?
EMC Cable Gland Lock Nuts are metal threaded fastening rings used with compatible EMC cable glands. They secure the gland to the enclosure panel while supporting the conductive connection required by suitable shielded cable and metal gland assemblies.
Common Applications
- Industrial Machinery: Secures EMC gland assemblies on machinery panels where shield continuity is required by the installation.
- Panel Building: Provides a dedicated EMC-style lock nut for compatible cable gland assemblies.
- Automation Panels: Provides a metal fastening point for gland entries used on control and automation equipment.
- Data and Telecom: Provides a threaded fastening component for compatible shielded communication cable entries.

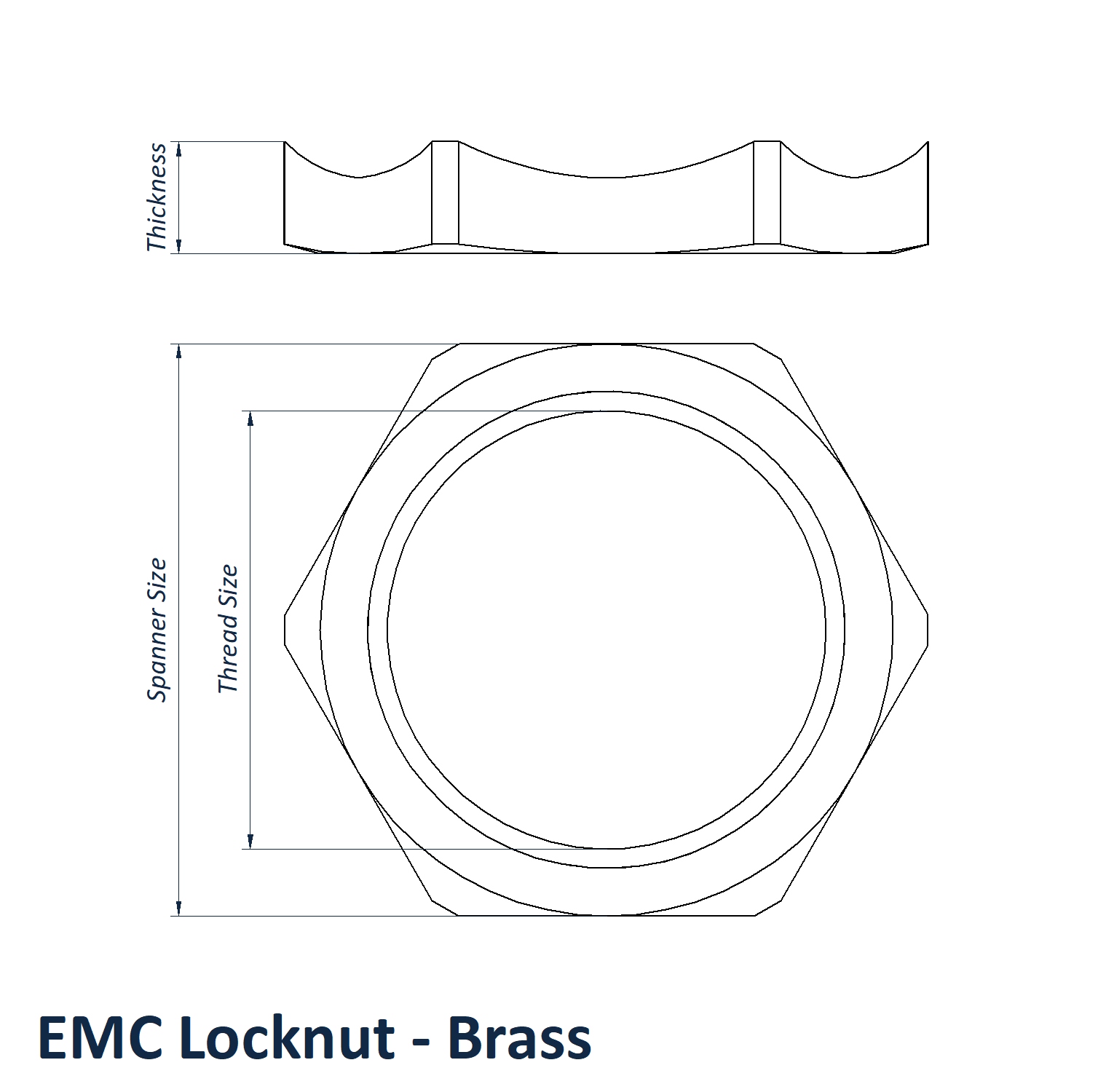

M12 x 1.5mm EMC Cable Gland Lock Nut Dimensions
- Thread: M12 x 1.5mm
- Across Flats: 15mm
- Material: Brass
- Height: 4.7mm
- Style: EMC
- Colour/Finish: Nickel Plated
Key Benefits
- Nickel Plated finish is retained exactly from the uploaded product data.
- Hexagonal outside profile supports controlled tightening with suitable tools.
- M12 x 1.5mm thread provides the main compatibility reference for the cable gland.
- EMC style matches the supplied SKU specification.
See related sizes and materials in the Cable Gland Lock Nuts category. The wider range covers A2 stainless steel, brass and nylon alongside EMC/shielded styles. For product selection support, contact our technical sales team on 01233 713581.
