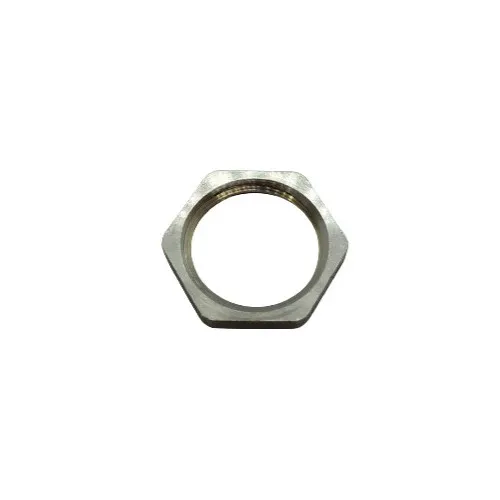

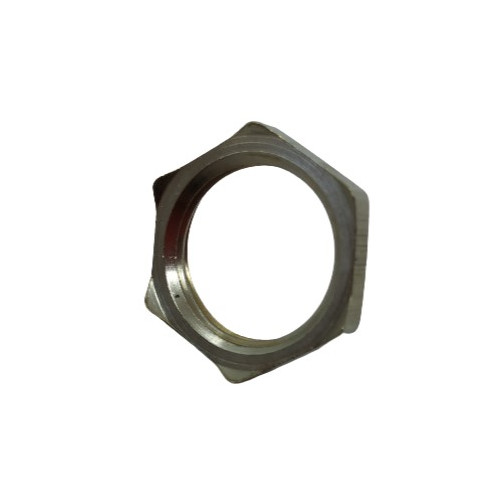

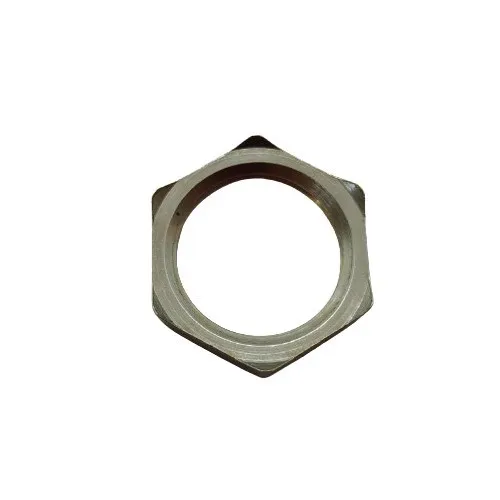

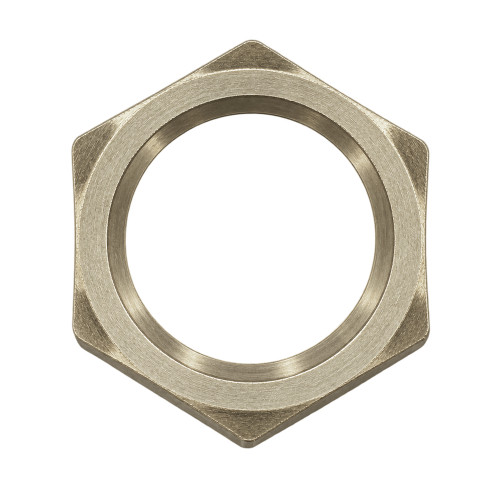

M40 Brass EMC Cable Gland Locknut | Nickel Plated
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £4.74 | £5.69 |
| 10 - 24 | £4.12 | £4.95 |
| 25 - 49 | £3.52 | £4.23 |
| 50 + | £2.92 | £3.51 |
£5.69 / each
.png)
Product Specification
| Thread | M40 x 1.5mm |
| Across Flats | 46mm |
| Height | 6.5mm |
| Style | EMC |
| Material | Brass |
| Colour/Finish | Nickel Plated |
Frequently Bought Together
M40 x 1.5mm Threaded Brass Cable Gland (IP68) 16 - 28mm Cable | Nickel Plated - Waterproof
Total Price: £0.00
M40 x 1.5mm EMC Cable Gland Lock Nut | Nickel Plated Brass
Built for panel-mounted EMC cable glands, this M40 x 1.5mm Brass Cable Gland Lock Nut combines a Nickel Plated finish with a 6.5mm high EMC profile. The 46mm across-flats measurement gives installers a clear tool and sizing reference.
What Are EMC Cable Gland Lock Nuts?
EMC Cable Gland Lock Nuts are metal threaded fastening rings used with compatible EMC cable glands. They secure the gland to the enclosure panel while supporting the conductive connection required by suitable shielded cable and metal gland assemblies.
Common Applications
- Equipment Refurbishment: Replaces worn or missing metal lock nuts in compatible EMC cable gland installations.
- Automation Panels: Provides a metal fastening point for gland entries used on control and automation equipment.
- Industrial Machinery: Secures EMC gland assemblies on machinery panels where shield continuity is required by the installation.
- Panel Building: Provides a dedicated EMC-style lock nut for compatible cable gland assemblies.

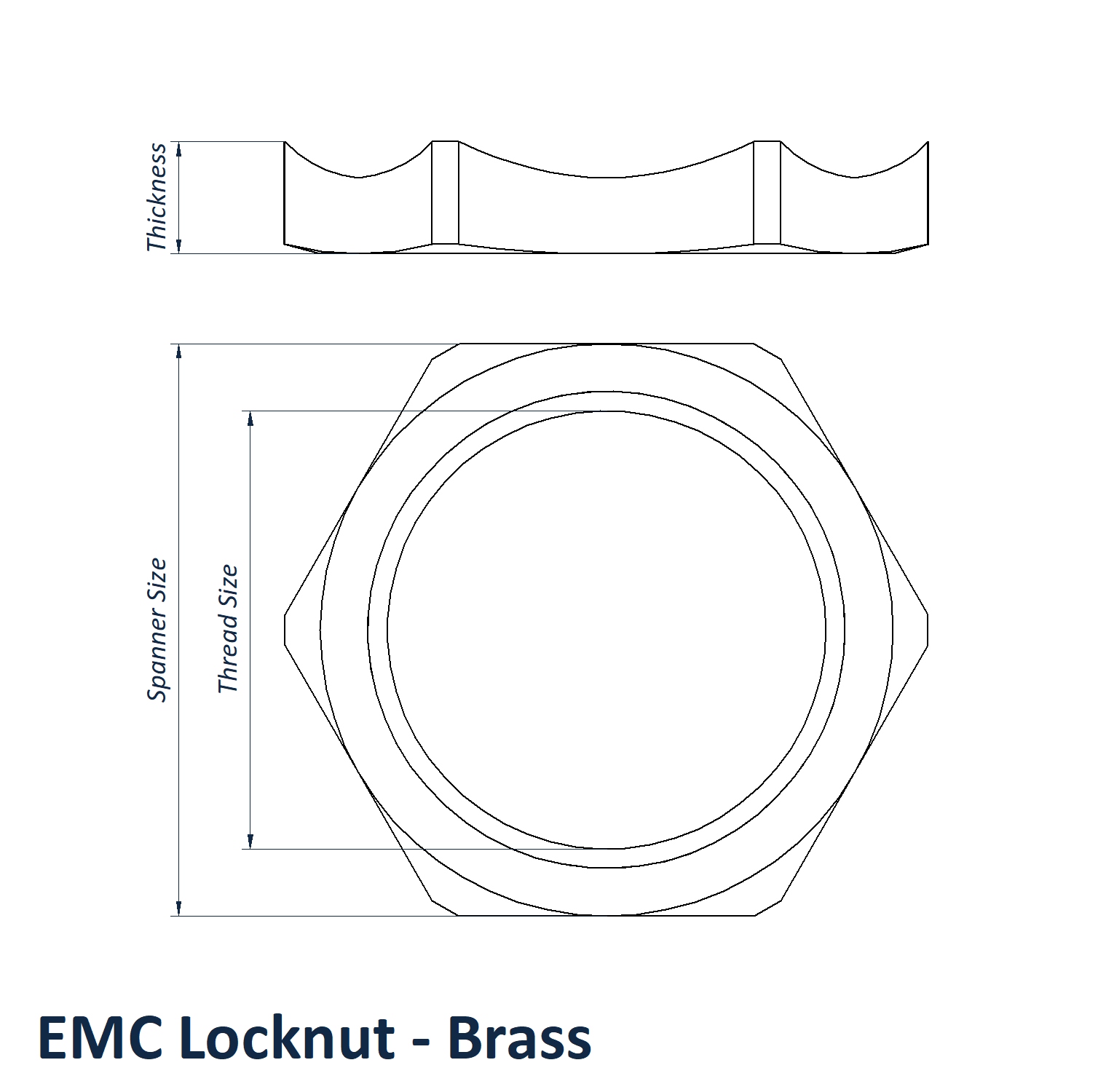

M40 x 1.5mm EMC Cable Gland Lock Nut Dimensions
- Thread: M40 x 1.5mm
- Across Flats: 46mm
- Material: Brass
- Height: 6.5mm
- Style: EMC
- Colour/Finish: Nickel Plated
Key Benefits
- Threaded ring design secures a compatible cable gland against the internal face of a panel or enclosure.
- 6.5mm height matches the uploaded lock nut profile.
- Brass construction provides a robust metal fastening option for cable gland installations.
- The wider range also includes A2 stainless steel and Nylon lock nuts for different installation requirements.
See related sizes and materials in the Cable Gland Lock Nuts category. The wider range covers A2 stainless steel, brass and nylon alongside EMC/shielded styles. For product selection support, contact our technical sales team on 01233 713581.
