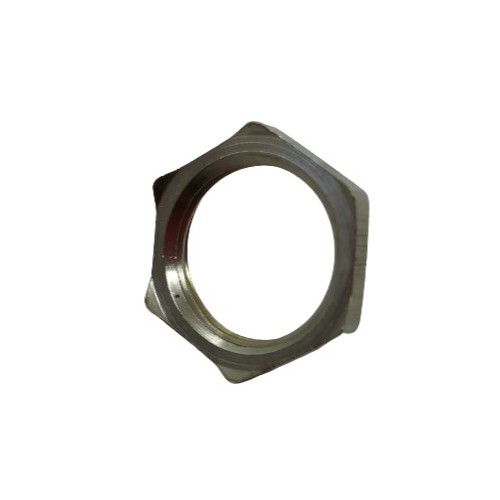

M25 Brass EMC Cable Gland Locknut | Nickel Plated
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.17 | £1.40 |
| 10 - 49 | £1.02 | £1.22 |
| 50 - 99 | £0.87 | £1.04 |
| 100 + | £0.72 | £0.87 |
£1.40 / each
Product Specification
| Thread | M25 x 1.5mm |
| Across Flats | 30mm |
| Height | 5.2mm |
| Style | EMC |
| Material | Brass |
| Colour/Finish | Nickel Plated |
Frequently Bought Together
M25 x 1.5mm Threaded Brass Cable Gland (IP68) 9 - 17mm Cable | Nickel Plated - Waterproof
Total Price: £0.00
M25 x 1.5mm EMC Cable Gland Lock Nut | Nickel Plated Brass
For compatible EMC cable entries, this M25 x 1.5mm Brass lock nut provides a secure threaded connection between the gland and panel. The Nickel Plated EMC component measures 30mm across flats and 5.2mm high.
What Are EMC Cable Gland Lock Nuts?
EMC Cable Gland Lock Nuts are metal threaded fastening rings used with compatible EMC cable glands. They secure the gland to the enclosure panel while supporting the conductive connection required by suitable shielded cable and metal gland assemblies.
Common Applications
- Instrumentation: Supports shielded cable gland installation on compatible instrument and monitoring enclosures.
- Industrial Machinery: Secures EMC gland assemblies on machinery panels where shield continuity is required by the installation.
- Equipment Refurbishment: Replaces worn or missing metal lock nuts in compatible EMC cable gland installations.
- Automation Panels: Provides a metal fastening point for gland entries used on control and automation equipment.

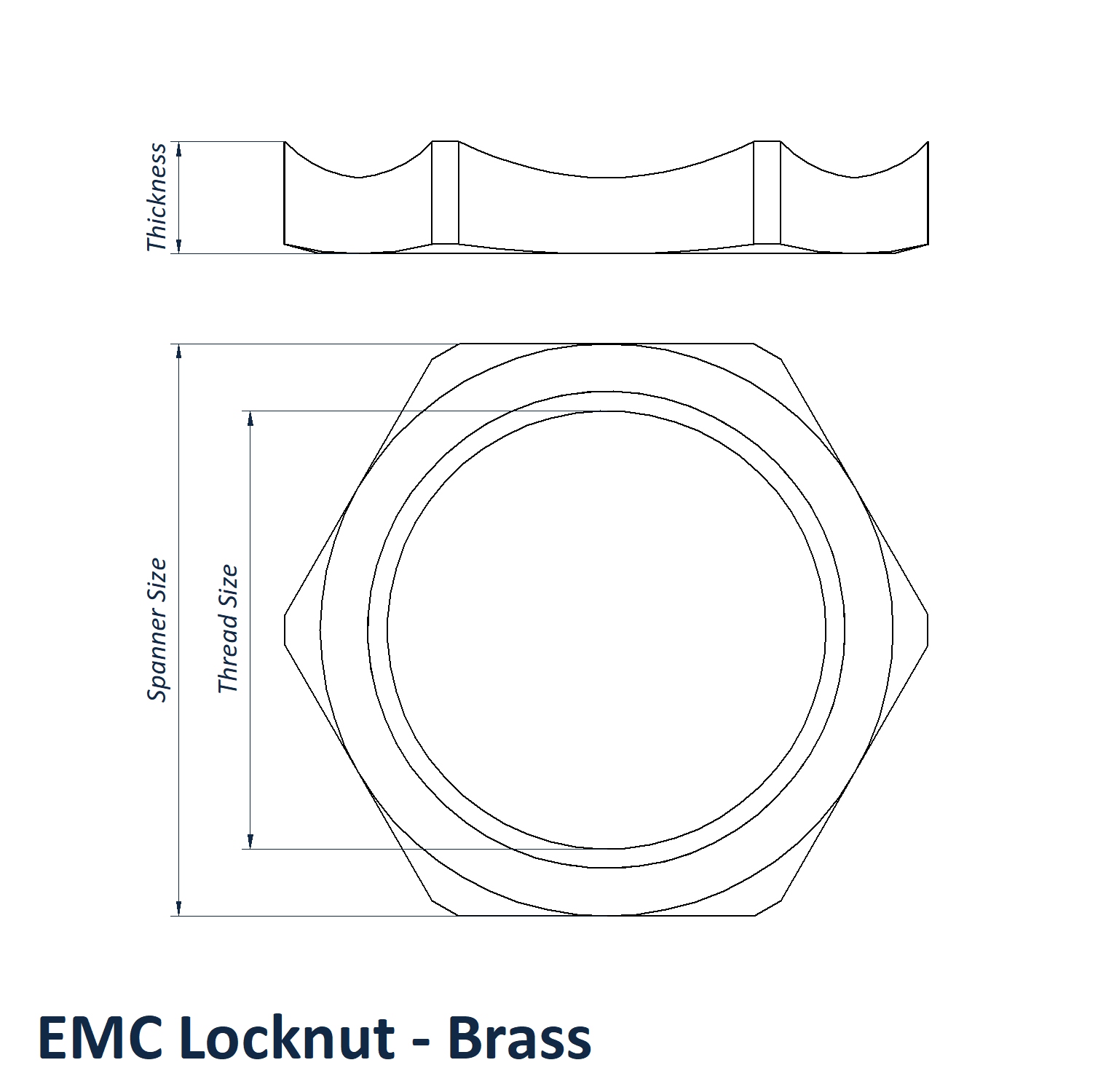

M25 x 1.5mm EMC Cable Gland Lock Nut Dimensions
- Thread: M25 x 1.5mm
- Across Flats: 30mm
- Material: Brass
- Height: 5.2mm
- Style: EMC
- Colour/Finish: Nickel Plated
Key Benefits
- Hexagonal outside profile supports controlled tightening with suitable tools.
- M25 x 1.5mm thread provides the main compatibility reference for the cable gland.
- EMC style matches the supplied SKU specification.
- Nickel Plated finish matches the supplied product specification.
Compare this product with other Cable Gland Lock Nuts across metric and PG thread formats. Alternative material choices include A2 stainless steel, brass and nylon with EMC styles also available. If you need help selecting the correct size, telephone Vital Parts on 01233 713581.
