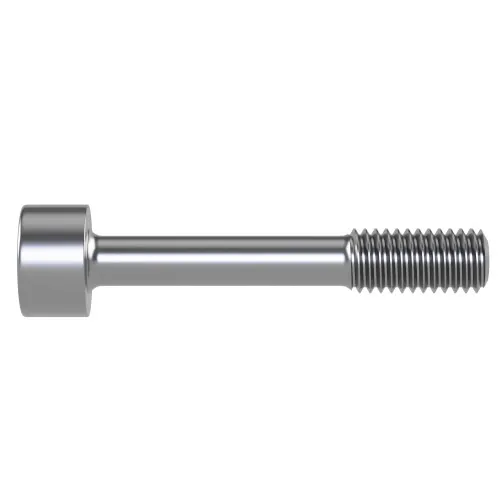

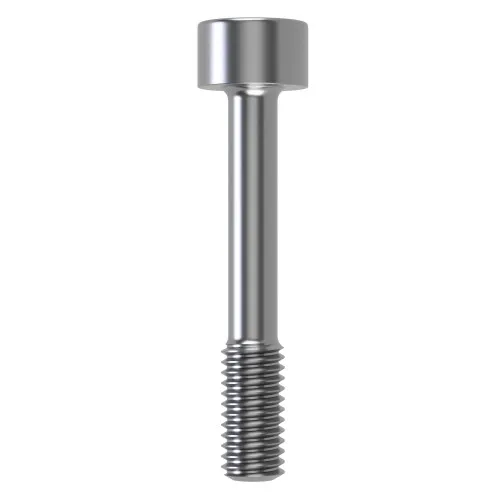

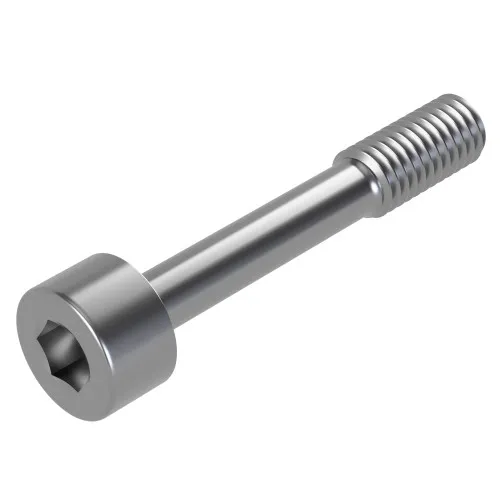

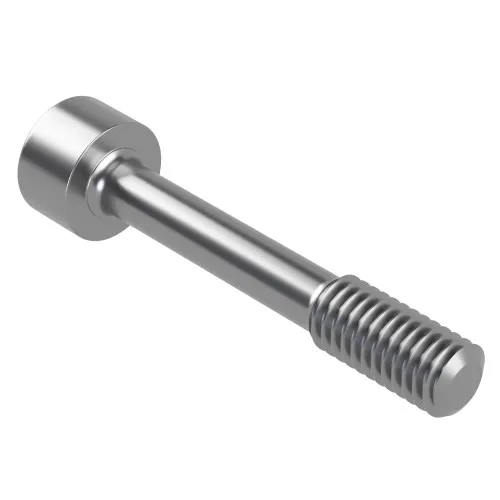

M8 x 60mm Captive Socket Cap Head Screw (~DIN 912) | A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £5.85 | £7.02 |
| 50 - 99 | £5.20 | £6.24 |
| 100 - 249 | £4.68 | £5.62 |
| 250 - 499 | £4.26 | £5.11 |
| 500 - 999 | £3.90 | £4.68 |
| 1000 + | £3.34 | £4.01 |
£7.02 / each
Product Specification
| Thread Size | M8 |
| Pitch | 1.25mm |
| Length | 60mm |
| Captive Diameter | 6.2mm |
| Threaded Length | 16.0mm |
| Drive | H6 |
| Head Diameter | 13.0mm |
| Head Height | 8.0mm |
| Material | A4 Stainless Steel |
| Standard | Similar to DIN 912 |
Frequently Bought Together
Total Price: £0.00
M8 x 60mm Captive Socket Cap Head Screw | Similar to DIN 912 | A4 Stainless Steel
This M8 x 60mm retained socket cap screw is suited to manufacturing equipment, jigs and maintenance panels where removable panels must be opened without completely separating the fastening hardware. The 1.25mm pitch, H6 drive and 16.0mm threaded length provide the main installation details for the screw. A4 Stainless Steel provides enhanced corrosion resistance for suitable outdoor, washdown, coastal and marine applications where a higher level of environmental resistance is required.
What Are Captive Socket Cap Head Screws?
Captive Socket Cap Head Screws are specialist fasteners designed to stay attached to a panel, cover or component after the threaded portion has been loosened. A reduced captive section works with a compatible panel, washer, sleeve or retaining feature so the screw can remain retained instead of falling free.
Common Applications
- Industrial Enclosures: Provides a retained fastening point for covers and doors on suitable equipment housings.
- Instrumentation: Keeps small fastening hardware attached to precision panels, test equipment and technical housings.
- Automation Equipment: Supports repeat-access panels on machinery, control systems and production equipment.
- Transport Equipment: Provides retained fixings for suitable removable covers and inspection panels.
M8 x 60mm Captive Socket Cap Head Screw Dimensions
- Thread Size: M8
- Length: 60mm
- Threaded Length: 16.0mm
- Captive Diameter: 6.2mm
- Head Diameter: 13.0mm
- Head Height: 8.0mm
- Drive: H6
- Pitch: 1.25mm
- Standard: Similar to DIN 912
- Material: A4 Stainless Steel
Key Benefits
- 6.2mm captive diameter provides the reduced section used with a compatible retention feature.
- 8.0mm head height provides the specified socket cap head profile.
- Similar to DIN 912 describes the DIN 912-style dimensional format used for this captive screw.
- Captive format can reduce dropped or misplaced fasteners during servicing when installed with a suitable retaining feature.
Browse the complete Cap Head Captive Screw collection for alternative dimensions and materials. For different head styles, browse our complete Captive Screws range. We also offer countersunk captive screws as well as pan head, button head and knurled options. We can help you choose the correct option on 01233 713581.
