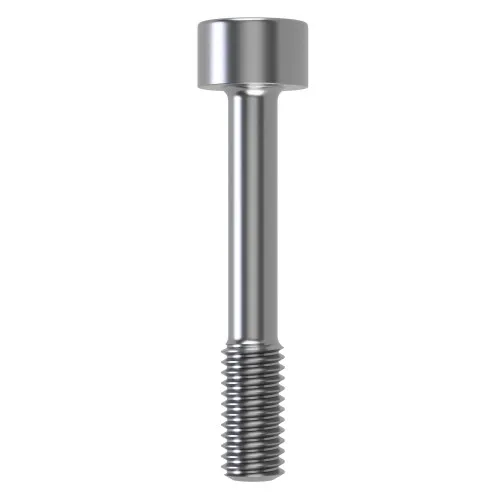

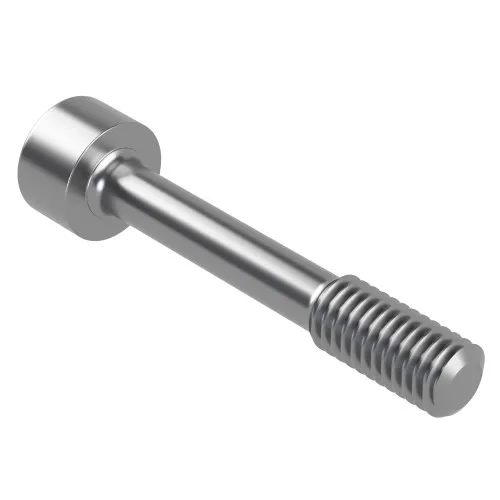

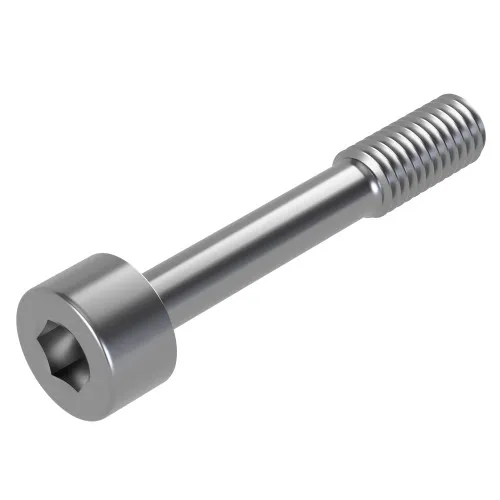

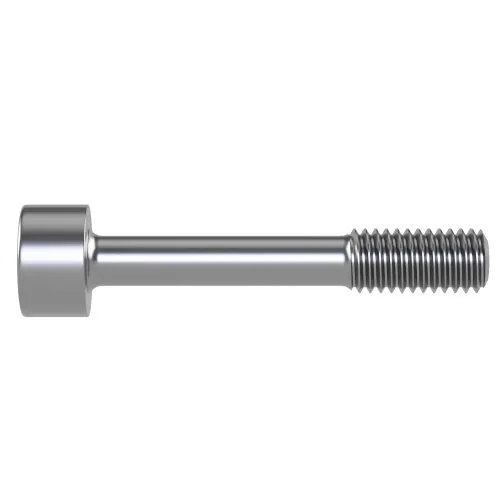

M8 x 70mm Captive Socket Cap Head Screw (~DIN 912) | A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £6.47 | £7.77 |
| 50 - 99 | £5.76 | £6.91 |
| 100 - 249 | £5.18 | £6.22 |
| 250 - 499 | £4.71 | £5.65 |
| 500 - 999 | £4.32 | £5.18 |
| 1000 + | £3.70 | £4.44 |
£7.77 / each
Product Specification
| Thread Size | M8 |
| Pitch | 1.25mm |
| Length | 70mm |
| Captive Diameter | 6.2mm |
| Threaded Length | 16.0mm |
| Drive | H6 |
| Head Diameter | 13.0mm |
| Head Height | 8.0mm |
| Material | A4 Stainless Steel |
| Standard | Similar to DIN 912 |
Frequently Bought Together
Total Price: £0.00
M8 x 70mm Captive Socket Cap Head Screw | Similar to DIN 912 | A4 Stainless Steel
Made for repeat-access assemblies, this M8 x 70mm socket head captive screw uses a reduced 6.2mm section between the threaded portion and head area. When paired with a compatible captive feature, this allows the fixing to remain with the panel after disengaging from the mating thread. A4 Stainless Steel provides enhanced corrosion resistance for suitable outdoor, washdown, coastal and marine applications where a higher level of environmental resistance is required.
What Are Captive Socket Cap Head Screws?
Cap Head Captive Screws combine a DIN 912-style socket cap head with a reduced section intended for captive retention. They are useful on equipment that requires repeated access because the screw can remain with the removable part during servicing which reduces the chance of loose fixings being dropped or misplaced.
Common Applications
- Machinery Guards: Keeps compatible screws attached to removable guards during inspection, adjustment and maintenance.
- Control Cabinets: Retains panel fixings on electrical and automation enclosures that require repeated access.
- Equipment Covers: Supports serviceable covers where loose screws could be dropped inside machinery or misplaced.
- Maintenance Panels: Helps keep fastening hardware associated with access panels during routine servicing.
M8 x 70mm Captive Socket Cap Head Screw Dimensions
- Thread Size: M8
- Length: 70mm
- Threaded Length: 16.0mm
- Captive Diameter: 6.2mm
- Head Diameter: 13.0mm
- Head Height: 8.0mm
- Drive: H6
- Pitch: 1.25mm
- Standard: Similar to DIN 912
- Material: A4 Stainless Steel
Key Benefits
- 6.2mm captive diameter provides the reduced section used with a compatible retention feature.
- 8.0mm head height provides the specified socket cap head profile.
- Similar to DIN 912 describes the DIN 912-style dimensional format used for this captive screw.
- Captive format can reduce dropped or misplaced fasteners during servicing when installed with a suitable retaining feature.
See our wider Socket Cap Head Captive Screws range for other sizes and stainless steel grades. You can compare more retained fastening styles in our Captive Screws collection, including countersunk captive screws for flush-fitting panel applications. For product-selection support, speak with our team on 01233 713581.
