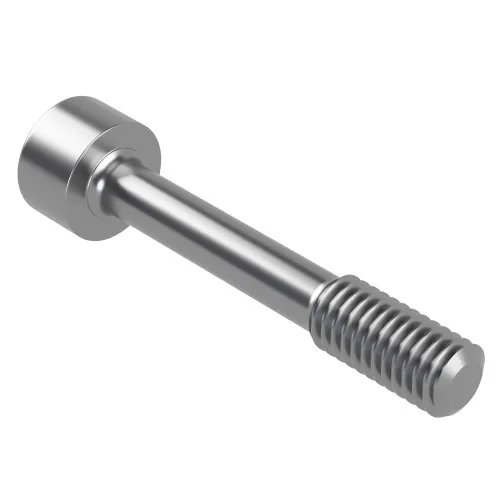

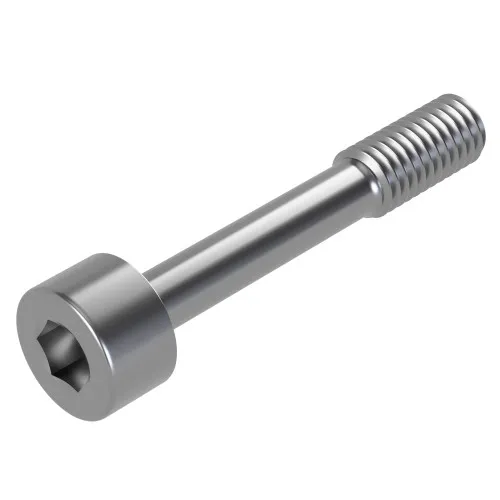

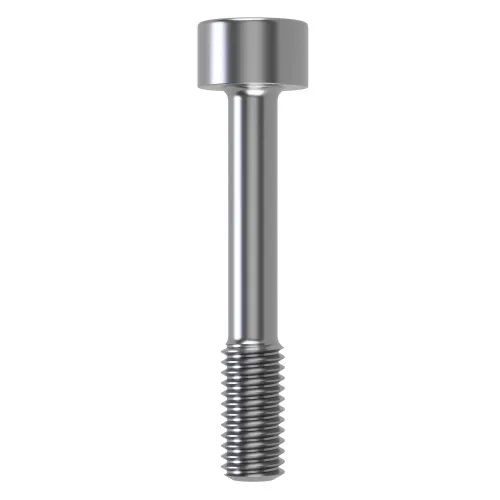

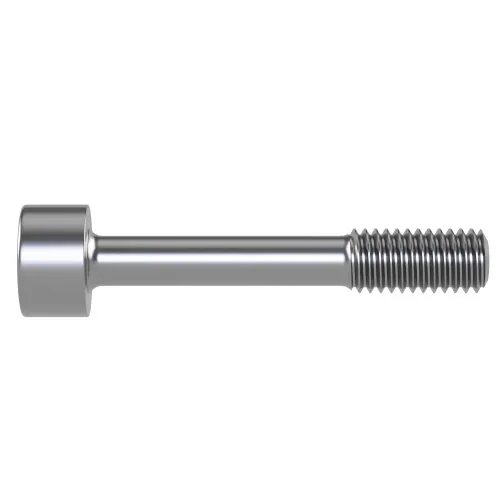

M8 x 75mm Captive Socket Cap Head Screw (~DIN 912) | A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £7.00 | £8.40 |
| 50 - 99 | £6.22 | £7.47 |
| 100 - 249 | £5.60 | £6.72 |
| 250 - 499 | £5.09 | £6.11 |
| 500 - 999 | £4.67 | £5.60 |
| 1000 + | £4.00 | £4.80 |
£8.40 / each
Product Specification
| Thread Size | M8 |
| Pitch | 1.25mm |
| Length | 75mm |
| Captive Diameter | 6.2mm |
| Threaded Length | 16.0mm |
| Drive | H6 |
| Head Diameter | 13.0mm |
| Head Height | 8.0mm |
| Material | A4 Stainless Steel |
| Standard | Similar to DIN 912 |
Frequently Bought Together
Total Price: £0.00
M8 x 75mm Captive Socket Cap Head Screw | Similar to DIN 912 | A4 Stainless Steel
Providing a retained fixing for laboratory equipment, instrumentation and technical enclosures, this M8 x 75mm stainless steel captive screw combines a hex socket cap head with a purpose-designed captive diameter. The format helps keep the screw with the assembly during inspection, adjustment or maintenance when used with a compatible retention method. A4 Stainless Steel provides enhanced corrosion resistance for suitable outdoor, washdown, coastal and marine applications where a higher level of environmental resistance is required.
What Are Captive Socket Cap Head Screws?
Captive Cap Screws are used where a conventional fully removable screw could create a loose-part risk during maintenance. Their reduced captive diameter allows a suitable retention feature to hold the screw to the panel while the threaded end engages and disengages from the mating component.
Common Applications
- Machinery Guards: Keeps compatible screws attached to removable guards during inspection, adjustment and maintenance.
- Control Cabinets: Retains panel fixings on electrical and automation enclosures that require repeated access.
- Equipment Covers: Supports serviceable covers where loose screws could be dropped inside machinery or misplaced.
- Maintenance Panels: Helps keep fastening hardware associated with access panels during routine servicing.
M8 x 75mm Captive Socket Cap Head Screw Dimensions
- Thread Size: M8
- Length: 75mm
- Threaded Length: 16.0mm
- Captive Diameter: 6.2mm
- Head Diameter: 13.0mm
- Head Height: 8.0mm
- Drive: H6
- Pitch: 1.25mm
- Standard: Similar to DIN 912
- Material: A4 Stainless Steel
Key Benefits
- H6 hex socket drive provides positive engagement with a matching driver or key.
- Similar to DIN 912 describes the DIN 912-style dimensional format used for this captive screw.
- M8 thread size with 75mm overall length provides the primary screw dimensions.
- 6.2mm captive diameter provides the reduced section used with a compatible retention feature.
Browse the complete Cap Head Captive Screw collection for alternative dimensions and materials. Our wider Captive Screws range includes countersunk captive screws plus other head styles for different access, clearance and installation requirements. We can help you choose the correct option on 01233 713581.
