| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.11 | £1.33 |
| 10 - 49 | £0.97 | £1.17 |
| 50 - 99 | £0.83 | £1.00 |
| 100 - 999 | £0.69 | £0.83 |
| 1000 + | £0.56 | £0.67 |
£1.33 / each
Product Specification
| Thread Size | M12 |
| Thread Pitch | 1.75mm |
| Material | Brass |
| Across Flats | 19.0mm |
| Height | 10.00mm |
| Standard | DIN 934 |
Frequently Bought Together
- Colour Black
- Width 4.8mm
- Max Bundle Diameter 83mm
- Thickness 1.5mm
- Length 300mm
- Minimum Tensile Strength 22kg
- Thread Size 19.8mm
- Material Die Cast Zinc Plated Steel
- Thread Length 14.6mm
- Colour Black and BZP
- Across Flats 27mm
- Hole Size 22.5mm
- Head Height 19.0mm
- Key Type Standard Key (Included)
- Cam Length 45mm
- Cam Depth 28mm
- Head Width 50.0mm
- Material Brass
- Thickness 2.50mm
- Internal Diameter 13.0mm
- Outside Diameter 24mm
- Standard DIN 125A
- Size M12
Total Price: £0.00

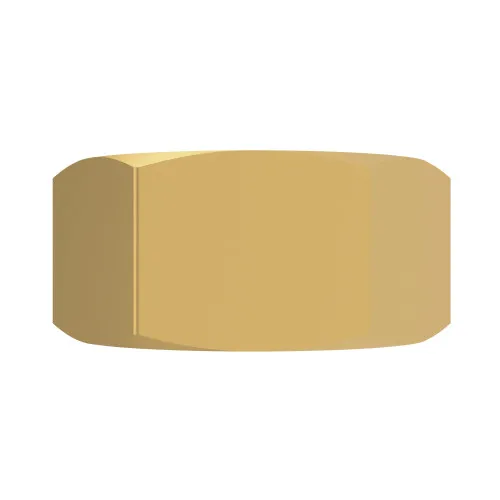

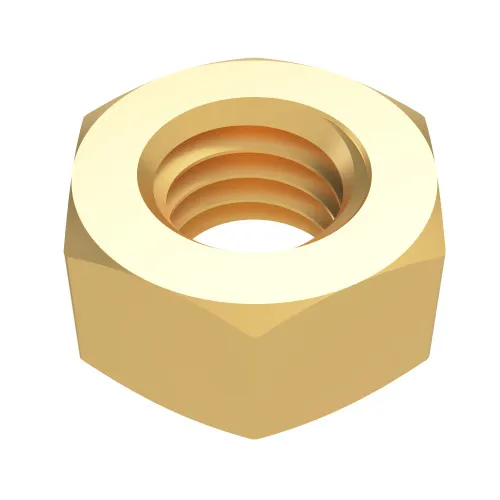

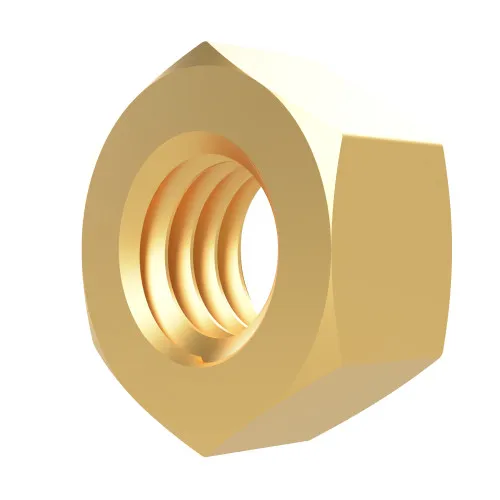

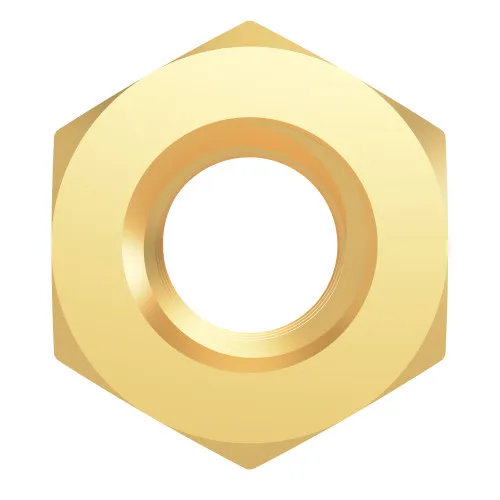

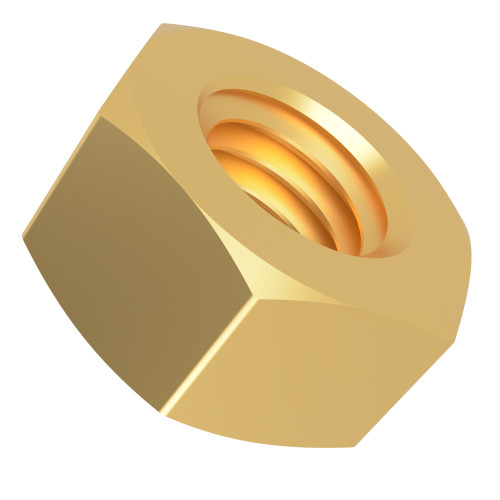

M12 Full Hex Nut (DIN 934) | Brass
This M12 full hex nut has a brass body and an internal metric thread for fastening against a compatible bolt, machine screw or stud. A 1.75mm thread pitch must correspond to the mating external thread.
What Are Full Hex Nuts?
The full-height hexagonal profile is a conventional option for threaded fastening. Mating threads need to match and the suitability of the material should be considered for the installation. Other metric hex nuts offer different materials and dimensions for related fastening assemblies. Compatible metric machine screws provide the external thread while stainless steel washers can help distribute clamping force where appropriate. The M12 hex nut dimensions should be checked against the intended bolt and available tool clearance.
Common Applications
- Machinery Assembly: Fastening compatible M12 bolts through panel brackets where the specified Brass is suitable.
- Instrument Fittings: Securing compatible brass or other appropriately selected threaded parts in fittings and assembly work.
- Equipment Maintenance: Replacing an existing M12 nut on a compatible threaded rod or screw while checking 19mm spanner clearance.
- General Engineering: Providing a removable threaded connection for serviceable fittings with a nut of the specified grade.

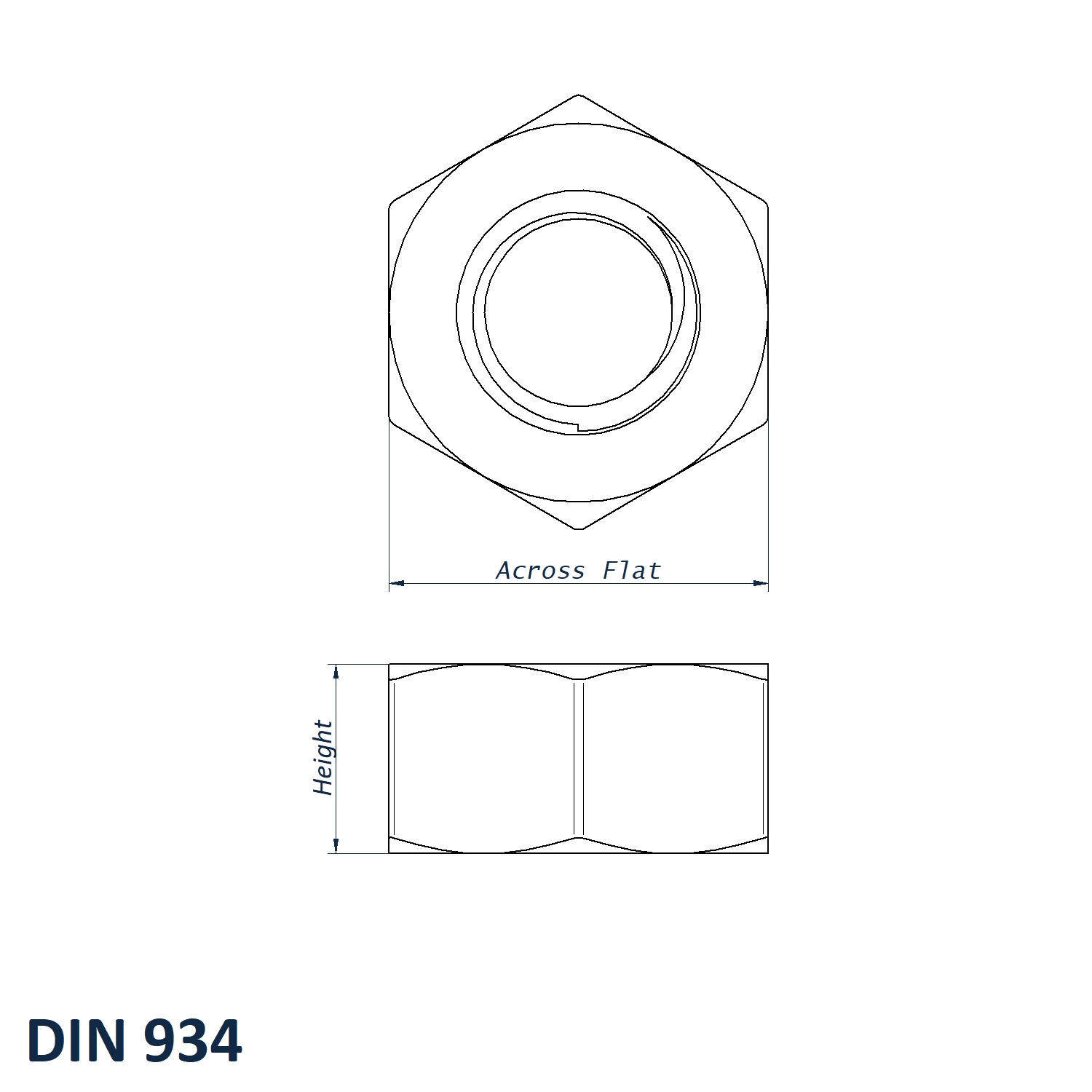

M12 Full Hex Nut Dimensions
- Thread Size: M12
- Thread Pitch: 1.75mm
- Material: Brass
- Across Flats: 19.0mm
- Height: 10.00mm
- Standard: DIN 934
Key Benefits
- Allows threaded components to be assembled and removed using appropriate tools.
- Six external flats provide contact surfaces for a suitable spanner or socket.
- 19mm across flats helps determine tool fit and surrounding clearance.
- The DIN 934 designation identifies the specified hex nut standard.
Different metric full hex nuts can accommodate other fastener diameters and material requirements. If you need help selecting the correct size, call us on 01233 713581.
| Code | Thread Size | Material | Height | Thread Pitch | Across Flats | Standard | Stock | |
|---|---|---|---|---|---|---|---|---|
| HN934-M10-BRA | M10 | Brass | 8.00mm | 1.50mm | 17.0mm | DIN 934 |
Checking...
|
|
| HN934-M12-BRA | M12 | Brass | 10.00mm | 1.75mm | 19.0mm | DIN 934 |
Checking...
|
|
| HN934-M16-BRA | M16 | Brass | 13.00mm | 2.00mm | 24.0mm | DIN 934 |
Checking...
|
|
| HN934-M2-BRA | M2 | Brass | 1.60mm | 0.40mm | 4.0mm | DIN 934 |
Checking...
|
|
| HN934-M2.5-BRA | M2.5 | Brass | 2.00mm | 0.45mm | 5.0mm | DIN 934 |
Checking...
|
|
| HN934-M20-BRA | M20 | Brass | 16.00mm | 2.50mm | 30.0mm | DIN 934 |
Checking...
|
|
| HN934-M3-BRA | M3 | Brass | 2.40mm | 0.50mm | 5.5mm | DIN 934 |
Checking...
|
|
| HN934-M3.5-BRA | M3.5 | Brass | 2.80mm | 0.60mm | 6.0mm | DIN 934 |
Checking...
|
|
| HN934-M4-BRA | M4 | Brass | 3.20mm | 0.70mm | 7.0mm | DIN 934 |
Checking...
|
|
| HN934-M5-BRA | M5 | Brass | 4.00mm | 0.80mm | 8.0mm | DIN 934 |
Checking...
|
|
| HN934-M6-BRA | M6 | Brass | 5.00mm | 1.00mm | 10.0mm | DIN 934 |
Checking...
|
|
| HN934-M8-BRA | M8 | Brass | 6.50mm | 1.25mm | 13.0mm | DIN 934 |
Checking...
|
|
