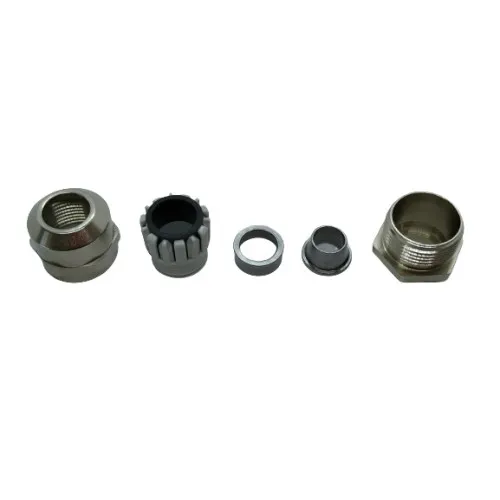

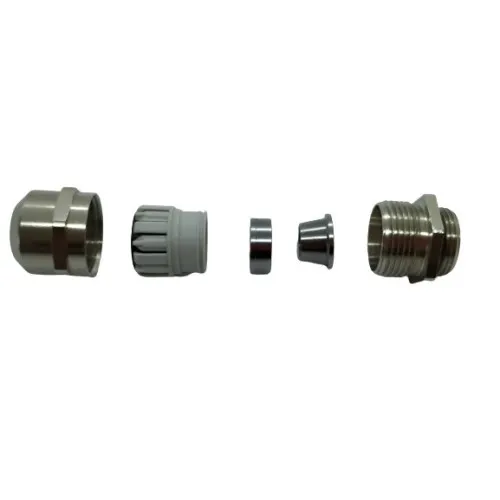

M20 EMC Cable Gland - Brass with Earthing Cone
Product code:
CBG502
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 2 - 24 | £9.63 | £11.56 |
| 25 - 49 | £7.16 | £8.59 |
| 50 - 99 | £7.16 | £8.59 |
| 100 + | £5.94 | £7.13 |
£11.56
/ each
Quantity:

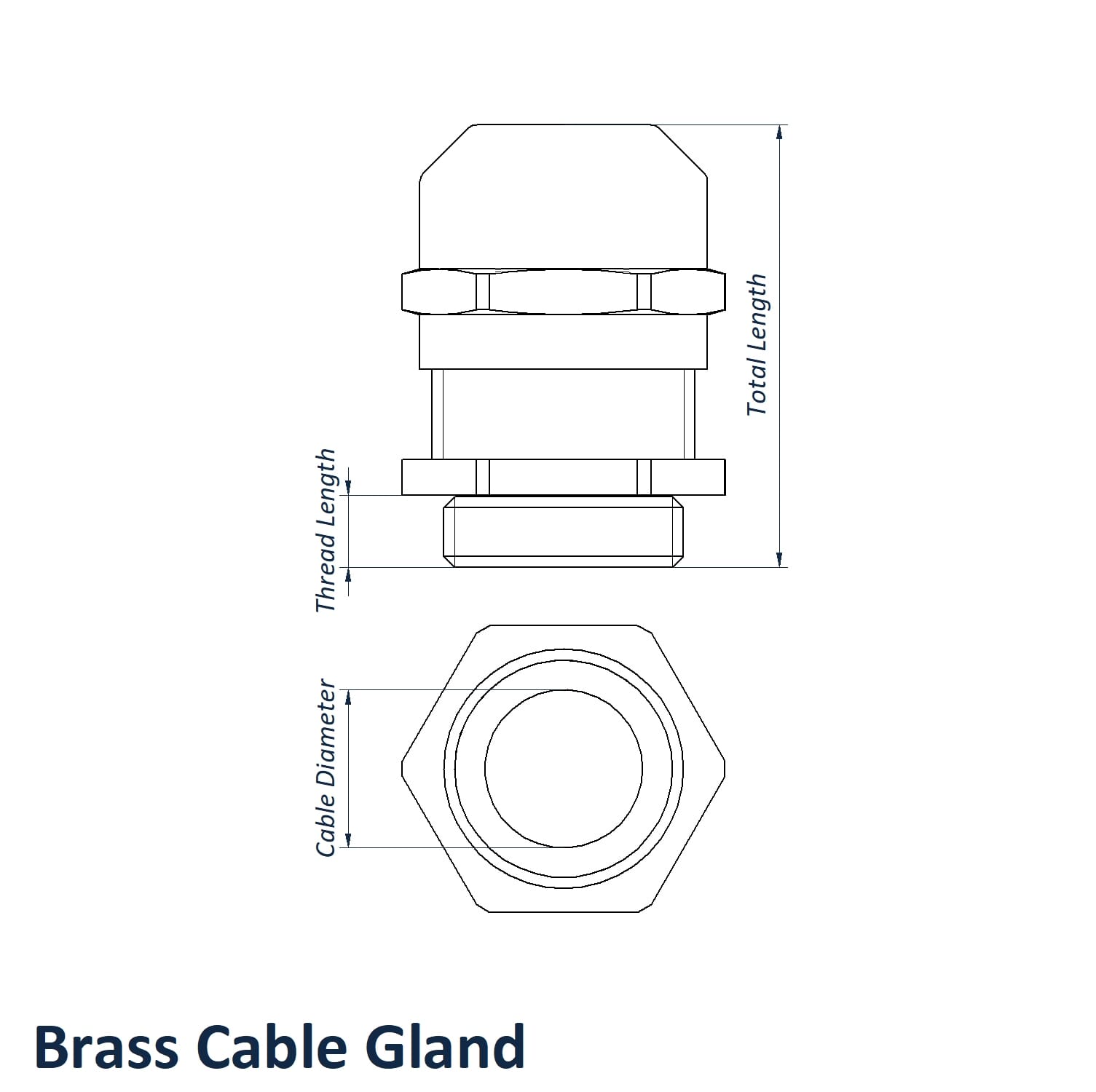

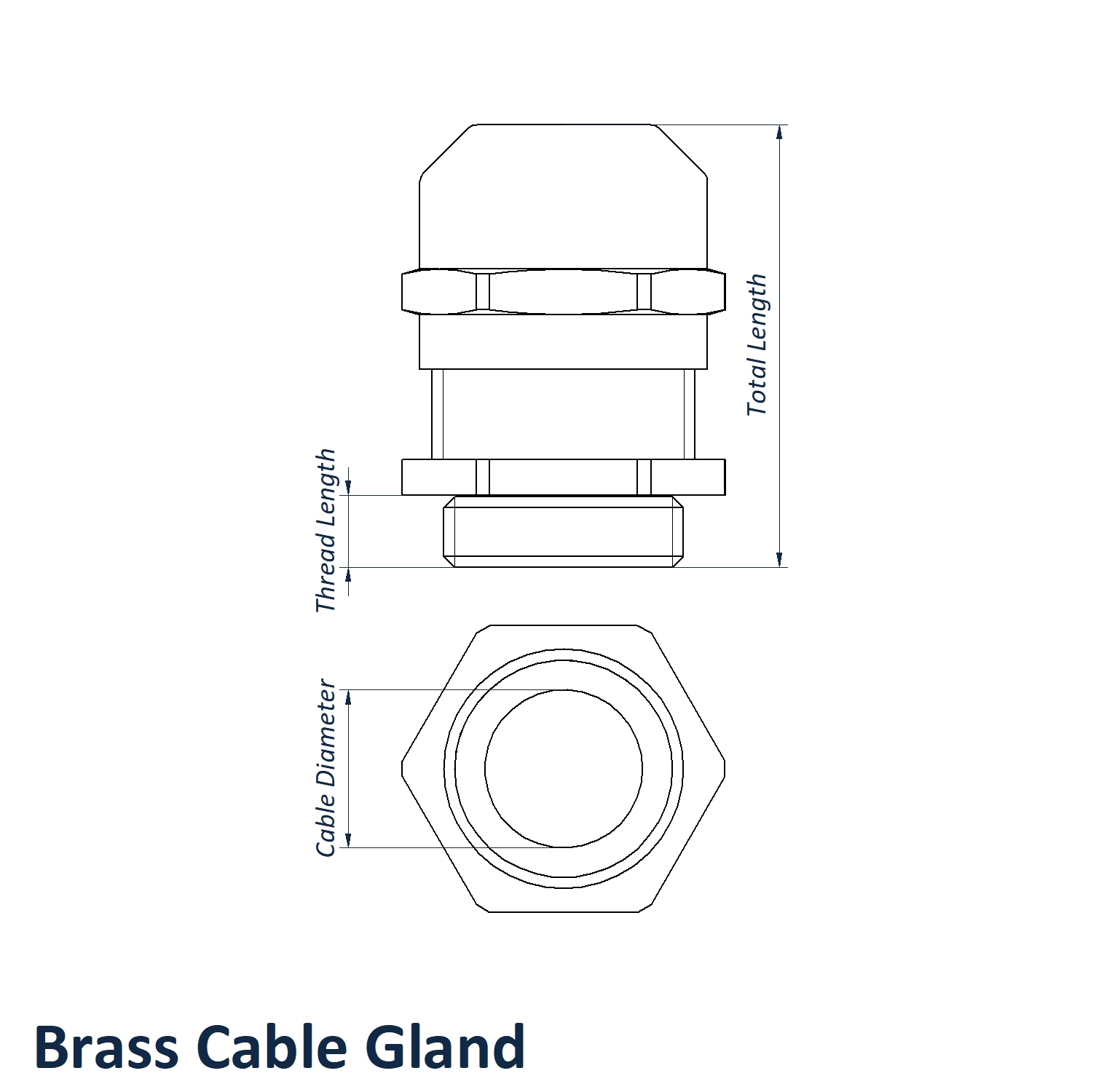

Product Specification
| Thread | M20 x 1.5mm |
| Cable Diameter | 6.0-13.0mm |
| Thread Length | 6 mm |
| Total Length | 29-37mm |
| Style | Earthing Cone |
| Colour | Silver |
| Material | Nickel Plated Brass |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
This M20 x 1.5 Nickel Plated Brass EMC gland is for isolating items from electromagnetic interference or RFI. They are designed to work with SY and shielded cables.
This gland comes with in a Earthing Cone style.
Here are some of the key features of our brass EMC cable glands.
• Suitable for a temperature range of -40 °C to 100 °C
• Approved to the following standards:
o VDE
o UL recognised
• Provides seal to IP69 / IP68 (5 bar 30 min)
• Made from Nickel plated brass, a nylon clamping clamp and EDPM rubber seals.
o Earthing cones – Nickel Plated Brass
o Contact Springs – Stainless Steel
The matching locknut should you require it is CBG272
