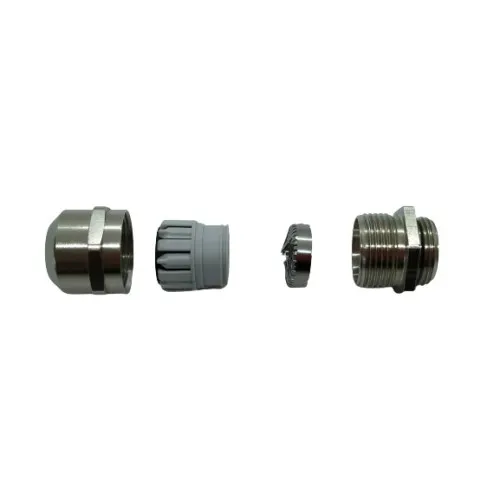

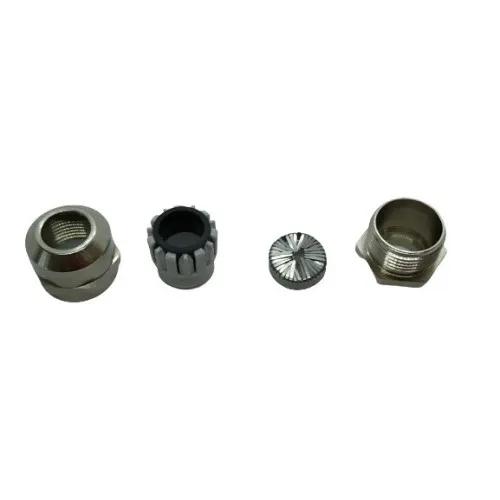

M12 EMC Cable Gland - Brass with Contact Spring
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 2 - 9 | £7.83 | £9.40 |
| 10 - 49 | £6.81 | £8.17 |
| 50 - 99 | £5.82 | £6.98 |
| 100 + | £4.83 | £5.79 |
Product Stock

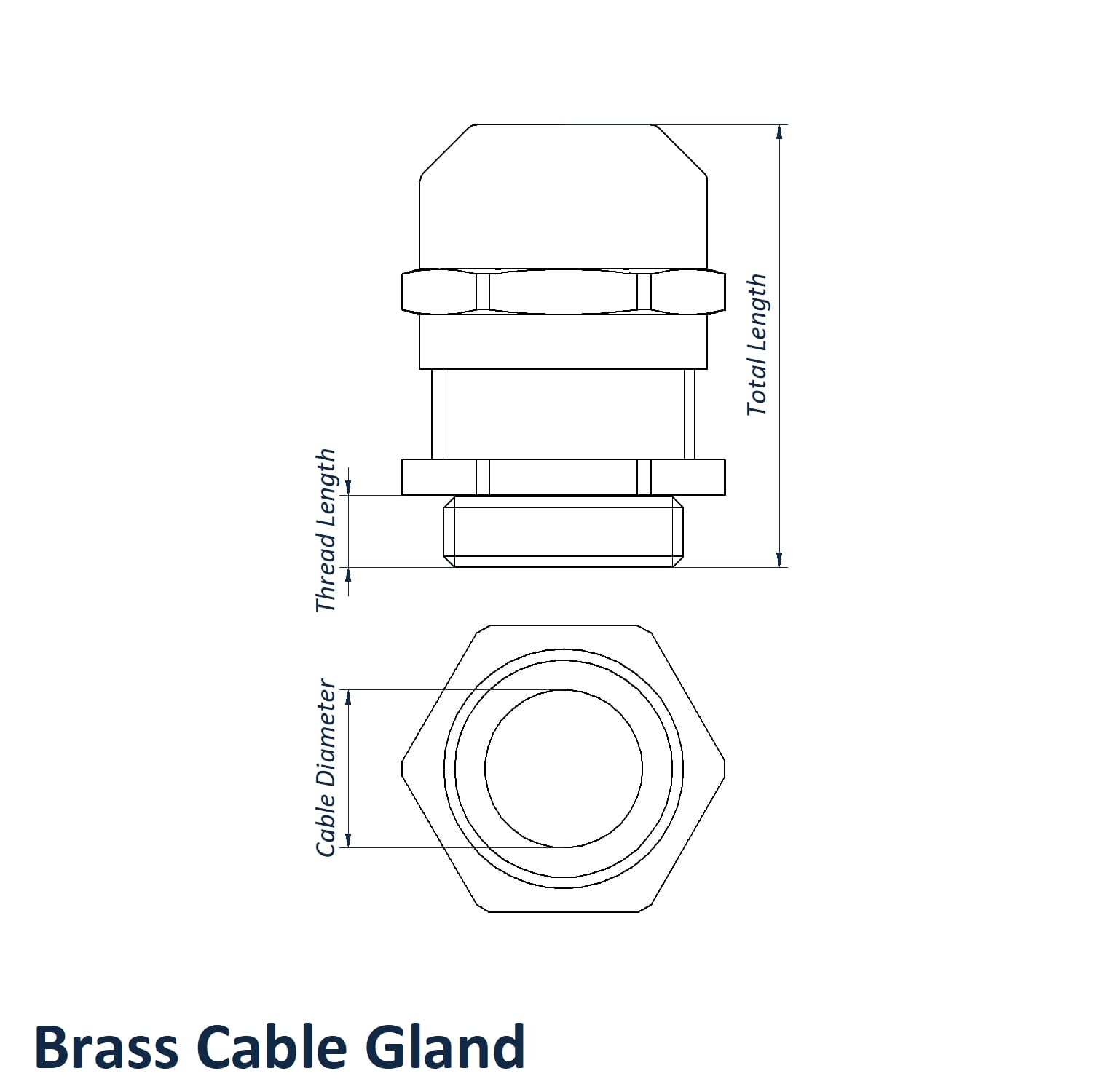

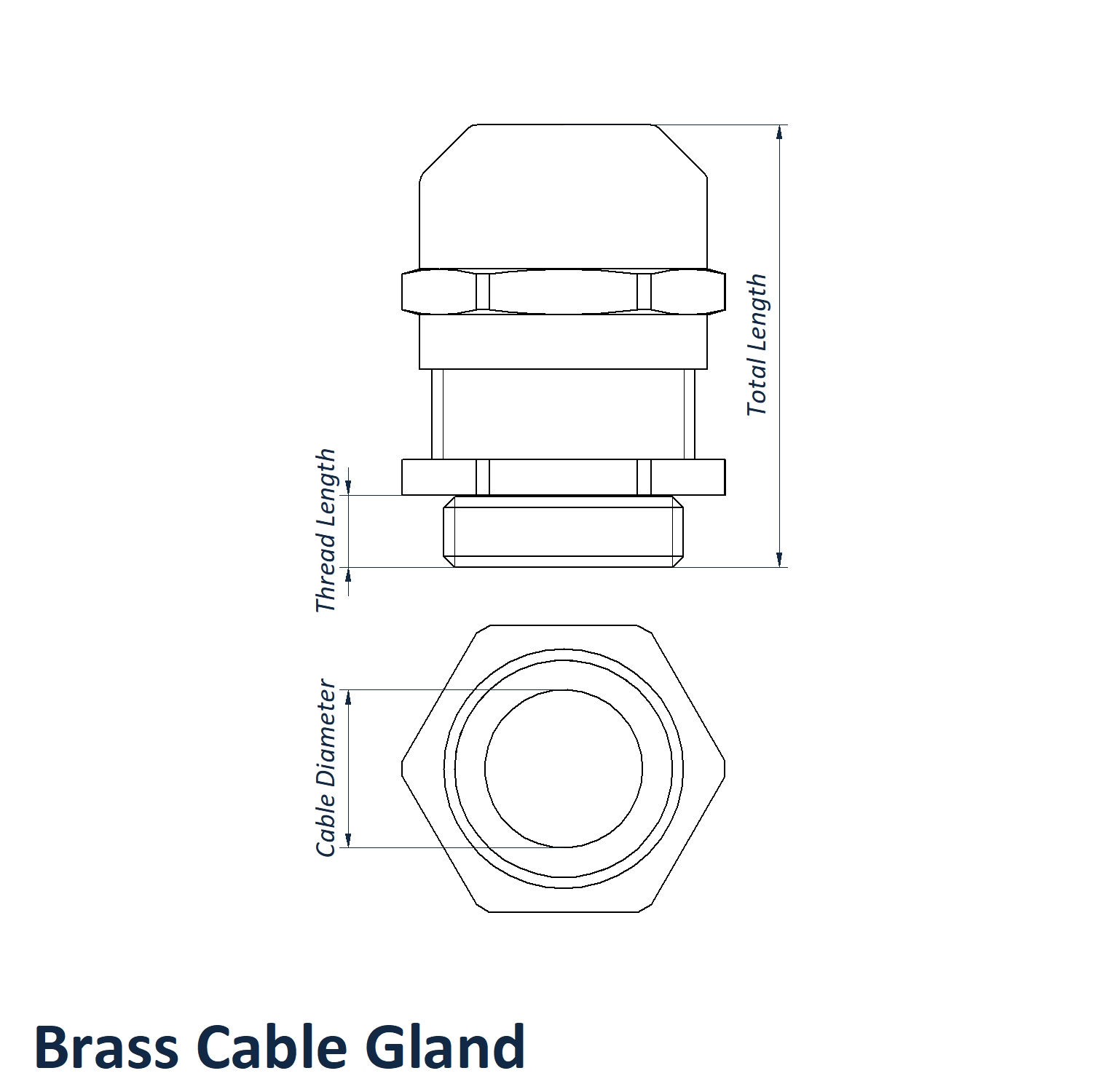

| Product Specifications | CBG520 |
|---|---|
| Thread | M12 x 1.5mm |
| Cable Diameter | 3.0-7.0mm |
| Thread Length | 5 mm |
| Total Length | 23-30mm |
| Style | Contact Spring |
| Colour | Silver |
| Material | Nickel Plated Brass |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description
This M12 x 1.5 Nickel Plated Brass EMC gland is for isolating items from electromagnetic interference or RFI. They are designed to work with SY and shielded cables.
This gland comes with in a Contact Spring style.
Here are some of the key features of our brass EMC cable glands.
• Suitable for a temperature range of -40 °C to 100 °C
• Approved to the following standards:
o VDE
o UL recognised
• Provides seal to IP69 / IP68 (5 bar 30 min)
• Made from Nickel plated brass, a nylon clamping clamp and EDPM rubber seals.
o Earthing cones – Nickel Plated Brass
o Contact Springs – Stainless Steel
The matching locknut should you require it is CBG270
