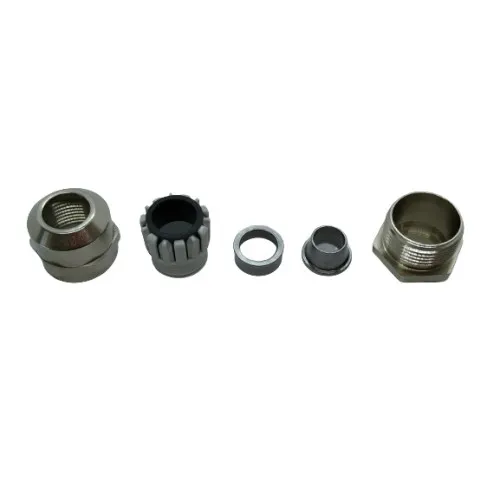

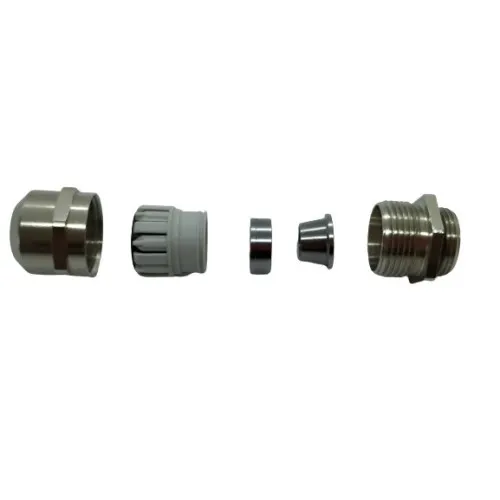

M25 EMC Cable Gland - Brass with Earthing Cone
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 2 - 24 | £13.26 | £15.91 |
| 25 - 49 | £9.86 | £11.83 |
| 50 - 99 | £9.86 | £11.83 |
| 100 + | £8.18 | £9.81 |
Product Stock

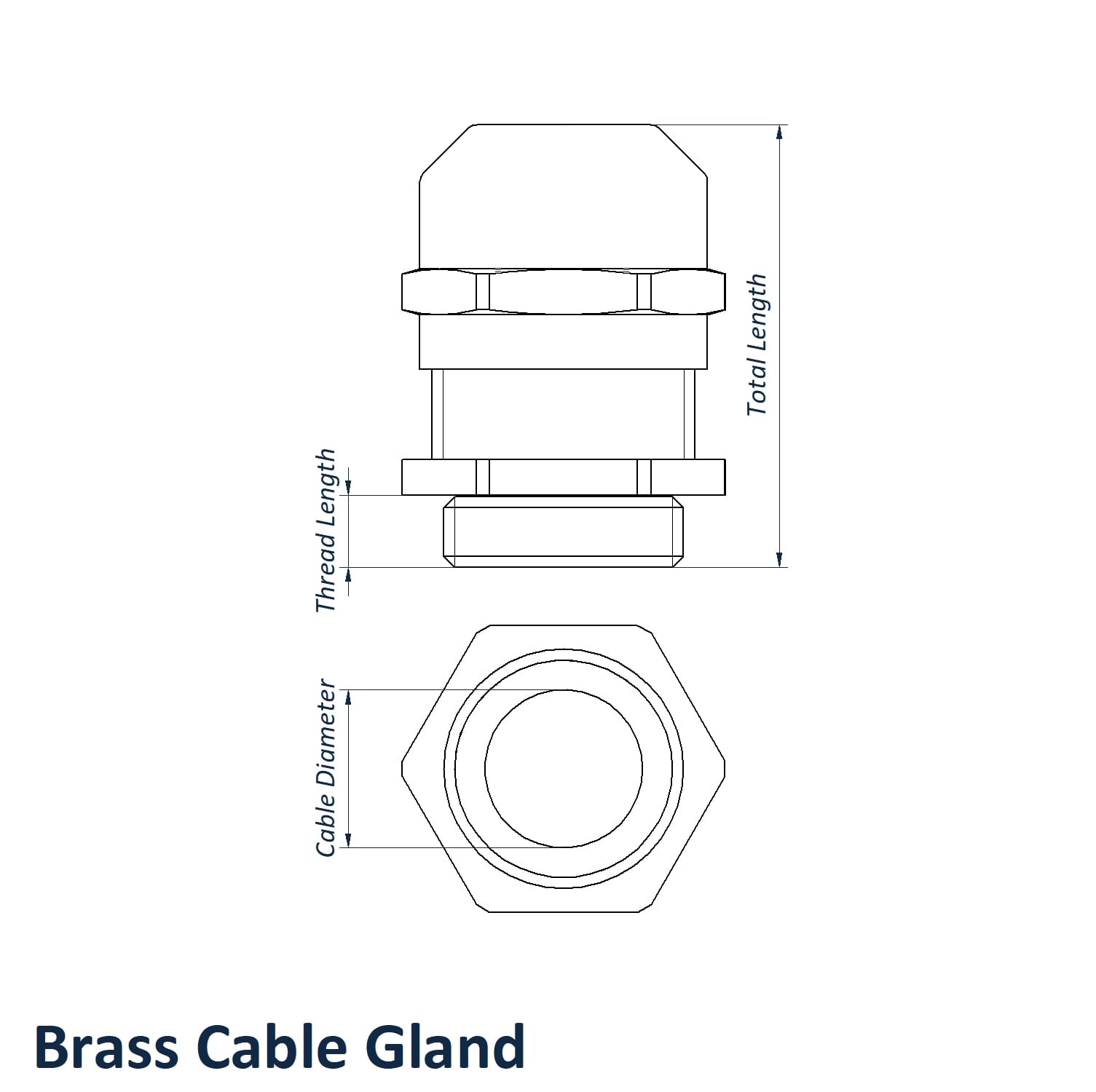

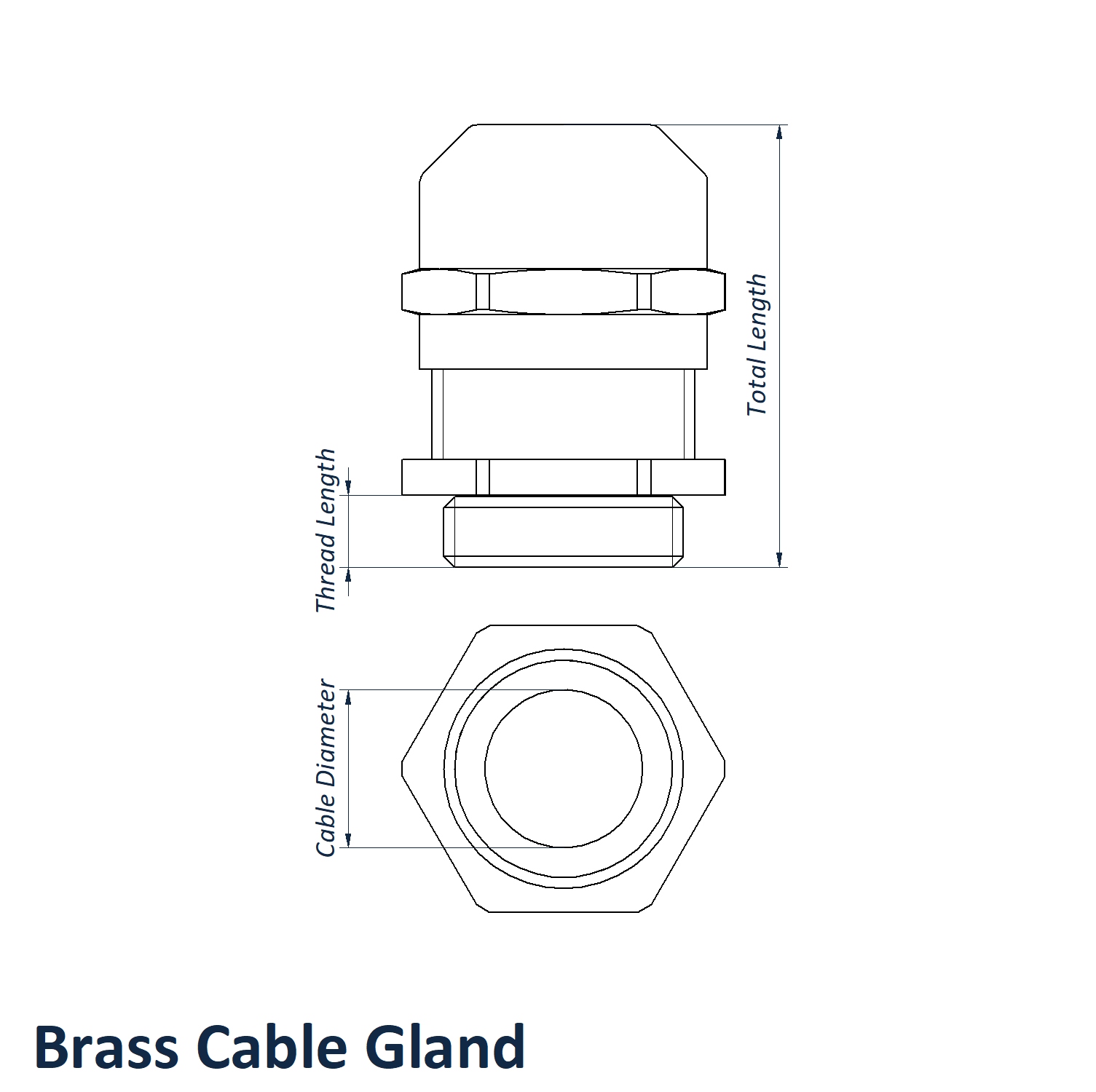

| Product Specifications | CBG503 |
|---|---|
| Thread | M25 x 1.5mm |
| Cable Diameter | 9.0-17.0mm |
| Thread Length | 7 mm |
| Total Length | 33-42mm |
| Style | Earthing Cone |
| Colour | Silver |
| Material | Nickel Plated Brass |
Same Day Dispatch Available
Order by 4pm (UK) for same day dispatch (Monday – Thursday, 2pm Friday). Next Day or Standard Delivery available via DHL or Royal Mail.
Frequently Bought Together
Total Price: £0.00
Product Description
This M25 x 1.5 Nickel Plated Brass EMC gland is for isolating items from electromagnetic interference or RFI. They are designed to work with SY and shielded cables.
This gland comes with in a Earthing Cone style.
Here are some of the key features of our brass EMC cable glands.
• Suitable for a temperature range of -40 °C to 100 °C
• Approved to the following standards:
o VDE
o UL recognised
• Provides seal to IP69 / IP68 (5 bar 30 min)
• Made from Nickel plated brass, a nylon clamping clamp and EDPM rubber seals.
o Earthing cones – Nickel Plated Brass
o Contact Springs – Stainless Steel

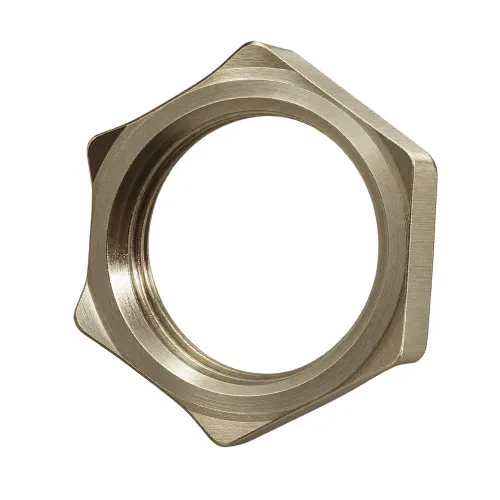

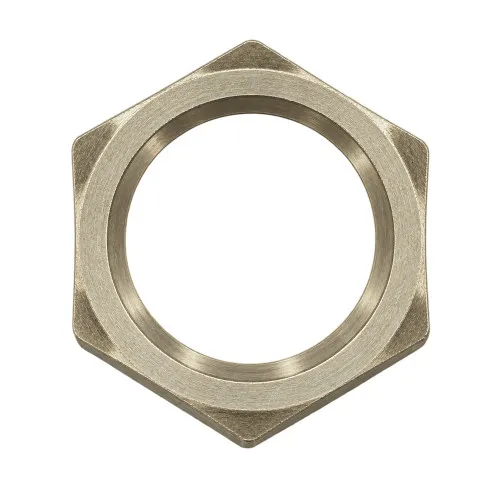

The matching locknut should you require it is CBG273
