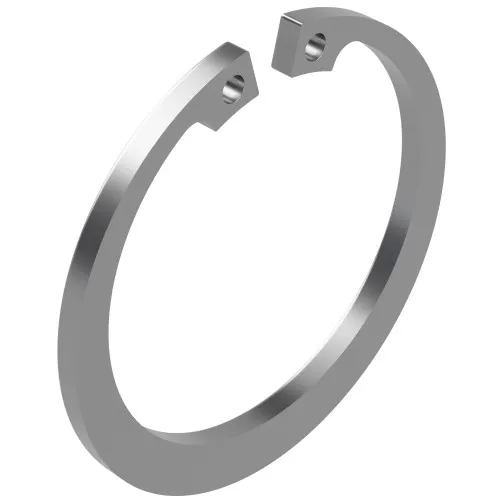

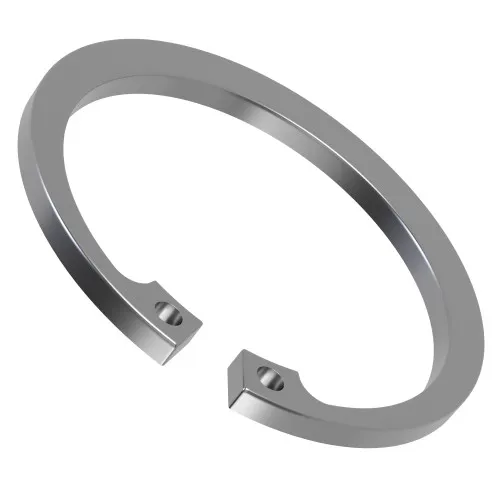

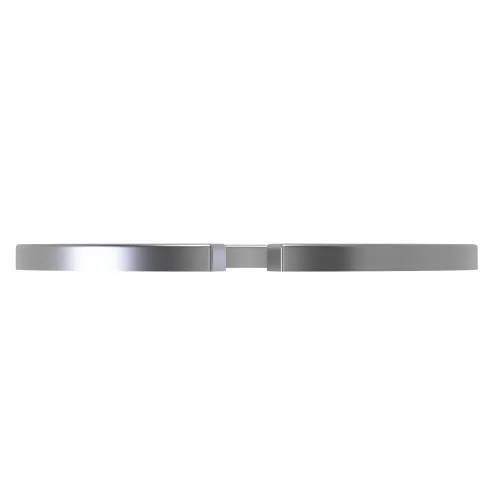

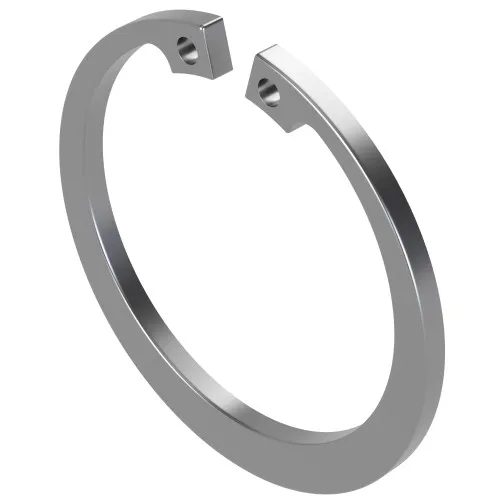

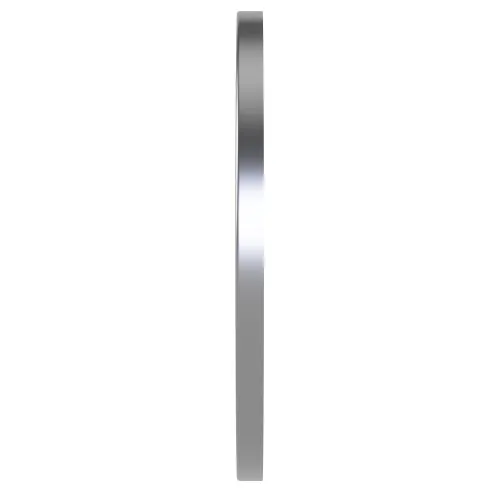

100mm Internal Circlip DIN 472 | 1.4122 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £22.22 | £26.66 |
| 10 - 24 | £16.66 | £19.99 |
| 25 - 49 | £14.44 | £17.33 |
| 50 - 99 | £13.32 | £15.99 |
| 100 + | £12.22 | £14.66 |
£26.66 / each
.png)
Product Specification
| For Bore Diameter | 100mm |
| Tang Height | 9.2mm |
| Outside Diameter | 105.5mm |
| Thickness | 3.00mm |
| Material | 1.4122 Stainless Steel |
| Standard | DIN 472 |
Frequently Bought Together
Total Price: £0.00
100mm Internal Circlip, 105.5mm OD, DIN 472, A2 Stainless
Manufactured to DIN 472, the 100mm Retaining Ring for Bores is used where components need to be held inside a 100mm housing without relying on threaded fasteners.
A raised tang profile gives circlip pliers a clear contact point, making fitting and removal more controlled during servicing. It offers a removable alternative to shoulder plates, pins and other secondary retention methods.
Fitting and Use
For replacement work, the bore diameter and outside diameter should be checked against the existing groove. This helps prevent loose fitment or overstressing during installation.
Common Applications
- Retaining internal components in control equipment
- Industrial fan and pulley assemblies
- Precision engineering component location
- Gear case component retention

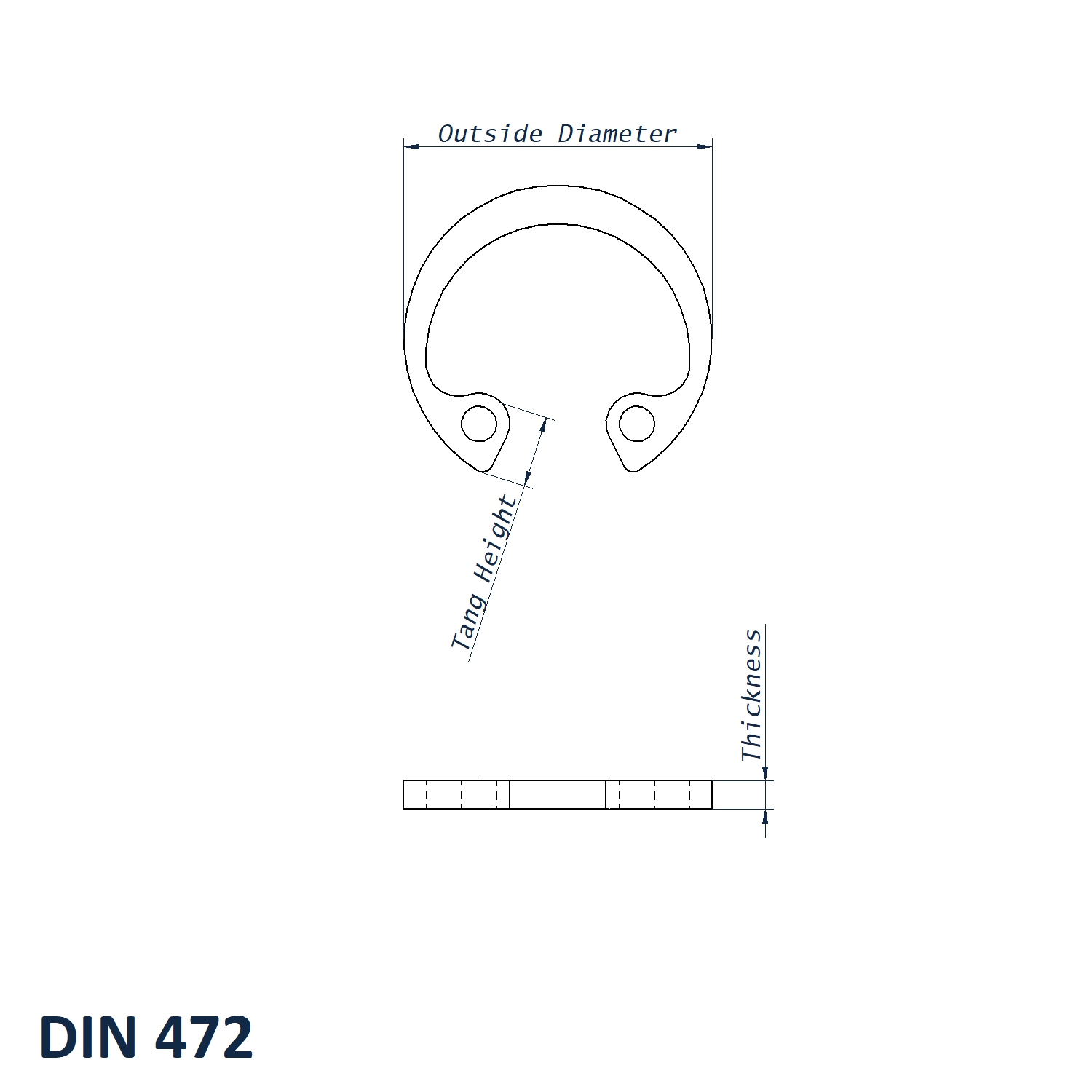

100mm Internal Circlip DIN 472 Dimensions
- For Bore Diameter: 100mm
- Tang Height: 9.2mm
- Outside Diameter: 105.5mm
- Thickness: 3mm
- Material: A2 Stainless Steel
- Standard: DIN 472
View our full Internal Circlips DIN 472 range.
