4.2mm x 60mm Torx Pan Self Drilling Screw DIN 7504MT | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 500 - 1999 | £0.57 | £0.68 |
| 2000 - 4999 | £0.41 | £0.49 |
| 5000 + | £0.32 | £0.38 |
£0.68 / each
Product Specification
| Thread Size | 4.2mm |
| Thread Length | 60mm |
| Drive | TX20 |
| Head Diameter | 8.0mm |
| Head Height | 3.1mm |
| Material | A2 Stainless Steel |
| Standard | DIN 7504MT |
Frequently Bought Together
Total Price: £0.00

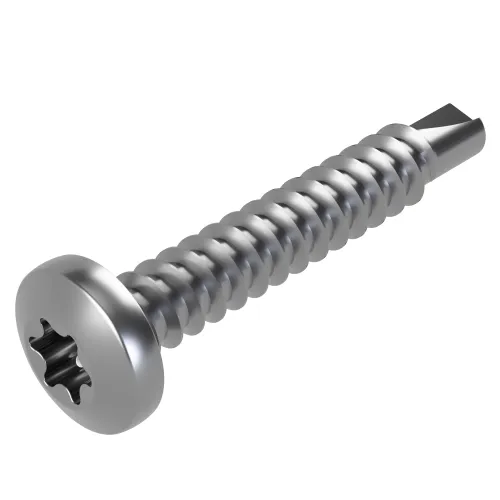

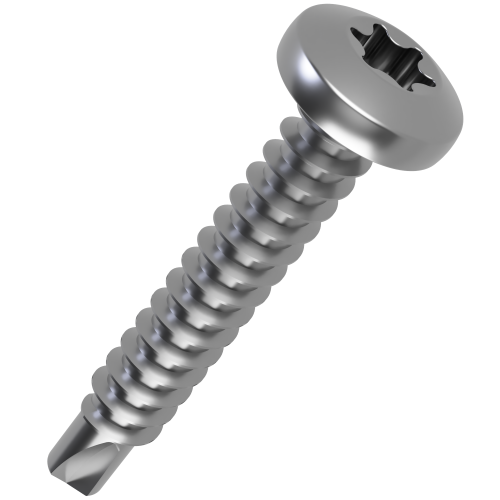

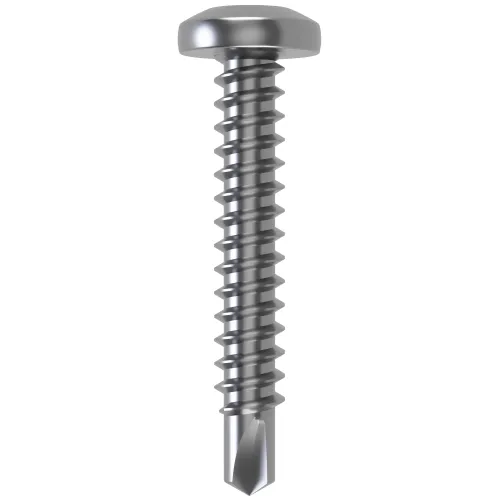

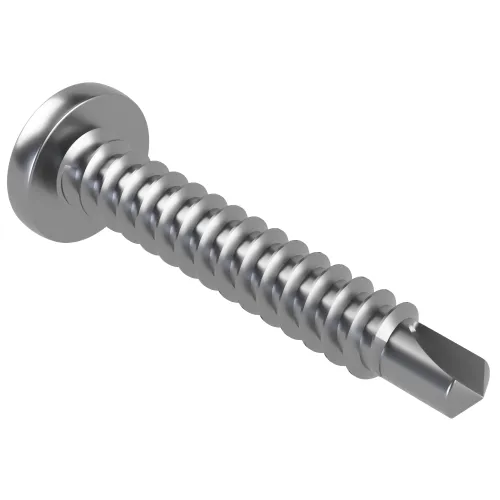

4.2mm x 60mm Torx Pan Head Self Drilling Screw | DIN 7504MT | A2 Stainless Steel
Designed for general construction brackets and metal framing accessories, this 4.2mm x 60mm pan head self drilling screw combines an integrated drill point with a self-tapping thread. The rounded pan head gives a neat installed finish while its flat underside provides a broad bearing surface against the fixed component. The A2 Stainless Steel construction provides good corrosion resistance for general engineering, fabrication and suitable exposed applications.
What Are Pan Head Self Drilling Screws?
Pan Head Tek Screws are self drilling fasteners commonly used for metal-to-metal fixing. Their integrated drill point can remove separate drilling and tapping stages in many suitable applications while the drive recess allows installation with a compatible manual or powered driver. DIN 7504MT specifies a pan head self drilling screw with a Torx or hexalobular recess.
Common Applications
- Automotive and Transport: Secures compatible trim panels, brackets, housings and lightweight fabricated components.
- General Construction: Fastens suitable metal framing accessories, brackets, fixtures and sheet-metal components.
- Control Panels: Provides a quick fixing for covers, mounting plates and internal hardware on compatible metal panels.
- Workshop Fabrication: Supports repairs, prototype work and general assembly where self drilling into suitable metal is useful.
4.2mm x 60mm DIN 7504MT Pan Head Self Drilling Screw Dimensions
- Thread Size: 4.2mm
- Thread Length: 60mm
- Head Height: 3.1mm
- Head Diameter: 8.0mm
- Drive: TX20
- Standard: DIN 7504MT
- Material: A2 Stainless Steel
Key Benefits
- 4.2mm thread diameter with 60mm thread length provides the main screw dimensions.
- 8.0mm head diameter provides the bearing width beneath the rounded head.
- A2 Stainless Steel construction provides the specified material and finish for the application.
- Self-tapping thread forms a mating thread as the screw is installed into compatible material.
Compare more sizes in our Pan Head Self Drilling Screws range. Check out our wider Self Drilling Screws range for other self-drilling and self-threading screw styles. If you are unsure which standard or drive suits your application, contact our team on 01233 713581.
