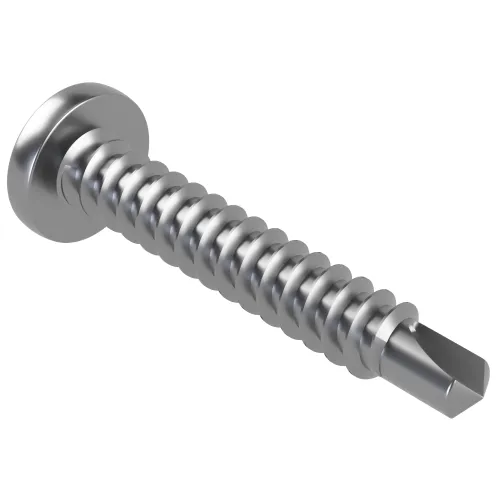

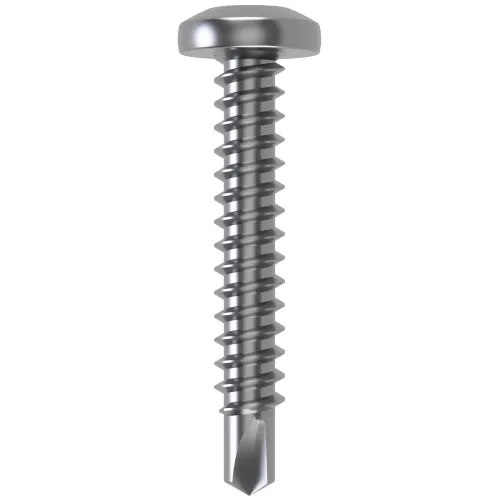

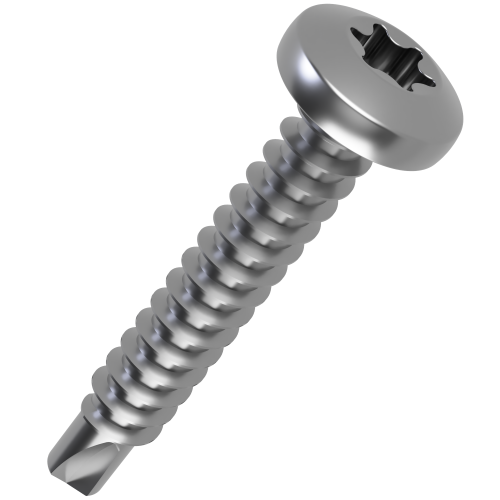

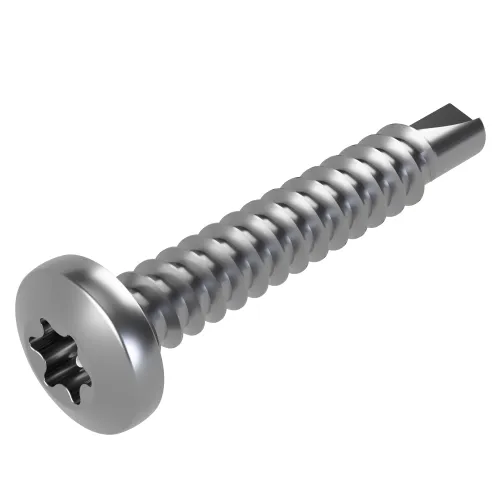

4.8mm x 45mm Torx Pan Self Drilling Screw DIN 7504MT | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 500 - 1999 | £0.19 | £0.23 |
| 2000 - 4999 | £0.14 | £0.17 |
| 5000 + | £0.11 | £0.13 |
£0.23 / each
.png)
Product Specification
| Thread Size | 4.8mm |
| Thread Length | 45mm |
| Drive | TX25 |
| Head Diameter | 9.5mm |
| Head Height | 3.7mm |
| Material | A2 Stainless Steel |
| Standard | DIN 7504MT |
Frequently Bought Together
Total Price: £0.00
4.8mm x 45mm Torx Pan Head Self Drilling Screw | DIN 7504MT | A2 Stainless Steel
For automotive trim, brackets and lightweight fabricated components, this 4.8mm x 45mm Torx self drilling screw can cut through compatible sheet metal before its thread engages the receiving material. This allows drilling and fastening to be completed with one fastener in many suitable assemblies. The A2 Stainless Steel construction provides good corrosion resistance for general engineering, fabrication and suitable exposed applications.
What Are Pan Head Self Drilling Screws?
Self Drilling Screws use a hardened drill-shaped point to penetrate suitable metal before the screw thread engages. Pan head versions are useful where a visible low-profile head and good clamping area are preferred over a countersunk finish. DIN 7504MT specifies a pan head self drilling screw with a Torx or hexalobular recess.
Common Applications
- Automotive and Transport: Secures compatible trim panels, brackets, housings and lightweight fabricated components.
- General Construction: Fastens suitable metal framing accessories, brackets, fixtures and sheet-metal components.
- Control Panels: Provides a quick fixing for covers, mounting plates and internal hardware on compatible metal panels.
- Workshop Fabrication: Supports repairs, prototype work and general assembly where self drilling into suitable metal is useful.
4.8mm x 45mm DIN 7504MT Pan Head Self Drilling Screw Dimensions
- Thread Size: 4.8mm
- Thread Length: 45mm
- Head Height: 3.7mm
- Head Diameter: 9.5mm
- Drive: TX25
- Standard: DIN 7504MT
- Material: A2 Stainless Steel
Key Benefits
- Self-tapping thread forms a mating thread as the screw is installed into compatible material.
- Rounded pan head creates a neat compact finish where a countersunk recess is not required.
- 9.5mm head diameter provides the bearing width beneath the rounded head.
- DIN 7504MT identifies the standard or drive format for this product.
Compare more sizes in our Pan Head Self Drilling Screws range. You can compare other self-drilling and self-threading screw options in our full Self Drilling Screws collection. If you are unsure which standard or drive suits your application, contact our team on 01233 713581.
