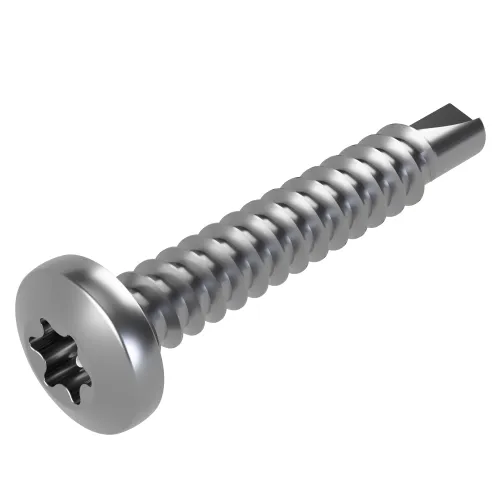

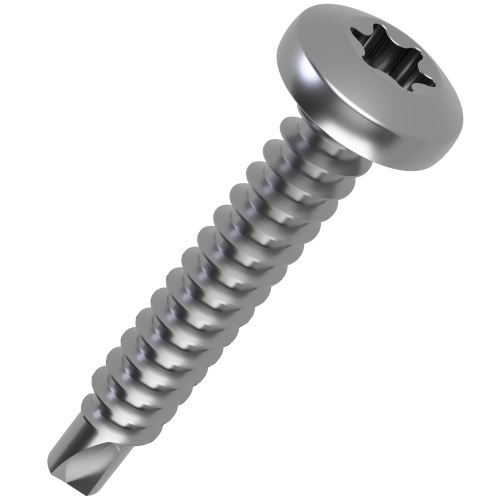

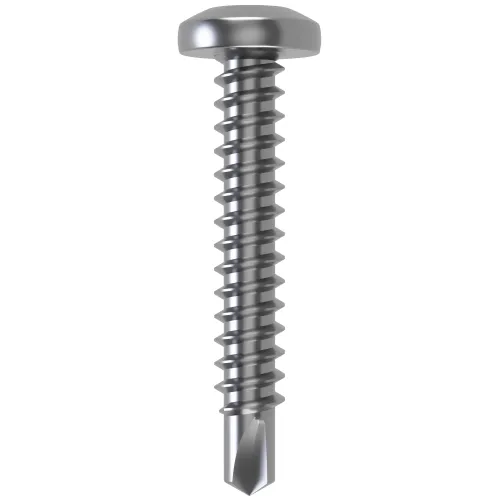

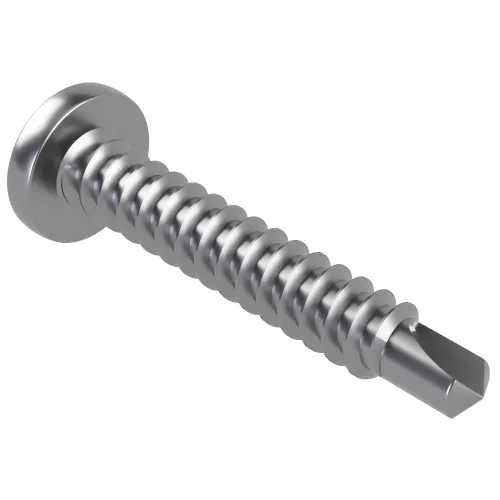

4.8mm x 32mm Torx Pan Self Drilling Screw DIN 7504MT | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 500 - 1999 | £0.12 | £0.15 |
| 2000 - 4999 | £0.09 | £0.11 |
| 5000 + | £0.07 | £0.08 |
£0.15 / each
.png)
Product Specification
| Thread Size | 4.8mm |
| Thread Length | 32mm |
| Drive | TX25 |
| Head Diameter | 9.5mm |
| Head Height | 3.7mm |
| Material | A2 Stainless Steel |
| Standard | DIN 7504MT |
Frequently Bought Together
Total Price: £0.00
4.8mm x 32mm Torx Pan Head Self Drilling Screw | DIN 7504MT | A2 Stainless Steel
This 4.8mm x 32mm Torx pan head self drilling screw is designed to drill, form a mating thread and fasten into compatible metal in one installation process. The hardened drill-shaped point helps reduce the need for a separate pilot hole in suitable sheet metal, brackets, panels and fabricated components. The A2 Stainless Steel construction provides good corrosion resistance for general engineering, fabrication and suitable exposed applications.
What Are Pan Head Self Drilling Screws?
A Pan Head Self Drilling Screw is designed to create its own entry hole and thread in compatible metal. The rounded upper head gives a neat finish while the flat underside provides a broad bearing area for securing panels, brackets and thinner components. DIN 7504MT specifies a pan head self drilling screw with a Torx or hexalobular recess.
Common Applications
- Metal Brackets: Fastens brackets and support fittings to compatible sheet or light-gauge metal sections.
- Equipment Covers: Secures removable covers and access panels where a pan head provides a broad bearing surface.
- Signage and Displays: Provides a neat fixing for suitable metal signs, frames and display components.
- Light Engineering: Supports general non-critical assembly of compatible metal parts and fabricated components.
4.8mm x 32mm DIN 7504MT Pan Head Self Drilling Screw Dimensions
- Thread Size: 4.8mm
- Thread Length: 32mm
- Head Height: 3.7mm
- Head Diameter: 9.5mm
- Drive: TX25
- Standard: DIN 7504MT
- Material: A2 Stainless Steel
Key Benefits
- Rounded pan head creates a neat compact finish where a countersunk recess is not required.
- 3.7mm head height gives the stated pan-head profile.
- DIN 7504MT identifies the standard or drive format for this product.
- Integrated drill point can reduce separate pilot-drilling operations in suitable metal.
See our wider Pan Head Self Drilling Screws category for alternative standards and drive types. For different head shapes and drive options, browse our wider Self Drilling Screws range for more self-drilling and self-threading fasteners. For product-selection support, speak with our team on 01233 713581.
