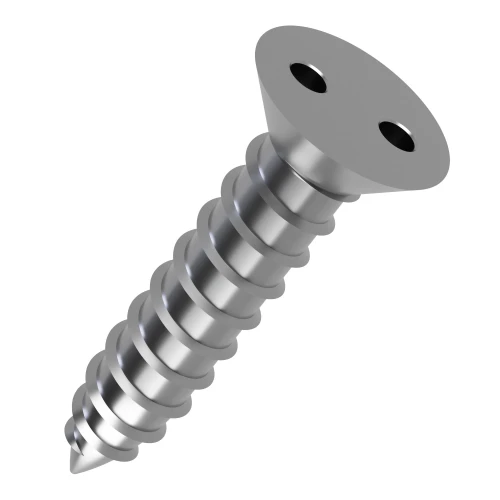

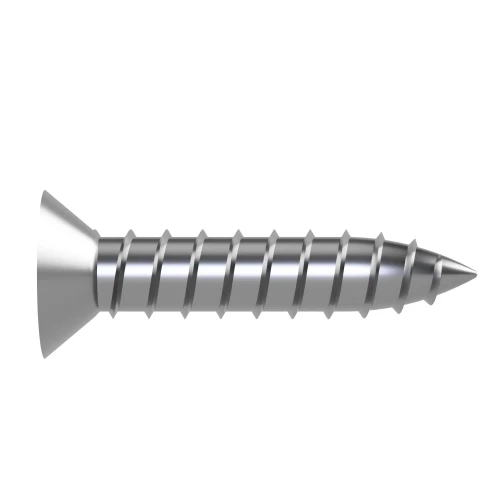

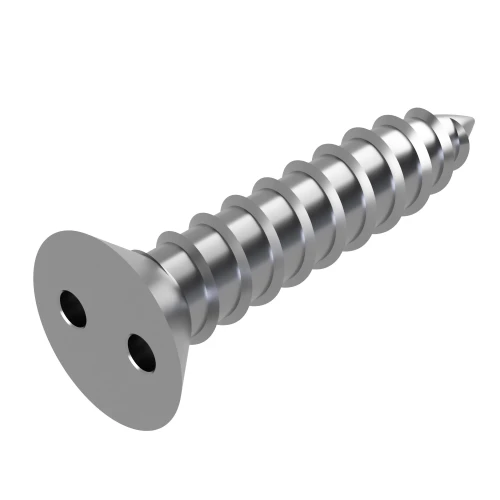

4.8mm x 50mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.02 | £1.22 |
| 100 - 499 | £0.97 | £1.16 |
| 500 - 999 | £0.77 | £0.92 |
| 1000 + | £0.51 | £0.61 |
Product Specification
| Thread Size | 4.8mm |
| Length | 50.0mm |
| Head Diameter | 8.9mm |
| Head Height | 3.00mm |
| End Type | AB |
| Drive Type | Two Hole (Snake Eye) |
| Drive | Security TH6 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
4.8mm x 50mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
Specified where appearance matters, this 4.8mm x 50mm recessed head screw is suited to mounting steel panel inserts with a countersunk recess.
The screw is designed to form its own mating thread and the countersunk head helps the finished assembly remain smooth. A2 stainless steel supports corrosion resistance and consistent performance in site installation work where dependable maintenance fixing is required.
Common Applications
- Mounting equipment covers
- Attaching steel guide plates
- Fixing storage system panels
- Fastening vehicle panels

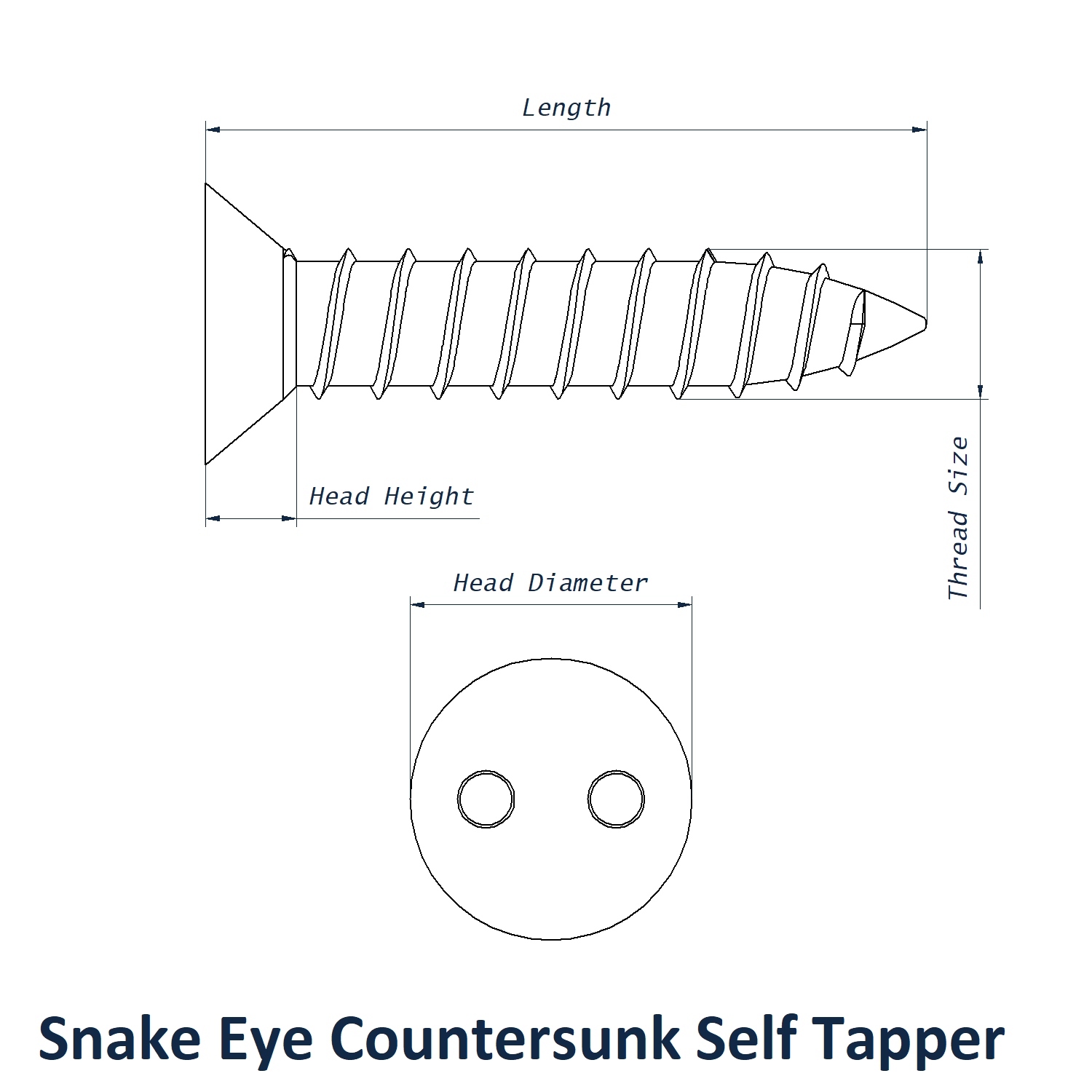

4.8mm x 50mm Snake Eye Countersunk Screw Dimensions
- Thread Size: 4.8mm
- Length: 50mm
- Head Diameter: 8.9mm
- Head Height: 3.00mm
- End Type: AB
- Drive: Security TH6
- Drive Type: Two Hole (Snake Eye)
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
View our full Countersunk Self Tapping Screws Range. Explore more Self Tapping Screws for related fastening options.
