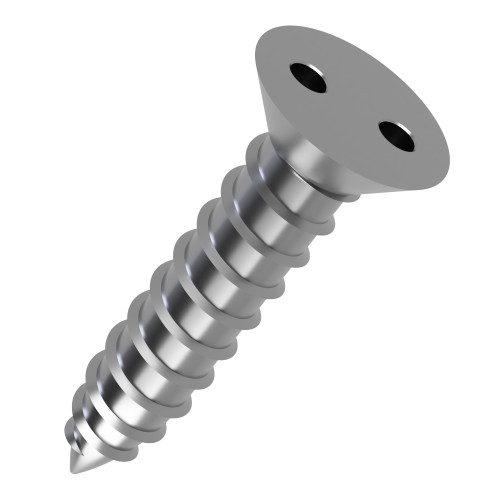

6.3mm x 19mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.31 | £1.57 |
| 100 - 499 | £1.24 | £1.49 |
| 500 - 999 | £0.98 | £1.18 |
| 1000 + | £0.65 | £0.78 |
Product Specification
| Thread Size | 6.3mm |
| Length | 19.0mm |
| Head Diameter | 12.3mm |
| Head Height | 3.90mm |
| End Type | AB |
| Drive Type | Two Hole (Snake Eye) |
| Drive | Security TH8 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
6.3mm x 19mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
Made for vehicle body building maintenance and production tasks, this 6.3mm x 19mm a2 stainless steel countersunk screw is suited to assembling metal cabinets in prepared or compatible materials.
The head geometry is suited to countersunk preparation, helping the fitted screw sit level with the panel face for a tidier result. A2 stainless steel supports corrosion resistance and consistent performance in vehicle body building work where clean surface finishing is required.
Common Applications
- Securing removable maintenance covers
- Fastening aluminium cover panels
- Repairing fabricated housings
- Securing bracketed fixings

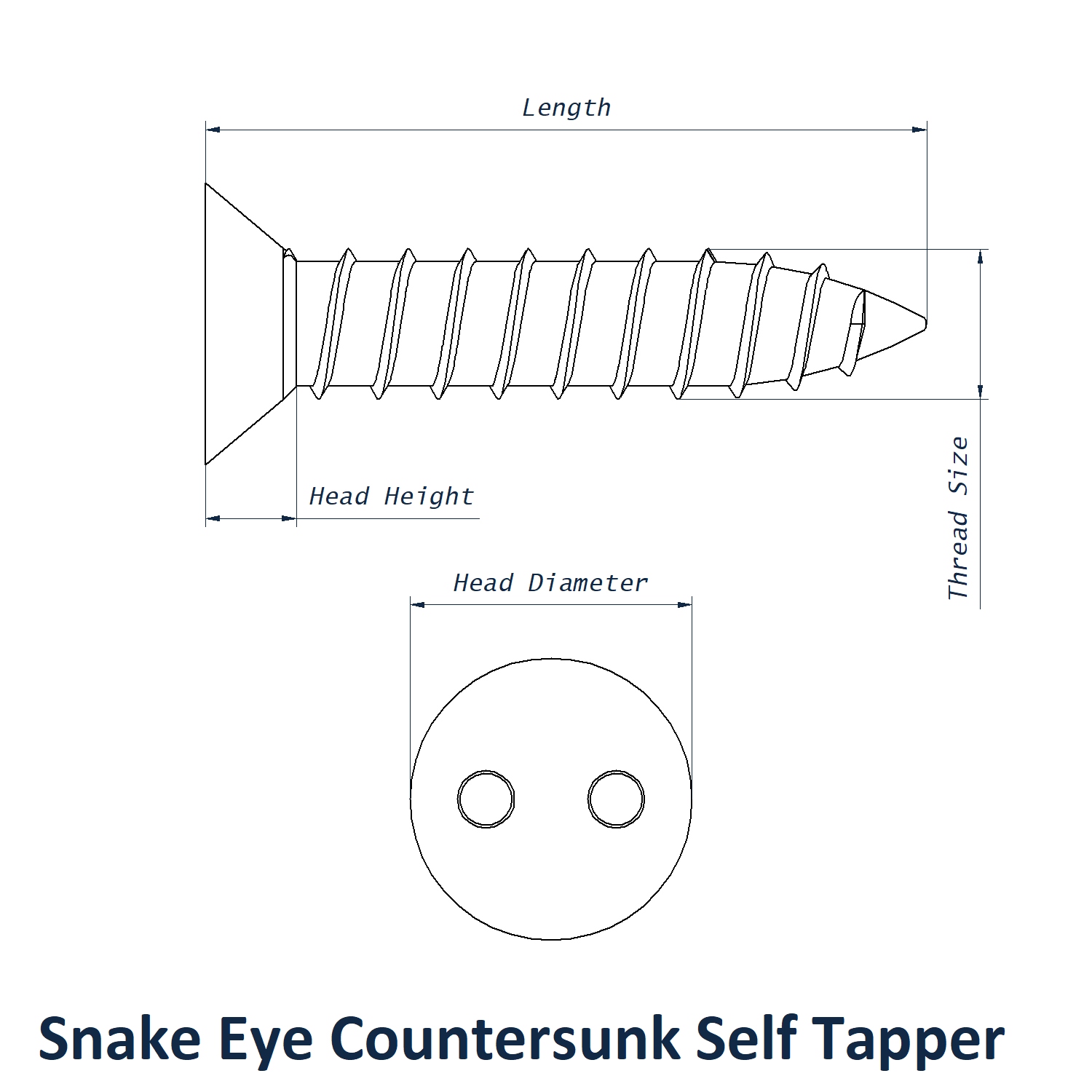

6.3mm x 19mm Snake Eye Countersunk Screw Dimensions
- Thread Size: 6.3mm
- Length: 19mm
- Head Diameter: 12.3mm
- Head Height: 3.90mm
- End Type: AB
- Drive: Security TH8
- Drive Type: Two Hole (Snake Eye)
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
See the complete Countersunk Self Tapping Screws Range and compare further options within Self Tapping Screws.
