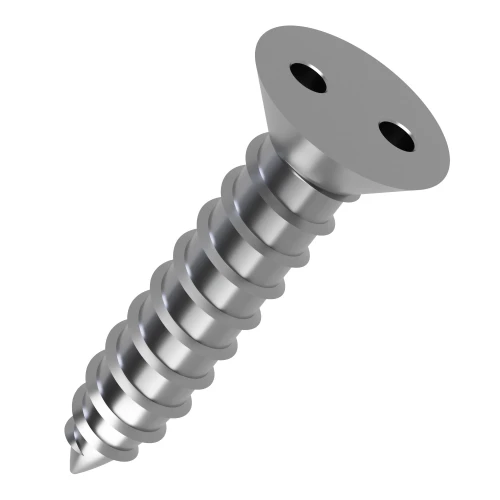

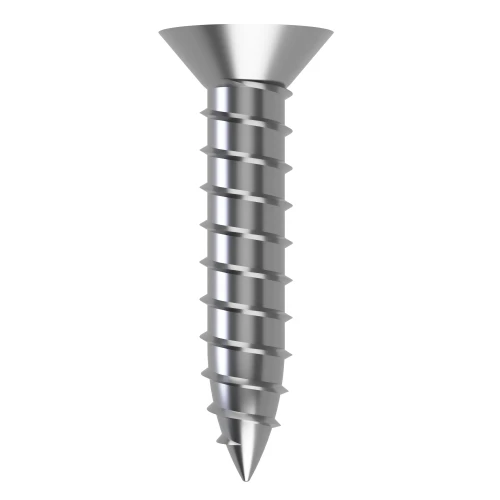

4.8mm x 63mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.12 | £1.34 |
| 100 - 499 | £1.06 | £1.27 |
| 500 - 999 | £0.83 | £1.00 |
| 1000 + | £0.56 | £0.67 |
Product Specification
| Thread Size | 4.8mm |
| Length | 63.0mm |
| Head Diameter | 8.9mm |
| Head Height | 3.00mm |
| End Type | AB |
| Drive Type | Two Hole (Snake Eye) |
| Drive | Security TH6 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
4.8mm x 63mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
Engineered around a 8.9mm countersunk head, this 4.8mm x 63mm countersunk metal screw suits securing access panels where the screw head must sit neatly into the surface.
The self tapping form helps reduce preparation time on compatible materials while the countersunk head supports flush panel presentation. A2 stainless steel supports corrosion resistance and consistent performance in agricultural equipment work where excellent pull-out resistance is required.
Common Applications
- Attaching cable management plates
- Fixing hvac ducting sections
- Securing metal fascia panels
- Fixing removable equipment skins

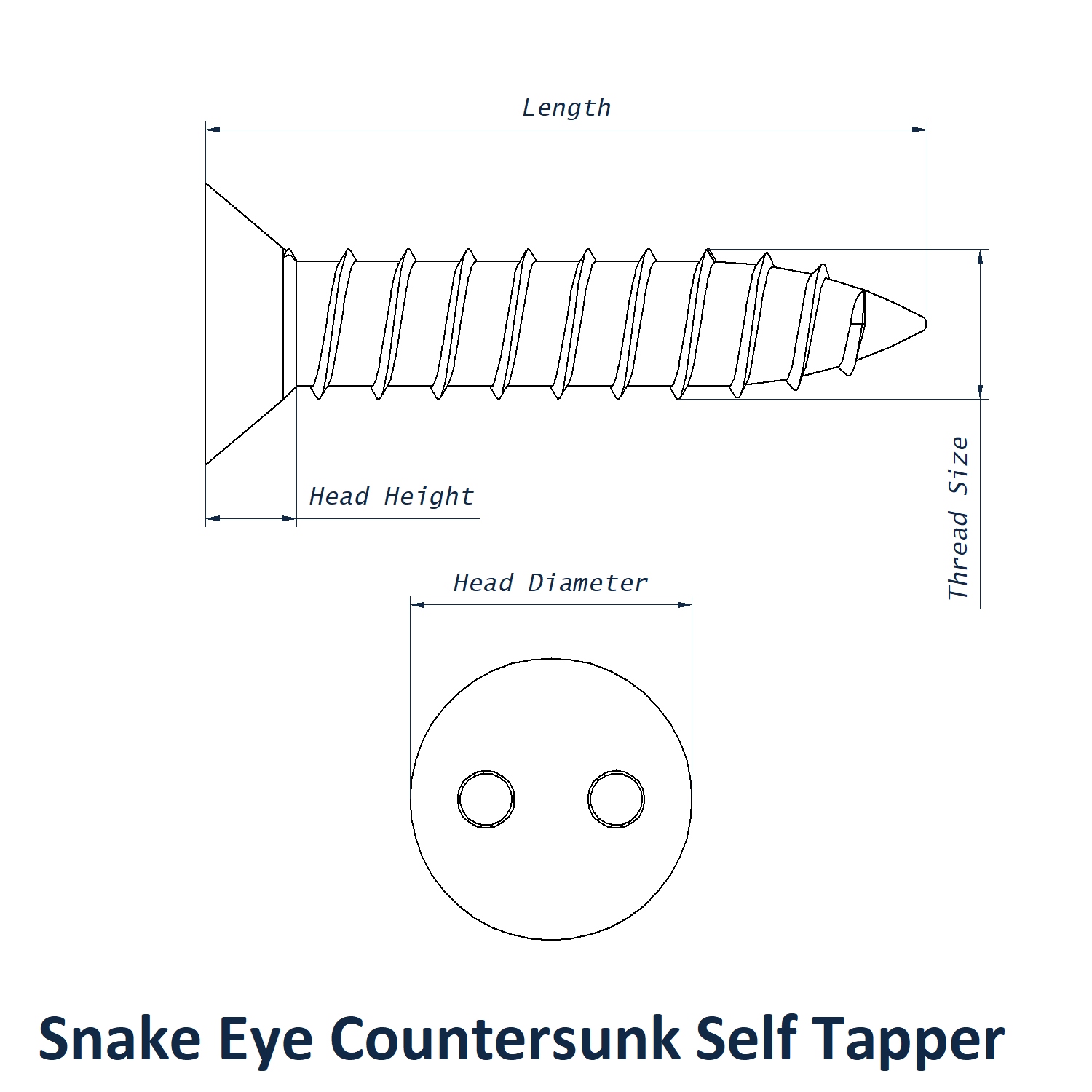

4.8mm x 63mm Snake Eye Countersunk Screw Dimensions
- Thread Size: 4.8mm
- Length: 63mm
- Head Diameter: 8.9mm
- Head Height: 3.00mm
- End Type: AB
- Drive: Security TH6
- Drive Type: Two Hole (Snake Eye)
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
Browse the full Countersunk Self Tapping Screws Range or view our wider Self Tapping Screws collection.
